056 - Front Lights

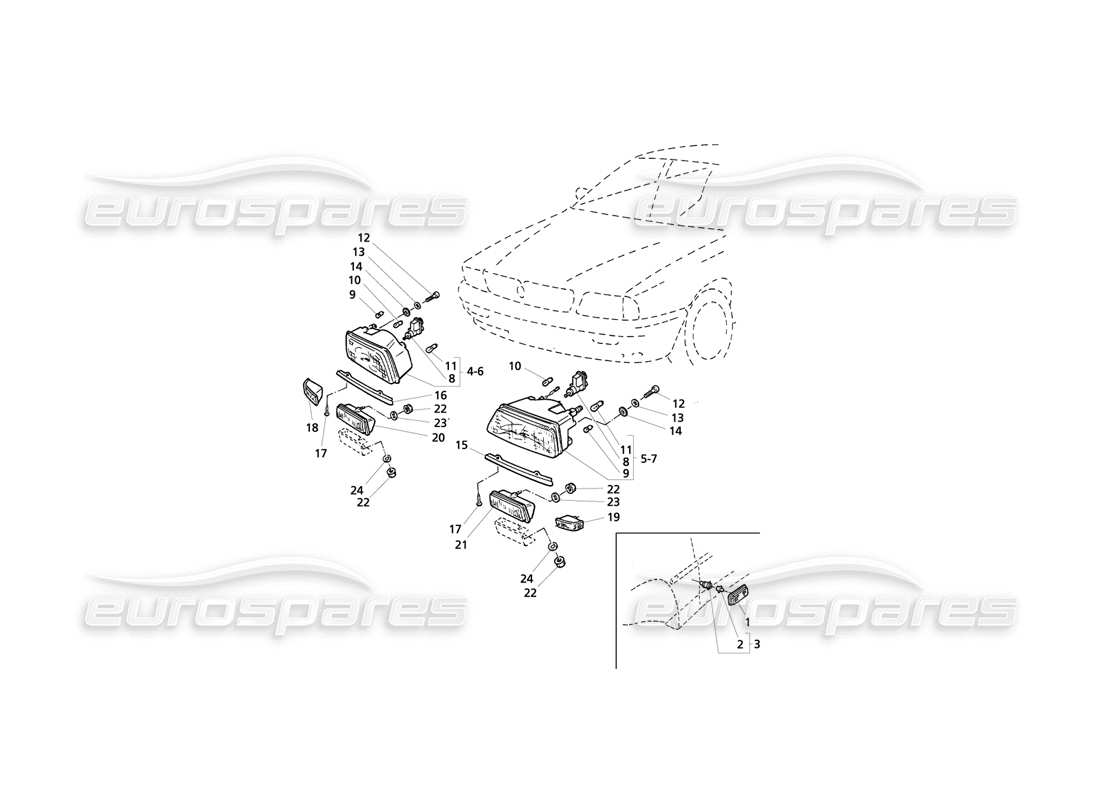

Maserati QTP V8 Evoluzione Front Lights Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 373180127
SIDE DIRECTION INDICATOR
from £48.30
from £48.30
This part replaces part number 363100127
# 002
MPN: 87760005
12V 5W BULB
from £0.64
from £0.64
# 003
MPN: 313152128
BULB HOLDER ASSY
from £1.08
from £1.08
# 004
MPN: 373100100
FRONT RH HEADLAMP ASSY
- LH drive versions
from £820.57
from £820.57
# 005
MPN: 373100101
FRONT LH HEADLAMP ASSY
- LH drive versions
from £820.57
from £820.57
# 006
MPN: 373115100
FRONT RH HEADLAMP ASSY
- RH and Japan drive versions
from £244.46
from £244.46
# 007
MPN: 373115101
FRONT LH HEADLAMP ASSY
- RH and Japan drive versions
from £245.96
from £245.96
# 008
MPN: 373100109
HEADLIGHT BEAM ALIGNMENT ACTUATOR
from £8.44
from £8.44
# 009
-
DIPPED BEAM BULB
# 010
-
MAIN BEAM BULB
# 011
-
SIDE LIGHTS BULB
# 012
MPN: 14071911
SCREW
from £0.47
from £0.47
# 013
MPN: 135600050
INDENTED WASHER
from £0.82
from £0.82
# 014
MPN: 136110055
FLAT WASHER
from £0.77
from £0.77
# 015
MPN: 378300305
LH FINISHER UNDER HEADLAMP
from £4.79
from £4.79
# 016
MPN: 378300306
RH FINISHER UNDER HEADLAMP
from £8.71
from £8.71
# 017
MPN: 119935190
SCREW
from £1.08
from £1.08
# 018
MPN: 373100130
RH DIRECTION INDICATOR ASSY
from £31.07
from £31.07
# 019
MPN: 373100131
LH DIRECTION INDICATOR ASSY
from £291.20
from £291.20
# 020
MPN: 373100114
RH FOGLAMP ASSY
from £44.31
from £44.31
# 021
MPN: 373100115
LH FOGLAMP ASSY
from £24.37
from £24.37
# 022
MPN: 14084111
FLANGED NUT
from £0.52
from £0.52
# 023
MPN: 136110055
WASHER
from £0.77
from £0.77
# 024
MPN: 14496301
WASHER
from £0.88
from £0.88
This part replaces part number 13506724
