![maserati qtp v8 evoluzione heat exchanger pipes rh side parts diagram](/img/CxIAAMTaOW5_bpBlMey69H1JEZQhGoUGua6nueL7BQuqTjgSc6ONHQM%3D/maserati-qtp-v8-evoluzione-part-diagram-015.1.webp)
015.1 - Heat Exchanger Pipes RH Side

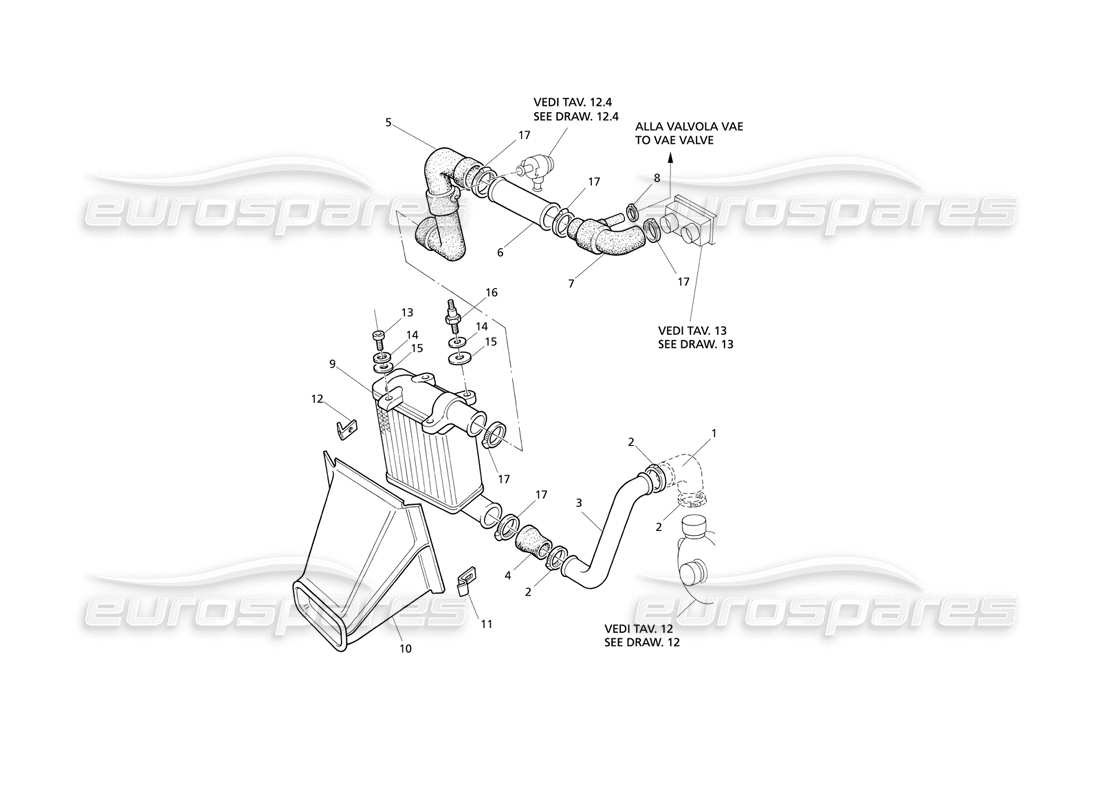

Maserati QTP V8 Evoluzione Heat Exchanger Pipes R.H. Side Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
578363800
SLEEVE
from
£148.93
from
£148.93
This part replaces part number 322460310
- and 1 more. Click to view details
#
002
MPN:
13000790
CLAMP 40X60
from
£0.47
from
£0.47
This part replaces part number 312420106
#
003
MPN:
372090476
METAL PIPE
from
£24.23
from
£24.23
#
004
MPN:
372090477
SLEEVE
from
£56.67
from
£56.67
#
005
MPN:
372090480
RUBBER HOSE
from
£73.86
from
£73.86
#
006
MPN:
372090478
METAL PIPE
from
£5.31
from
£5.31
#
007
MPN:
372030468
THROTTLE BODY CONNECTING SLEEVE
from
£53.01
from
£53.01
#
008
MPN:
374090387
CLAMP 20X32
Supersession
Supersession
#
009
MPN:

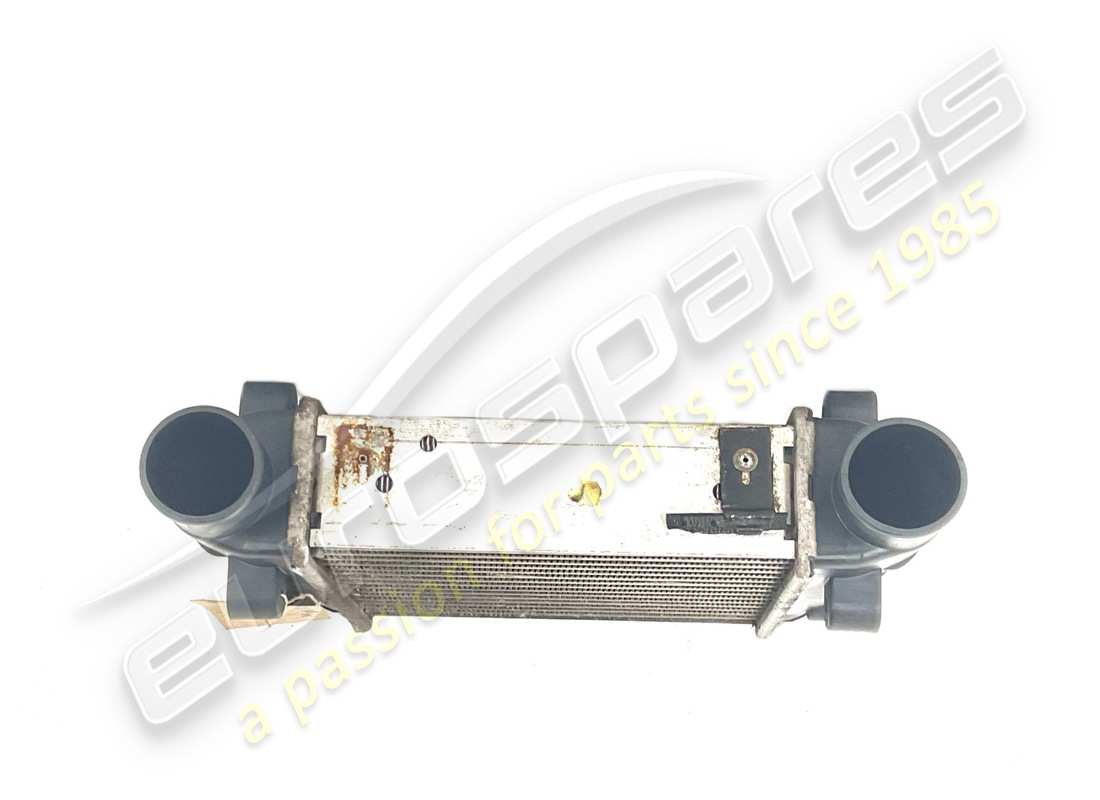

382000140
HEAT EXCHANGER
from
£239.71
from
£239.71
This part replaces part number 382000139
- and 1 more. Click to view details
#
010
MPN:
372090258
AIR DUCT
from
£60.11
from
£60.11
#
011
MPN:
372000610
PLATE
from
£1.64
from
£1.64
#
012
MPN:
372000612
PLATE
from
£1.79
from
£1.79
#
013
MPN:
14306221
ALLEN SCREW
from
£1.44
from
£1.44
#
014
MPN:
12601370
SPRING WASHER
from
£0.86
from
£0.86
#
015
MPN:
12645021
FLAT WASHER
from
£1.64
from
£1.64
#
016
MPN:
372490534
M6 M8 STUD
from
£17.85
from
£17.85
#
017
MPN:
13000890
CLAMP 50X70
from
£0.60
from
£0.60
This part replaces part number 312020136
