055 - Windscreen Wiper and Washer

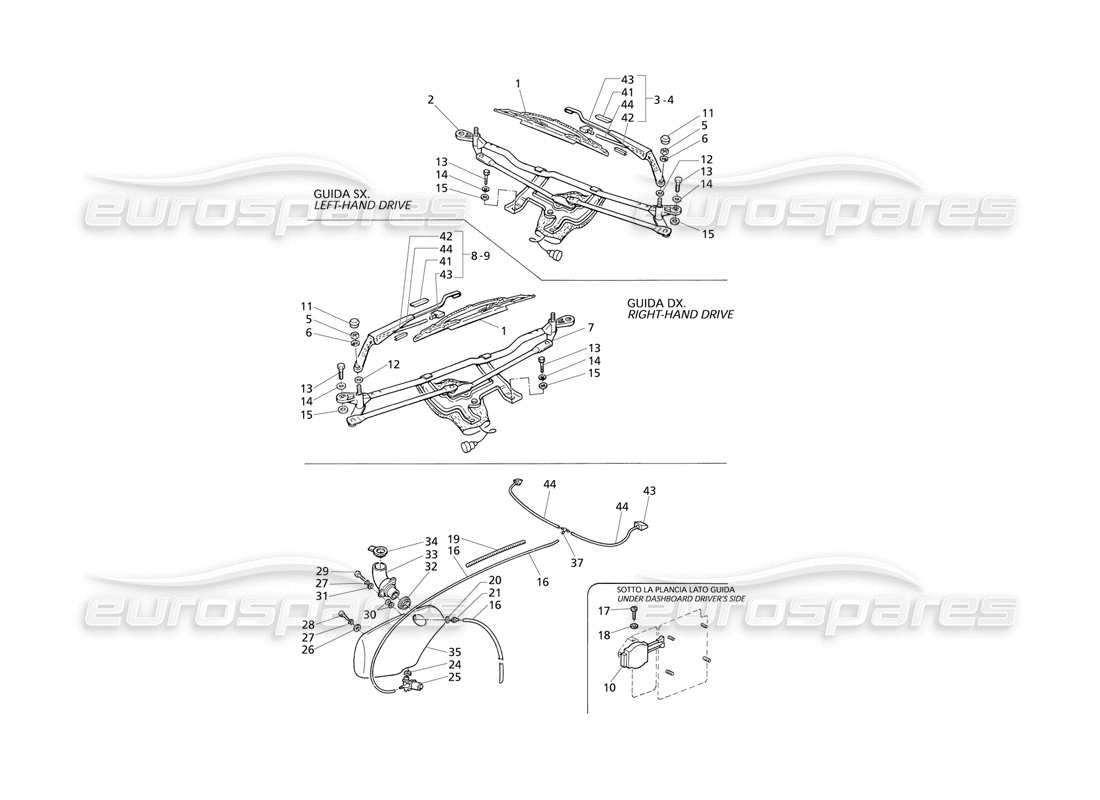

Maserati QTP V8 Evoluzione Windscreen Wiper and Washer Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 313352158
BLADE WITH SPOILER
from £54.08
from £54.08
This part replaces part number 323356128 - and 2 more. Click to view details
# 002
MPN: 373380100
WINDSHIELD WIPER ASSY
from £88.47
from £88.47
This part replaces part number 373307100 - and 1 more. Click to view details
# 003
MPN: 373300173
DRIVER'S SIDE WIPER ARM, COMPLETE (LH DRIVE)
from £19.07
from £19.07
# 004
MPN: 373300173
PASSENGER SIDE WIPER ARM, COMPLETE (LH DRIVE)
from £19.07
from £19.07
# 005
MPN: 16100821
NUT
from £0.71
from £0.71
# 006
MPN: 12601379
SPRING WASHER
from £0.93
from £0.93
# 007
MPN: 373386100
WINDSHIELD WIPER ASSY
from £115.50
from £115.50
# 008
MPN: 373315171
DRIVER'S SIDE WIPER ARM, COMPLETE (RH DRIVE)
from £12.39
from £12.39
# 009
MPN: 373315173
PASSENGER SIDE WIPER ARM, COMPLETE (RH DRIVE)
from £12.14
from £12.14
# 010
MPN: 373300202
WINDSHIELD WIPER INTERMITTENCE RELAY
from £64.12
from £64.12
# 011
MPN: 393350327
CUP
from £1.55
from £1.55
# 012
MPN: 136110110
SHIM
from £2.16
from £2.16
# 013
MPN: 10902621
SCREW
Supersession
Supersession
# 014
MPN: 12601279
SPRING WASHER
from £0.53
from £0.53
# 015
MPN: 163030060
WASHER
from £1.08
from £1.08
# 016
MPN: 30871323
PIPING
- Section In meters - order minimum amount of 1 m or multiples
from £1.08
from £1.08
This part replaces part number 398150312 - and 1 more. Click to view details
# 017
MPN: 112804008
SCREW
# 018
MPN: 10519301
WASHER
from £12.68
from £12.68
# 019
MPN: 97218
CORRUGATED PIPE
- Section In meters - order minimum amount of 1 m or multiples
from £1.86
from £1.86
This part replaces part number 188340 - and 1 more. Click to view details
# 020
MPN: 330874000
GROMMET
from £1.08
from £1.08
# 021
MPN: 312230461
UNION
from £0.99
from £0.99
# 024
MPN: 30331302
GASKET
from £0.69
from £0.69
# 025
MPN: 373300183
WINDSHIELD WASHER PUMP
from £22.62
from £22.62
This part replaces part number 330907620
# 026
MPN: 30331302
FLAT WASHER
from £0.69
from £0.69
# 027
MPN: 12601279
SPRING WASHER
from £0.53
from £0.53
# 028
MPN: 112806016
SCREW
# 029
MPN: 14778410
SCREW
from £1.43
from £1.43
# 030
MPN: 398150324
SHIM
from £1.55
from £1.55
# 031
MPN: 135000053
WASHER
# 032
MPN: 398150328
GASKET
from £34.43
from £34.43
# 033
MPN: 398150192
PIPE UNION
from £6.20
from £6.20
This part replaces part number 398150329
# 034
MPN: 398150327
PLUG
from £1.62
from £1.62
# 035
MPN: 398150132
Tank
from £67.02
from £67.02
This part replaces part number 398150024
# 037
MPN: 30811310
THREE WAY UNION
from £0.78
from £0.78
# 041
MPN: 373300336
HOSE RETAINER ON WINDSHIELD WIPER ARM
from £3.09
from £3.09
# 042
MPN: 373300337
SIDE HOSE RETAINER ON WINDSHIELD WIPER ARM
from £1.08
from £1.08
# 043
MPN: 373300335
NOZZLE
from £4.32
from £4.32
# 044
MPN: 378700323
PIPING
- Section In meters - order minimum amount of 1 m or multiples
from £0.99
from £0.99
