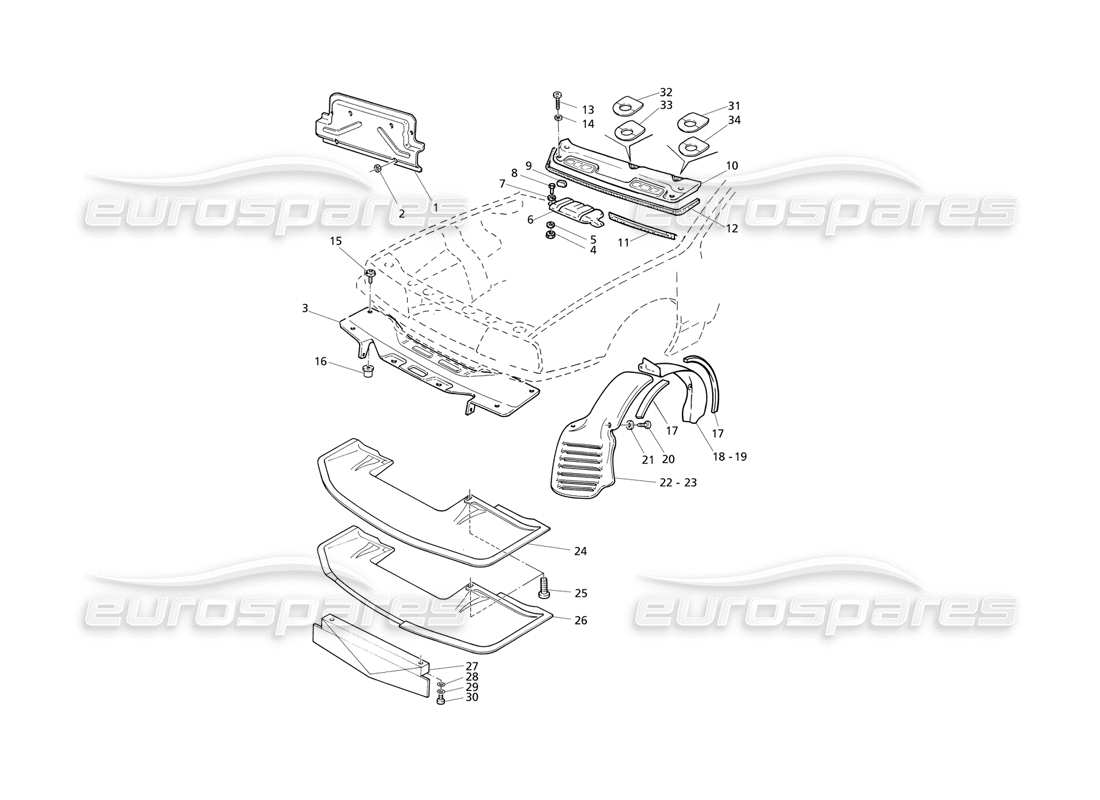

046.2 - Engine Bay: Carters

Maserati QTP V8 Evoluzione Engine Bay: Carters Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Price
                                                        # 001
                                                        MPN: 373330349
                                                        ABSOLUTE PRESS. SENSORS COMPARTMENT COVER
                                                        from £6.29
                                                        from £6.29
                                                        # 002
                                                        MPN: 14084111
                                                        FLANGED NUT
                                                        from £0.53
                                                        from £0.53
                                                        # 003
                                                        MPN: 374130323
                                                        ENGINE BAY UPPER CASE
                                                        from £161.85
                                                        from £161.85
                                                        # 004
                                                        MPN: 319220324
                                                        NUT SCREW
                                                        from £0.63
                                                        from £0.63
                                                        This part replaces part number 82457087
                                                        # 005
                                                        MPN: 312520511
                                                        GASKET
                                                        from £1.70
                                                        from £1.70
                                                        # 006
                                                        MPN: 312520510
                                                        WATER SHIELD
                                                        from £2.83
                                                        from £2.83
                                                        # 007
                                                        MPN: 169020005
                                                        WASHER
                                                        from £1.08
                                                        from £1.08
                                                        # 008
                                                        MPN: 15958807
                                                        SCREW
                                                        from £1.08
                                                        from £1.08
                                                        This part replaces part number 15958701
                                                        # 009
                                                        MPN: 53211300
                                                        PLUG
                                                        Supersession
                                                        Supersession
                                                        # 010
                                                        MPN: 372580504
                                                        ACCESSORY COMPARTMENT COVERY
                                                        - Only LH drive
                                                        from £135.71
                                                        from £135.71
                                                        # 010
                                                        MPN: 372596504
                                                        ACCESSORY COMPARTMENT COVERY
                                                        - Only RH drive
                                                        from £74.64
                                                        from £74.64
                                                        # 011
                                                        MPN: 314320357
                                                        GASKET
                                                        - Section In meters - order minimum amount of 1 m or multiples
                                                        from £6.42
                                                        from £6.42
                                                        This part replaces part number 318720301
                                                        # 012
                                                        MPN: 374380424
                                                        GASKET
                                                        from £16.31
                                                        from £16.31
                                                        This part replaces part number 318720355
                                                        # 013
                                                        MPN: 119142160
                                                        SCREW
                                                        from £0.90
                                                        from £0.90
                                                        # 014
                                                        MPN: 135000043
                                                        FLAT WASHER
                                                        from £1.08
                                                        from £1.08
                                                        # 015
                                                        MPN: 161600510
                                                        SELF THREADING SCREW
                                                        from £4.88
                                                        from £4.88
                                                        # 016
                                                        MPN: 378300387
                                                        NUT SCREW
                                                        - Section In meters - order minimum amount of 1 m or multiples
                                                        from £2.32
                                                        from £2.32
                                                        # 017
                                                        MPN: 374380424
                                                        GASKET
                                                        from £16.31
                                                        from £16.31
                                                        This part replaces part number 318720355
                                                        # 018
                                                        MPN: 372500505
                                                        LH MUDGUARD
                                                        from £23.56
                                                        from £23.56
                                                        # 019
                                                        MPN: 372500506
                                                        RH MUDGUARD
                                                        from £23.56
                                                        from £23.56
                                                        # 020
                                                        MPN: 1477810
                                                        SCREW
                                                        Supersession
                                                        Supersession
                                                        # 021
                                                        MPN: 312552529
                                                        PVC WASHER
                                                        Supersession
                                                        Supersession
                                                        # 022
                                                        MPN: 372580525
                                                        LH MUDGUARD
                                                        from £213.07
                                                        from £213.07
                                                        This part replaces part number 372530525
                                                        # 023
                                                        MPN: 372580526
                                                        RH MUDGUARD
                                                        from £117.19
                                                        from £117.19
                                                        This part replaces part number 372530526 - and 1 more. Click to view details
                                                        # 024
                                                        MPN: 376190300
                                                        ENGINE GUARD LOWER CASE
                                                        from £108.28
                                                        from £108.28
                                                        # 025
                                                        MPN: 327720338
                                                        SCREW
                                                        from £1.55
                                                        from £1.55
                                                        # 026
                                                        MPN: 376191300
                                                        ENGINE GUARD LOWER CASE
                                                        from £234.81
                                                        from £234.81
                                                        # 027
                                                        MPN: 374091392
                                                        AIR DUCT
                                                        from £90.40
                                                        from £90.40
                                                        # 028
                                                        MPN: 136110055
                                                        WASHER
                                                        from £0.77
                                                        from £0.77
                                                        # 031
                                                        MPN: 373300352
                                                        TRIM
                                                        - Only LH drive
                                                        from £0.76
                                                        from £0.76
                                                        # 032
                                                        MPN: 373300351
                                                        TRIM
                                                        - Only LH drive
                                                        from £0.61
                                                        from £0.61
                                                        # 033
                                                        MPN: 373330352
                                                        RH DRIVE TRIM
                                                        - Only RH drive
                                                        from £0.76
                                                        from £0.76
                                                        # 034
                                                        MPN: 373300351
                                                        RH DRIVE TRIM
                                                        - Only RH drive
                                                        from £0.61
                                                        from £0.61
