maserati qtp v8 evoluzione boot: carpets parts diagram

047.1 - Boot: Carpets

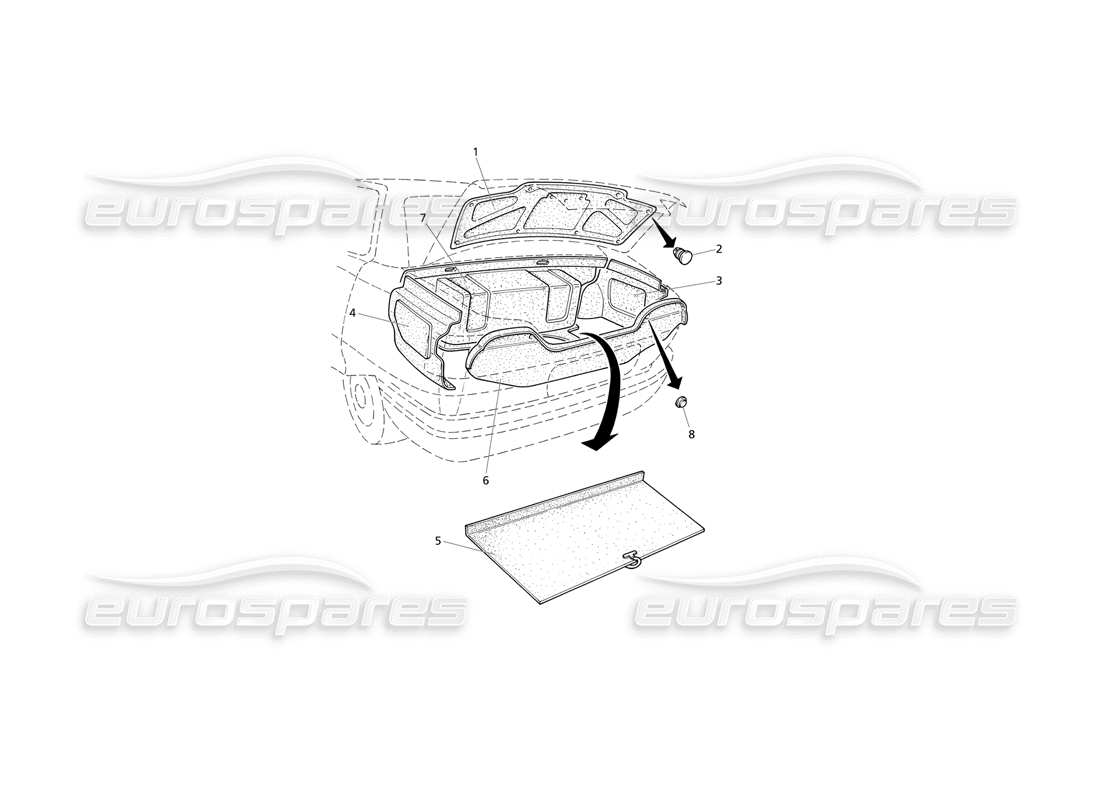

Maserati QTP V8 Evoluzione Boot: Carpets Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Price
                    # 000
                    MPN: 3745821658
                    COMPLETE BOOT CARPET SET
                    # 001
                    MPN: 371580456
                    BOOT LID UPHOLSTERY
                    from £19.48
                    from £19.48
                    # 002
                    MPN: 312520504
                    PLUG
                    from £2.34
                    from £2.34
                    # 003
                    MPN: 371507458
                    SIDE RH CARPET
                    from £62.26
                    from £62.26
                    # 004
                    MPN: 371507457
                    SIDE LH CARPET
                    from £52.96
                    from £52.96
                    # 005
                    MPN: 371507120
                    BOOT FLOOR UPHOLSTERY, COMPLETE
                    from £76.97
                    from £76.97
                    # 006
                    MPN: 371500123
                    REAR WALL UPHOLSTERY, COMPLETE
                    from £46.36
                    from £46.36
                    # 007
                    MPN: 371580121
                    TANK COMPARTMENT PAMEL
                    from £53.06
                    from £53.06
                    # 008
                    MPN: 374700353
                    BOOT REAR WALL SECUR. PLUGS
                    from £1.08
                    from £1.08
