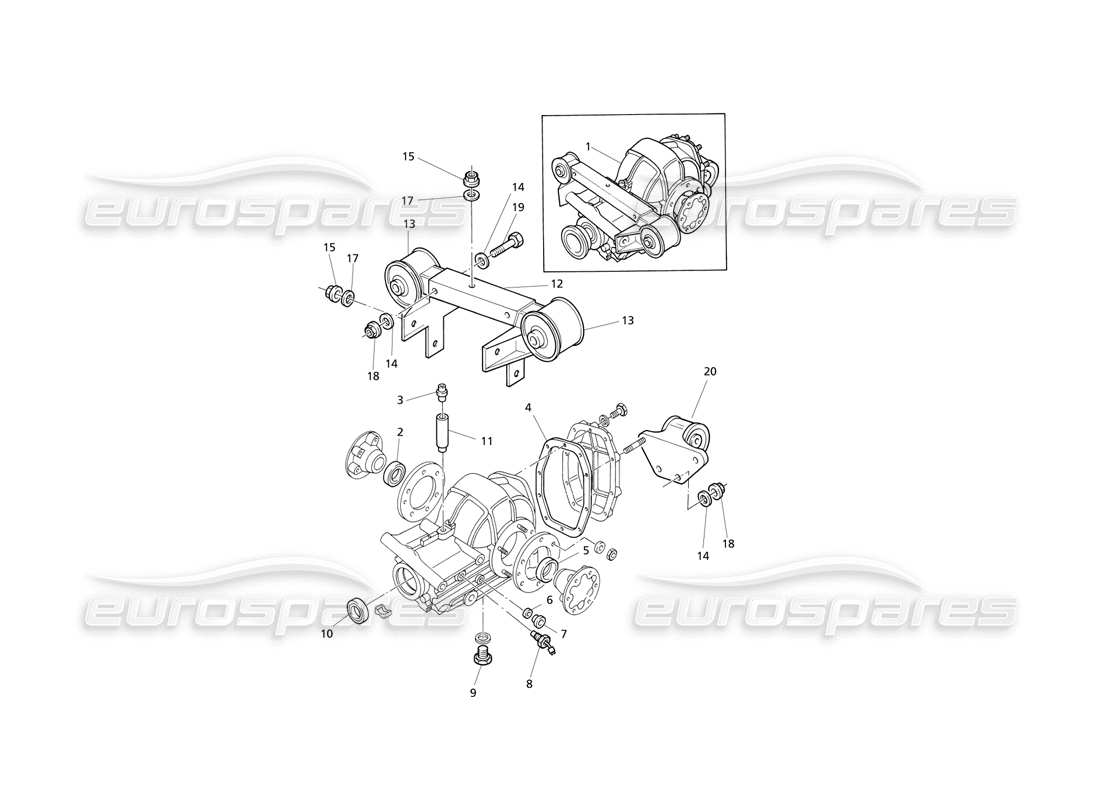

Maserati QTP V8 Evoluzione Differential External Parts Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 376260005
DIFFERENTIAL ASSY R=3,23
- Valid for M.T. version
Supersession
Supersession
# 001
MPN: 376291005
DIFFERENTIAL ASSY R=3,91
- Valid for A.T. version
from £1,888.32
from £1,888.32
# 002
MPN: 181618
OIL SEAL
from £28.93
from £28.93
# 003
MPN: 386200107
OIL BREATHER
from £20.25
from £20.25
# 004
MPN: 376200365
GASKET
from £6.56
from £6.56
# 005
MPN: 181617
OIL SEAL
from £26.03
from £26.03
# 006
MPN: 10263460
GASKET
from £0.53
from £0.53
This part replaces part number 10261830
# 007
MPN: 376200548
OIL DRAINAGE PLUG
from £10.36
from £10.36
# 008
MPN: 373630106
PULSE GENERATOR
from £259.50
from £259.50
# 009
MPN: 376200346
OIL DRAINAGE PLUG
from £4.17
from £4.17
# 010
MPN: 221062
OIL SEAL
from £48.77
from £48.77
This part replaces part number 386200121
# 011
MPN: 386200575
BREATHER STUD BOLT
# 012
MPN: 376200167
CROSS MEMBER
from £21.21
from £21.21
# 013
MPN: 376200165
SIDE DIFF. SUPPORT
from £255.80
from £255.80
# 014
MPN: 4425717
WASHER
from £1.08
from £1.08
# 015
MPN: 12577221
SELF LOCKING NUT
from £1.37
from £1.37
# 016
MPN: 14496601
WASHER
Supersession
Supersession
# 017
MPN: 4425717
WASHER
from £1.08
from £1.08
# 018
MPN: 16104111
SELF LOCKING NUT
from £1.08
from £1.08
# 019
MPN: 15213721
BOLT
from £1.31
from £1.31
# 020
MPN: 376230169
REAR DIFF. SUPPORT
Supersession
Supersession
