lamborghini countach 5000 qv (1985) cylinder heads parts diagram

001 - Cylinder Heads

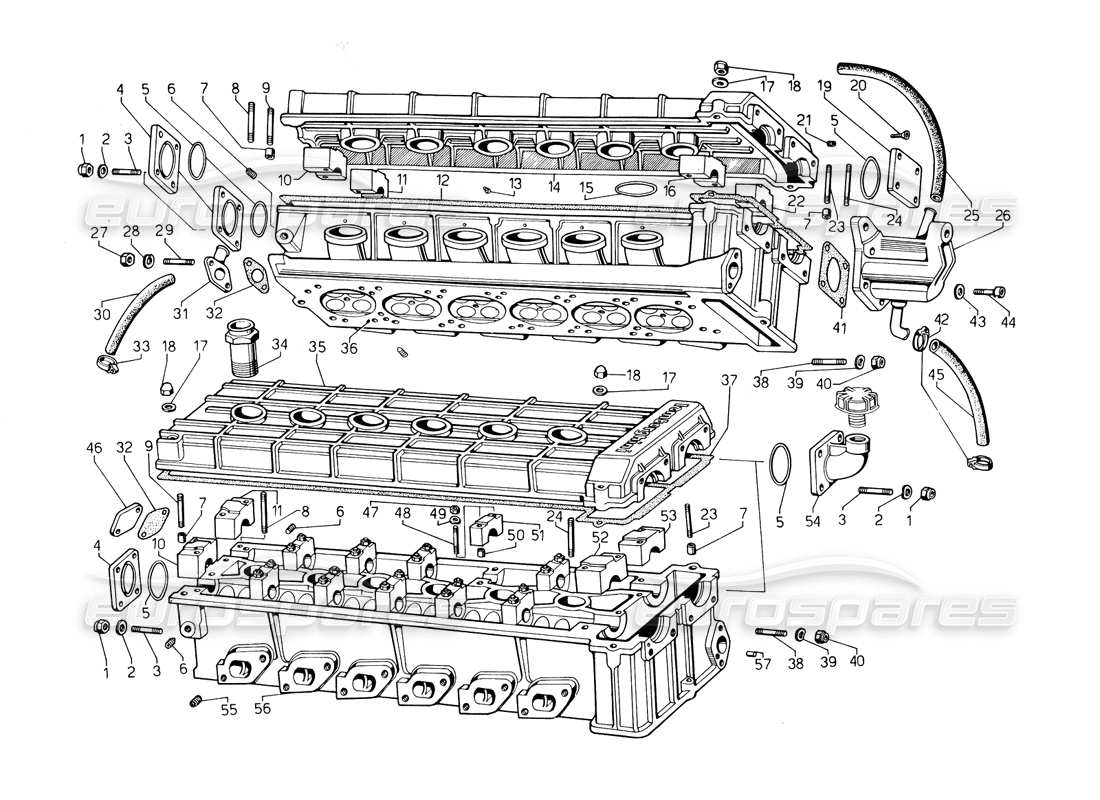

Lamborghini Countach 5000 QV (1985) Cylinder Heads Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 000
          MPN: 399900008
          ENGINE - EXCHANGE
          Lamborghini PART 399900008 Genuine Lamborghini - New (to order)
          # 000
          MPN: LCCG002
          CAM COVER GASKET SET
          from £77.96
          from £77.96
          CAM COVER GASKET SET Genuine Lamborghini - New (to order)
          CAM COVER GASKET SET Original Equipment - New In stock
          # 001
          MPN: 008200605
          NUT
          Dado orig. Drama vs. rif. NCM70 106M
          from £1.74
          from £1.74
          M6 NCM 70 URAMA SIMMON NUT Genuine Lamborghini - New (to order)
          # 002
          MPN: 008410602
          LOCK WASHER
          RONDELLA DI FERMO DIN 137/B
          from £26.01
          from £26.01
          WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New In stock
          # 003
          MPN: 008300641
          STUD BOLT
          PRIGIONIERO
          from £0.58
          from £0.58
          SPECIAL STUD M6X20 Genuine Lamborghini - New (to order)
          # 004
          MPN: 001114502
          CAP
          Coperchietto post, e ant. testa dx e sx
          from £118.98
          from £118.98
          HEAD CLOSING COVER Genuine Lamborghini - New (to order)
          # 005
          MPN: 008606205
          SEAL RING
          ANELLO OR 3243
          from £4.04
          from £4.04
          This part replaces part number 008606201
          O-RING Genuine Lamborghini - New (to order)
          # 006
          MPN: 008700606
          SCREW
          ViteEl M6x1x10 12K
          from £0.50
          from £0.50
          SCREW EI M6X1X10 12KD Genuine Lamborghini - New In stock
          SCREW EI M6X1X10 12KD Genuine Lamborghini - New (other) In stock
          (Valid for June 1992 version) GRAND (dalla 12678)
          # 007
          MPN: 008800604
          DOWEL
          Grano x centraggio cop. sup. testa dx e sx
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 008
          MPN: 008300649
          STUD BOLT
          Prigioniero 0 6x1x47
          from £5.94
          from £5.94
          SPECIAL STUD M6X47 Genuine Lamborghini - New (to order)
          # 009
          MPN: 008300650
          STUD BOLT
          Prigioniero 0 6x1x51
          from £7.55
          from £7.55
          SPECIAL STUD M6X51 Genuine Lamborghini - New (to order)
          # 010
          MPN: 001120855
          EXHAUST HEAD SUPPORT.
          Supp. x testa dx scarico e sx asp.
          SUPPORT Genuine Lamborghini - New (to order)
          # 011
          MPN: 001120856
          EXHAUST HEAD SUPPORT.
          Supp. x testa dx asp. e sx scarico
          SUPPORT Genuine Lamborghini - New (to order)
          # 012
          MPN: 001120813
          GASKET
          Guarnizione
          from £78.35
          from £78.35
          L H UPPER COVER/HEAD GASKET (longer gasket) Genuine Lamborghini - New (to order)
          # 013
          MPN: 001122089
          DOWEL
          Grano x centr. collett. di asp.
          from £10.57
          from £10.57
          MANIFOLD CENTRING DOWEL Genuine Lamborghini - New (to order)
          # 014
          MPN: 001120812
          CAP
          Coperchio sup. testa sx
          from £2,723.63
          from £2,723.63
          LH HEAD UPPER COVER Genuine Lamborghini - New (to order)
          # 015
          MPN: 008604703
          RING
          Anello tenuta tipo O.R.
          from £5.15
          from £5.15
          This part replaces part number 008604701
          O-RING Genuine Lamborghini - New (to order)
          # 016
          MPN: 001120852
          HEAD SUPPORTER
          Supp. ant. x testa sx lato asp.
          SUPPORT Genuine Lamborghini - New (to order)
          # 017
          MPN: 008410602
          LOCK WASHER
          RONDELLA DI FERMO DIN 137/B
          from £26.01
          from £26.01
          WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New In stock
          # 018
          MPN: 008200605
          NUT
          Dado orig. Drama vs. rif. NCM70 106M
          from £1.74
          from £1.74
          M6 NCM 70 URAMA SIMMON NUT Genuine Lamborghini - New (to order)
          # 019
          MPN: 001122080
          HEAD CAP
          Cop. x testa sx lato asp. parte ant.
          from £176.19
          from £176.19
          INTAKE LH HEAD COVER Genuine Lamborghini - New (to order)
          # 020
          MPN: 008700613
          SCREW
          ViteVSP 6x1x1 5A
          from £0.53
          from £0.53
          SCREW M6X14 UNI 5933/8G/ZB Genuine Lamborghini - New In stock
          # 021
          MPN: 008840802
          SCREW
          Heli-Coil 8x1 ,25 inox
          from £2.06
          from £2.06
          HELI-COIL M8X1.25 L12 Genuine Lamborghini - New (to order)
          # 022
          MPN: 001120853
          HEAD SUPPORTER
          Supp. ant. x testa sx lato scarico
          SUPPORT Genuine Lamborghini - New (to order)
          # 023
          MPN: 008300648
          STUD BOLT
          Prigioniero 0 6x1x43
          from £10.00
          from £10.00
          SPECIAL STUD M6X43 Genuine Lamborghini - New (to order)
          # 024
          MPN: 008300647
          STUD BOLT
          Prigioniero 0 6x1x39
          from £6.62
          from £6.62
          SPECIAL STUD M6X39 Genuine Lamborghini - New (to order)
          # 025
          MPN: 001519450
          TUBE
          Tubo in gomma dal c. sfiato olio al 3VIE
          from £52.49
          from £52.49
          RUBBER PIPE FROM OILBREATHER Genuine Lamborghini - New (to order)
          # 026
          MPN: 004622078
          AIR PUMP SUPPORTER
          Supporto pompa aria
          Lamborghini PART 004622078 Genuine Lamborghini - New (to order)
          # 027
          MPN: 008200605
          NUT
          Dado orig. Drama vs. rif. NCM70 106M
          from £1.74
          from £1.74
          M6 NCM 70 URAMA SIMMON NUT Genuine Lamborghini - New (to order)
          # 028
          MPN: 008410603
          LOCK WASHER
          Rond. A6.4UNI 1751 C72
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 029
          MPN: 008300610
          BOLT
          Prigioniero 6x1x16 8G
          from £15.47
          from £15.47
          STUD 6X1X16 8G UNI5911 Z. Genuine Lamborghini - New (to order)
          # 030
          MPN: 001722787
          RUBBER SLEEVE
          Manicotto in gomma
          from £24.21
          from £24.21
          LH HEAD ASSEMBLY PIPE Genuine Lamborghini - New (to order)
          # 031
          MPN: 001722783
          FLANGE
          Flangia uscita testa sx x riscaldatpre
          Lamborghini PART 001722783 Genuine Lamborghini - New (to order)
          # 032
          MPN: 001121254
          GASKET
          Guarnizione
          from £5.23
          from £5.23
          FLANGE SEAL Genuine Lamborghini - New In stock
          # 033
          MPN: 008830206
          CLAMP RING
          FASC. ROYAL 00/12 18/30
          from £12.56
          from £12.56
          CLAMP Genuine Lamborghini - New In stock
          # 034
          MPN: 001120857
          GASKET PIPE UNION
          Bocchettone fiss. cop. testa dx e sx
          from £96.19
          from £96.19
          COVER MOUNTING UNION Genuine Lamborghini - New (to order)
          # 035
          MPN: 001120810
          CAP
          Coperchio sup. testa dx
          from £2,723.63
          from £2,723.63
          HEAD UPPER COVER Genuine Lamborghini - New (to order)
          # 036
          MPN: 460005452
          LH cylinder head
          from £9,414.54
          from £9,414.54
          COUNTACH 4 LH MACHINED HEAD Genuine Lamborghini - New (to order)
          # 037
          MPN: 001120811
          CAM COVER GASKET
          from £113.59
          from £113.59
          R H UPPER COVER/HEAD GASKET (shorter gasket) Genuine Lamborghini - New (to order)
          # 038
          MPN: 008300806
          BOLT
          Prig. M8/70 DNI 5911-66A 8G
          from £3.48
          from £3.48
          STUD M8X70 UNI 5911 9G Z Genuine Lamborghini - New (to order)
          # 039
          MPN: 008410810
          LOCK WASHER
          RONDELLA DI FERMO DIN 137/4
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 040
          MPN: 008200816
          NUT
          DADO NCM 70 108M 8G
          from £2.90
          from £2.90
          SPECIAL NUT Genuine Lamborghini - New In stock
          # 041
          MPN: 001121012
          GASKET
          Guam, tra sfiato olio e testa
          from £2.99
          from £2.99
          HEAD-BREATHER OIL GASKET Genuine Lamborghini - New (to order)
          # 042
          MPN: 008830206
          CLAMP RING
          Fasc. royal 00/1 2 18/30
          from £12.56
          from £12.56
          CLAMP Genuine Lamborghini - New In stock
          # 043
          MPN: 008410810
          LOCK WASHER
          RONDELLA DI FERMO DIN 137/4
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 044
          MPN: 008700811
          SCREW
          Viti8x1,25 UNI 5931
          from £0.53
          from £0.53
          SCREW M8X22 UNI 5931/8G/Z Genuine Lamborghini - New In stock
          # 045
          MPN: 001519453
          TUBE
          Manic, da sfiato olio al tubo sc. olio
          from £48.43
          from £48.43
          OIL BREATHER SLEEVE TO PIPE Genuine Lamborghini - New (to order)
          # 046
          MPN: 001121252
          FLANGE
          Flangia x foro post, testa dx
          from £16.65
          from £16.65
          OUTLET HOLE CLOSING FLANGE Genuine Lamborghini - New (to order)
          # 047
          MPN: 008200604
          NUT
          Dado M6 DNI 5588-65/8G
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 048
          MPN: 008300640
          STUD BOLT
          Prigioniero 0 6x1x34
          from £10.66
          from £10.66
          SPECIAL STUD M6X34 Genuine Lamborghini - New (to order)
          # 049
          MPN: 008410602
          LOCK WASHER
          RONDELLA DI FERMO DIN 137/B
          from £25.50
          from £25.50
          WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New In stock
          # 050
          MPN: 008800604
          DOWEL
          Grano x centraggio supp. alberi distr.
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 051
          MPN: 001120854
          SUPPORTER
          Supp. intermedio
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 052
          MPN: 001120851
          SUPPORTER
          Supp. ant. x testa dx lato scarico
          SUPPORTER Genuine Lamborghini - New (to order)
          # 053
          MPN: 07M103286
          SUPPORTER
          Supp. ant. x testa dx lato asp.
          from £131.00
          from £131.00
          SUPP.ANTER.PER TESTA DEST Genuine Lamborghini - New (to order)
          # 054
          MPN: 001120277
          OIL FILLER
          Bocchettone x introduzione olio
          from £262.83
          from £262.83
          HEAD OIL FILLER Genuine Lamborghini - New (to order)
          # 055
          MPN: 008840802
          SCREW
          HELI-COIL 8x1,25 INOX
          from £2.05
          from £2.05
          HELI-COIL M8X1.25 L12 Genuine Lamborghini - New (to order)
          # 056
          MPN: 460005402
          RH cylinder head
          from £9,414.54
          from £9,414.54
          COUNTACH 4 RH MACHINED HEAD Genuine Lamborghini - New (to order)
          # 057
          MPN: 008850615
          SCREW
          GRANO
          from £11.53
          from £11.53
          REFERENCE PIN 6JX11 C40 Genuine Lamborghini - New (to order)
