lamborghini countach 5000 qv (1985) crankshaft parts diagram

004 - crankshaft

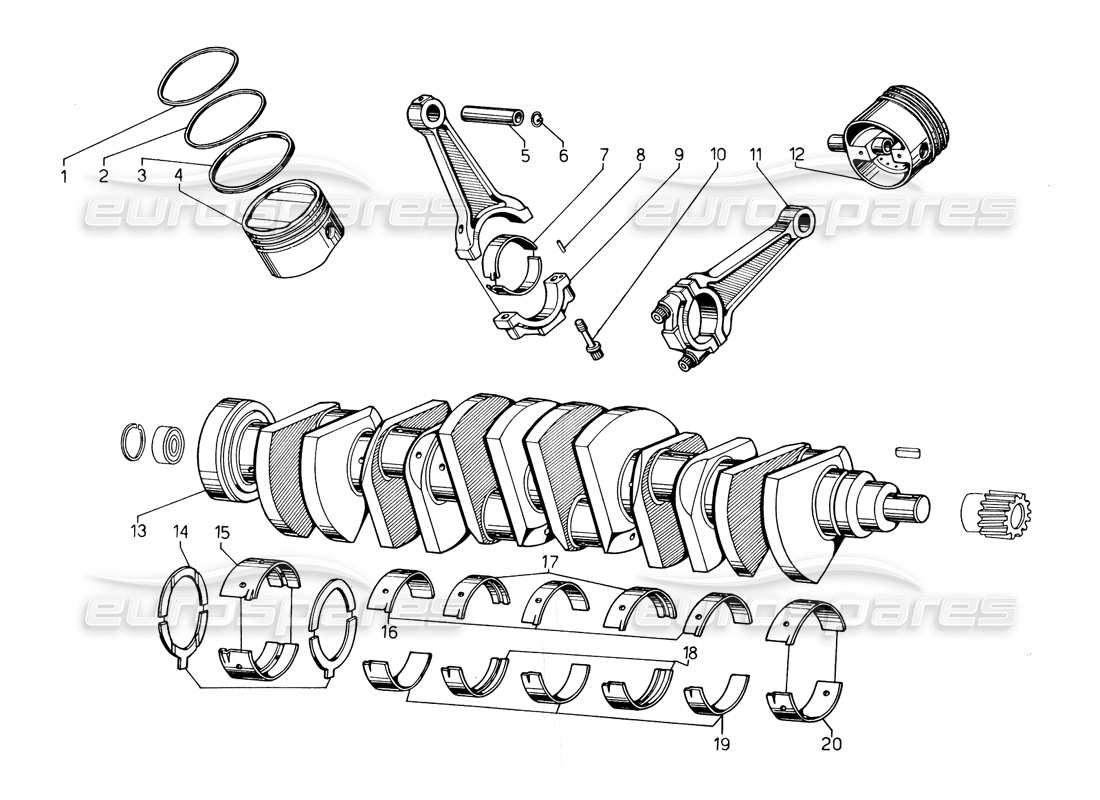

Lamborghini Countach 5000 QV (1985) Crankshaft Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 000
          MPN: 001436804
          STD MAINS & BIG ENDS BEARINGS
          from £1,945.44
          from £1,945.44
          MAINS & BIG ENDS BEARINGS SET Genuine Lamborghini - New (to order)

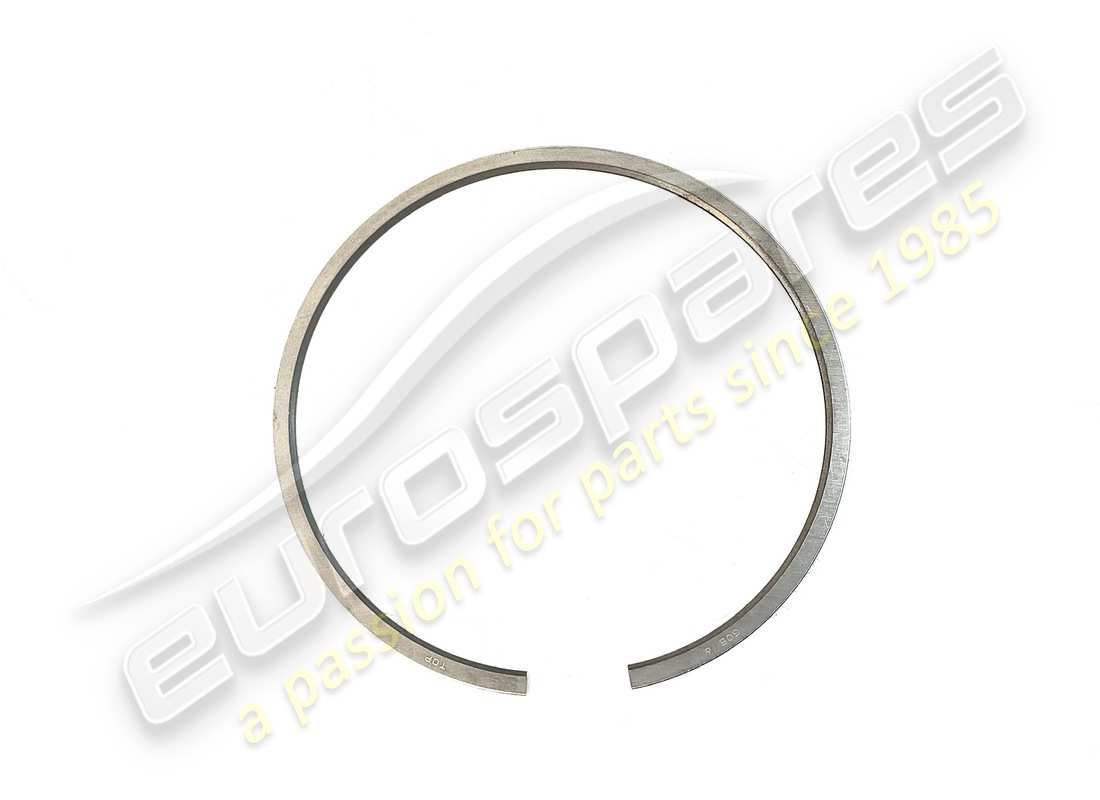

          # 001
          MPN: 001422781
          RING
          Segmento ac. crom. bomb. B30
          from £92.86
          from £92.86
          This part replaces part number 001419636
          CHROME PLATED STEEL RING Genuine Lamborghini - New (to order)
          # 002
          MPN: 001422778
          RING
          Segmento ac. torsionale
          from £70.23
          from £70.23
          This part replaces part number 001419635
          TORQUE RING Genuine Lamborghini - New (to order)
          # 003
          MPN: 001422779
          RING
          Anello raschiaolio rof. spiral
          from £52.58
          from £52.58
          OIL SCRAPER RING Genuine Lamborghini - New (to order)

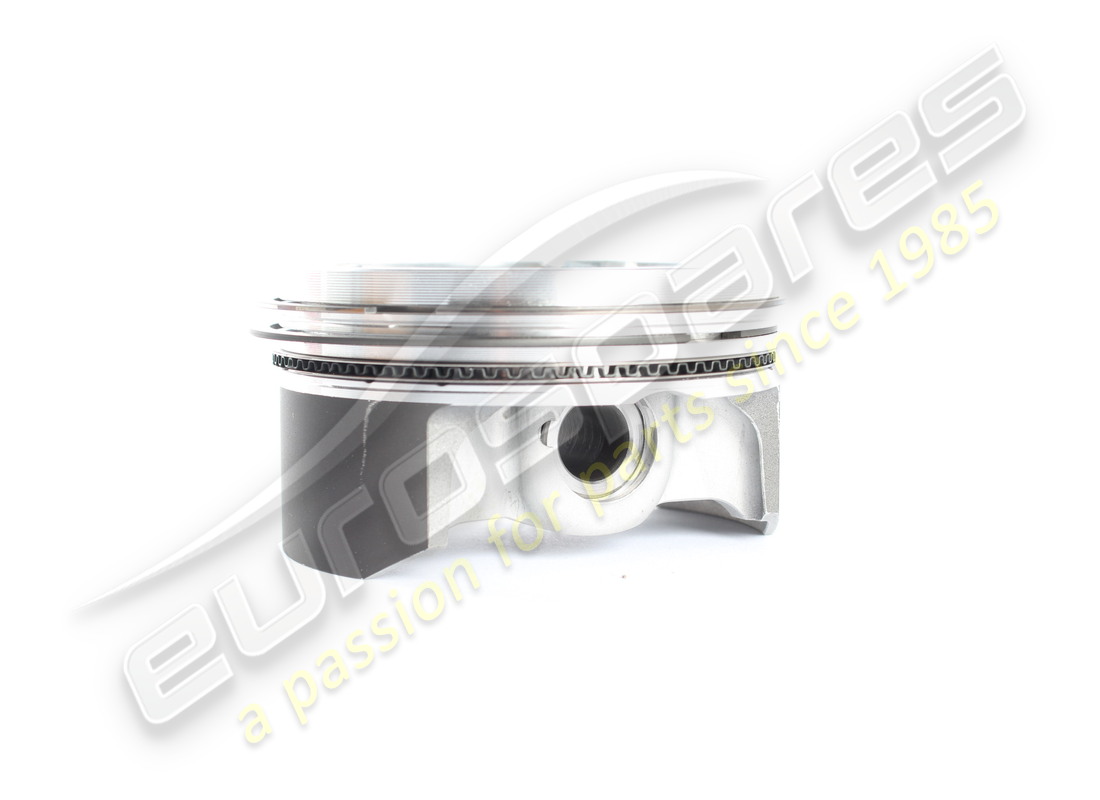

          # 004
          MPN: 001420801
          PISTON+RINGS
          from £288.75
          from £288.75
          PISTON Genuine Lamborghini - New (to order)
          Eurospares PART 001420801 Eurospares Approved Part - New In stock
          Eurospares PART 001420801 Eurospares Approved Part - New (to order)
          # 005
          MPN: 001422776
          PISTON PIN
          Spinotto x pistone
          from £100.33
          from £100.33
          PISTON PIN Genuine Lamborghini - New (to order)
          # 006
          MPN: 001422777
          RING
          Anellino tenuta spinotto
          from £1.01
          from £1.01
          PIN SEALING RING Genuine Lamborghini - New (to order)

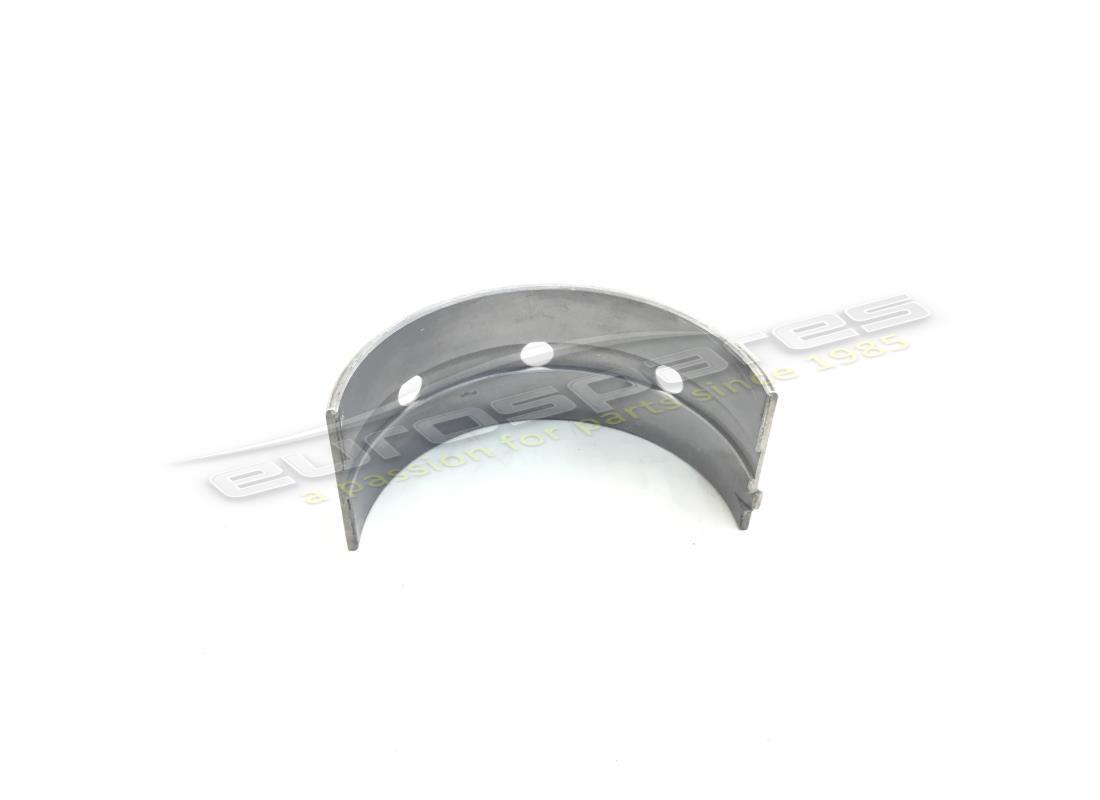

          # 007
          MPN: 07M105701
          HALF BEARING
          from £54.90
          from £54.90
          This part replaces part number 001419907
          CONNECTING ROD BEARING SHELL Genuine Lamborghini - New In stock
          # 008
          MPN: 008900308
          PEG
          SPINA ELASTICA
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 009
          MPN: 001419906
          CONN ROD
          Biella con cappello
          from £157.50
          from £157.50
          Lamborghini PART 001419906 Genuine Lamborghini - New (to order)
          Lamborghini PART 001419906 Genuine Lamborghini - Used In stock
          # 010
          MPN: 001413860
          BOLT
          Bullone per biella
          from £62.49
          from £62.49
          CONNECTING ROD BOLT Genuine Lamborghini - New In stock
          # 011
          MPN: 001422782
          ROD
          BIELLA COMPLETA
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 012
          MPN: 001420801
          PISTON+RINGS
          from £288.75
          from £288.75
          PISTON Genuine Lamborghini - New (to order)
          Eurospares PART 001420801 Eurospares Approved Part - New In stock
          Eurospares PART 001420801 Eurospares Approved Part - New (to order)
          # 013
          MPN: 001420911
          crankshaft
          Albero molore completo
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 014
          MPN: 07M105532
          THRUST WASHER (PRICE EACH)
          use:2x 07M105531A & 2x 07M105532
          from £196.28
          from £196.28
          THRUST SHIM Genuine Lamborghini - New In stock
          # 015
          MPN: 001419440
          MAIN BEARIN
          Semiguscio di banco post. inf. sup.
          from £214.01
          from £214.01
          LOWER REAR MAIN HALFFRONT BEAR ING Genuine Lamborghini - New (to order)
          # 016
          MPN: 001419438
          MAIN BEARIN
          Semiguscio di banco intermedio sup.
          from £85.17
          from £85.17
          BEARING Genuine Lamborghini - New (to order)
          # 017
          MPN: 001419437
          MAIN BEARIN
          Semiguscio di banco intermedio sup.
          from £115.66
          from £115.66
          BUSHING Genuine Lamborghini - New (to order)

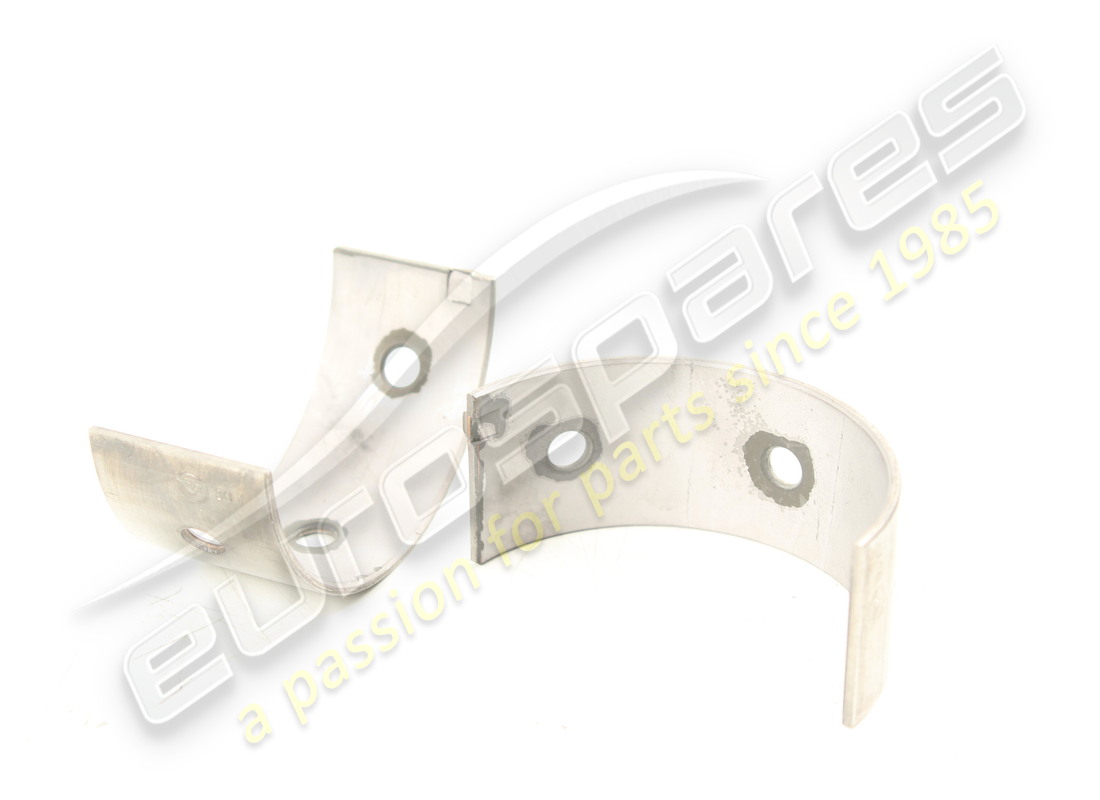

          # 018
          MPN: 07M105707C
          HALF BEARING
          Semiguscio di banco intermedio inf.
          from £62.77
          from £62.77
          BUSHING Genuine Lamborghini - New In stock
          # 019
          MPN: 001419439
          MAIN BEARIN
          Semiguscio di banco intermedio inf.
          from £147.87
          from £147.87
          BUSHING Genuine Lamborghini - New (to order)
          # 020
          MPN: 001419436
          MAIN BEARIN
          Semiguscio di banco sup. inf. ant.
          from £88.31
          from £88.31
          UPPER LOWER MAIN HALF FRONT BEARING Genuine Lamborghini - New (to order)
