058 - Wiring Harness and Electrical Components

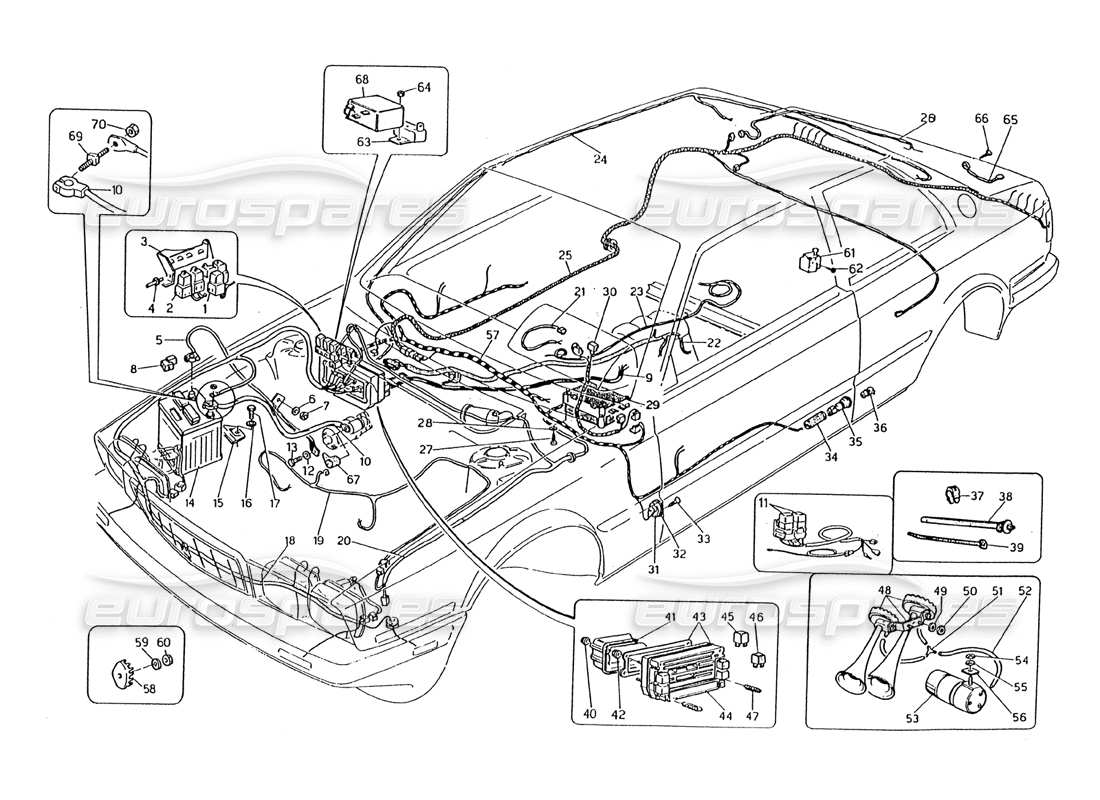

Maserati 2.24v Wiring Harness and Electrical Components Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
313320134
START RELAY
from
£17.83
from
£17.83
This part replaces part number 184101
#
002
MPN:
313320135
RELAY WITN FUSE
Supersession
Supersession
#
003
MPN:
313720102
SUPPORT
from
£6.70
from
£6.70
#
004
MPN:
164353075
RIVET
#
005
MPN:
313753106
NEGATIVE BATTERY CABLE FOR ENGINE FRAME
from
£4.10
from
£4.10
#
006
MPN:
135300084
SPRING WASHER
#
007
MPN:
125100080
NUT
from
£0.86
from
£0.86
#
008
MPN:
313020300
CAP
from
£1.18
from
£1.18
#
009
MPN:
313020144
INSTRUMENT PANEL WIRING HARNESS
from
£141.49
from
£141.49
#
010
MPN:
313053117
POSITIVE BATTERY CABLE
from
£0.47
from
£0.47
#
011
MPN:
313050103
AUXILIARY CABLE
#
012
MPN:
135300084
WASHER
#
013
MPN:
101208016
SCREW
#
014
MPN:
313050101
BATTERY (NOT SUPPLIED)
#
015
MPN:
313020314
PLATE
from
£1.67
from
£1.67
#
016
MPN:
138200080
SPRING WASHER
#
017
MPN:
101208020
SCREW
#
018
MPN:
323050143
RH ENGINE COMPART, WIRING HARNESS
from
£40.17
from
£40.17
#
019
MPN:
313020125
ENGINE WIRING HARNESS
Supersession
Supersession
#
020
MPN:
313053142
LH ENGINE COMPART, WIRING HARNESS
Supersession
Supersession
#
020
MPN:
313320333
SPRING
from
£0.69
from
£0.69
#
021
MPN:
313020121
INSULATED WIRE
from
£9.39
from
£9.39
#
022
MPN:
313050110
CONSOLE WIRING HARNESS
#
023
MPN:
313030118
LOUDSPEAKER WIRING HARNESS
from
£23.14
from
£23.14
#
024
MPN:
313020112
ROOF LIGHT WIRING HARNESS
from
£28.24
from
£28.24
#
025
MPN:
313050108
REAR WIRING HARNESS
#
026
MPN:
313053111
LUGGAGE ROOM WIRING HARNESS
from
£23.47
from
£23.47
#
027
MPN:
119142380
SCREW
#
028
MPN:
135900043
WASHER
from
£1.07
from
£1.07
This part replaces part number 14496207
#
029
MPN:
313620107
CHECK CONTROL
from
£158.05
from
£158.05
#
030
MPN:
313020113
CHECK/INSTRUMENT WIRING HARNESS
from
£16.43
from
£16.43
#
031
MPN:
34331114
DOOR SWITCH
#
032
MPN:
53211305
SEAL
from
£0.69
from
£0.69
#
033
MPN:
119535130
SCREW
#
034
MPN:
53311300
CAP
from
£0.69
from
£0.69
#
035
MPN:
30311113
DOOR LIGHT
from
£3.99
from
£3.99
#
036
MPN:
87720004
BULB
from
£0.47
from
£0.47
#
037
MPN:
53471340
WIRE CLIP
from
£1.12
from
£1.12
#
038
MPN:
313020307
STRAP
Supersession
Supersession
#
039
MPN:
313020308
STRAP
from
£0.69
from
£0.69
#
040
MPN:
122600060
NUT
#
041
MPN:
313020331
FUSE BOX GUARD
from
£1.90
from
£1.90
#
042
MPN:
122600060
NUT
#
043
MPN:
313020104
FUSE BOX, ASSY
from
£165.44
from
£165.44
#
044
MPN:
313020339
FUSE BOX CAP
from
£0.68
from
£0.68
#
045
MPN:
30331137
RELAY
Supersession
Supersession
#
046
MPN:
313320136
DIODES BRIDGE
from
£6.31
from
£6.31
#
047
MPN:
87200005
FUSE
Not supplied in single part
#
047
MPN:
87200008
FUSE
Not supplied in single part
#
047
MPN:
87200016
FUSE
Not supplied in single part
#
048
MPN:
313320006
HORN SET
from
£18.71
from
£18.71
#
049
MPN:
138200060
WASHER
#
050
MPN:
125100060
NUT
#
051
MPN:
313320324
THREE WAY UNION
from
£7.03
from
£7.03
#
052
MPN:
314020316
PIPE
from
£1.17
from
£1.17
This part replaces part number 313320325
#
053
MPN:
313320146
AIR COMPRESSOR
from
£55.45
from
£55.45
#
054
MPN:
125100080
NUT
from
£0.86
from
£0.86
#
055
MPN:
138200080
WASHER
#
056
MPN:
30631365
PLATE
#
057
MPN:
313050119
WIRING HARNESS
from
£271.31
from
£271.31
#
058
MPN:
313027326
PLATE
from
£1.07
from
£1.07
#
059
MPN:
135700060
WASHER
#
060
MPN:
122600060
NUT
#
061
MPN:
313330135
SWITCH
from
£14.82
from
£14.82
#
062
MPN:
119129095
SCREW
#
063
MPN:
30301124
SWITCH
from
£12.67
from
£12.67
#
064
MPN:
122600060
NUT
#
065
MPN:
53301127
EARTH CABLE
from
£0.87
from
£0.87
#
066
MPN:
119142130
SCREW
#
067
MPN:
313020301
CAP
from
£13.77
from
£13.77
#
068
MPN:
323320193
ELECTRIC UNIT
from
£22.67
from
£22.67
#
069
MPN:
313720300
SCREW
#
070
MPN:
125100060
