0007 - injection - ignition system

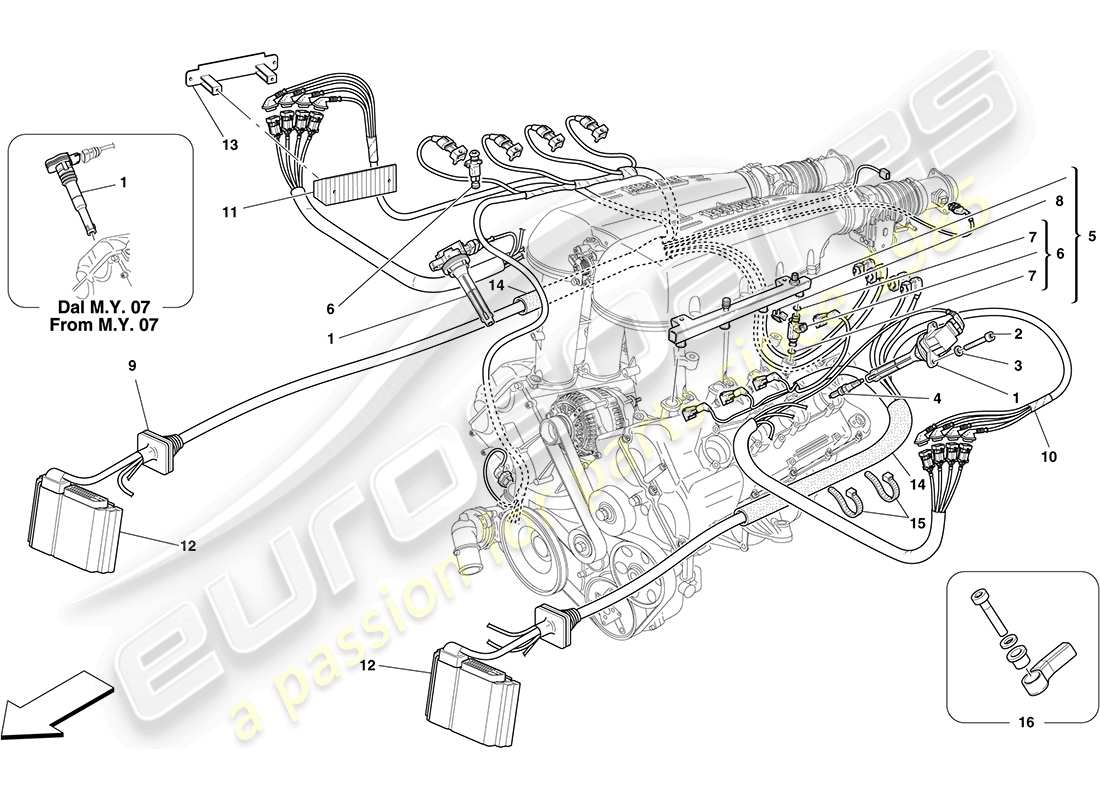

Ferrari F430 Coupe (RHD) INJECTION - IGNITION SYSTEM Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
186914
SINGLE IGNITION COIL
-For cylinders 3,4,5,6- -Applicable for USA, CDN- -Applicable up to Ass. No. 67970-
from
£59.12
from
£59.12
#
001
MPN:
186914
SINGLE IGNITION COIL
-For cylinders 3,4,5,6- -Not for USA, CDN- -Applicable up to Ass. No. 69638-
from
£59.12
from
£59.12
#
001
MPN:
188504
SINGLE IGNITION COIL
-For cylinders 1,2,7,8- -Applicable for USA, CDN- -Applicable up to Ass. No. 67970-
from
£59.12
from
£59.12
#
001
MPN:
188504
SINGLE IGNITION COIL
-For cylinders 1,2,7,8- -Not for USA, CDN- -Applicable up to Ass. No. 69638-
from
£59.12
from
£59.12
#
001
MPN:
227876
SINGLE IGNITION COIL
-Applicable from MY 07- -Applicable for USA, CDN- -Applicable from Ass. No. 68460- -No longer supplied- -Replaced by 248404-
from
£67.14
from
£67.14
This part replaces part number 219969
#
001
MPN:
227876
SINGLE IGNITION COIL
-Applicable from MY 07- -Not for USA, CDN- -Applicable from Ass. No. 69639- -No longer supplied- -Replaced by 248404-
from
£67.14
from
£67.14
This part replaces part number 219969
#
001
MPN:
248404
SINGLE IGNITION COIL
-Applicable from MY 07- -Applicable for USA, CDN- -Applicable from Ass. No. 67971-
Supersession
Supersession
This part replaces part number 227876 which we have in stock
#
001
MPN:
248404
SINGLE IGNITION COIL
-Applicable from MY 07- -Not for USA, CDN- -Applicable from Ass. No. 69639-
Supersession
Supersession
This part replaces part number 227876 which we have in stock
#
002
MPN:
201599
SCREW
-Not for USA, CDN-
from
£0.47
from
£0.47
#
002
MPN:
201599
SCREW
-Applicable for USA, CDN- -Applicable up to Ass. No. 67970-
from
£0.47
from
£0.47
#
003
MPN:
11197774
WASHER
from
£0.52
from
£0.52
This part replaces part number 11197770
- and 3 more. Click to view details
#
003
MPN:
11197774
WASHER
from
£0.52
from
£0.52
This part replaces part number 11197770
- and 3 more. Click to view details
#
004
MPN:
192637
SPARK PLUG
from
£14.74
from
£14.74
This part replaces part number 168325
#
005
MPN:
191390
COMPLETE LH FUEL PIPE WITH ELECTROINJECTORS
-Applicable up to MY 06- -Applicable up to engine No. 99607-
from
£817.70
from
£817.70
#
005
MPN:
191392
COMPLETE RH FUEL PIPE WITH ELECTROINJECTORS
-Applicable up to MY 06- -Applicable up to engine No. 99607-
from
£912.96
from
£912.96
#
005
MPN:
216542
COMPLETE RH FUEL PIPE WITH ELECTROINJECTORS
-Applicable from MY 06- -Applicable from engine No. 99608-
from
£817.70
from
£817.70
#
005
MPN:
216543
COMPLETE LH FUEL PIPE WITH ELECTROINJECTORS
-Applicable from MY 06- -Applicable from engine No. 99608-
from
£817.70
from
£817.70
#
006
MPN:
191393
ELECTRO-INJECTOR
-Applicable up to MY 06- -Applicable up to engine No. 99607-
from
£183.77
from
£183.77
#
006
MPN:
213635
ELECTRO-INJECTOR
-Applicable from MY 06- -Applicable from engine No. 99608-
from
£127.26
from
£127.26
#
007
MPN:
133902
GASKET
from
£3.05
from
£3.05
#
008
MPN:
144730
INJECTORS RETENTION CLIP
from
£2.15
from
£2.15
#
009
MPN:
202974
RH CYLINDER BANK INJECTION CONNECTOR CABLES
-Not for USA, CDN- -No longer supplied- -Replaced by 215268-
Supersession
Supersession
#
009
MPN:
209438
RH CYLINDER BANK INJECTION CONNECTOR CABLES
-Applicable for USA, CDN- -Applicable up to Ass. No. 67970-
from
£906.74
from
£906.74
#
009
MPN:
215268
RH CYLINDER BANK INJECTION CONNECTOR CABLES
-Not for USA, CDN- -Applicable up to Ass. No. 69638-
from
£1,402.66
from
£1,402.66
This part replaces part number 202974
#
009
MPN:
219904
RH CYLINDER BANK INJECTION CONNECTOR CABLES
-Applicable from MY 07- -Applicable for USA, CDN- -Applicable from Ass. No. 67971-
from
£576.85
from
£576.85
#
009
MPN:
221338
RH CYLINDER BANK INJECTION CONNECTOR CABLES
-Not for USA, CDN- -Applicable from Ass. No. 69639-
from
£1,254.75
from
£1,254.75
#
010
MPN:
204427
LH CYLINDER BANK INJECTION CONNECTOR CABLES
-Not for USA, CDN- -No longer supplied- -Replaced by 215269-
Supersession
Supersession
#
010
MPN:
209437
LH CYLINDER BANK INJECTION CONNECTOR CABLES
-Applicable for USA, CDN- -Applicable up to Ass. No. 67970-
from
£918.61
from
£918.61
#
010
MPN:
215269
LH CYLINDER BANK INJECTION CONNECTOR CABLES
-Not for USA, CDN- -Applicable up to Ass. No. 69638-
from
£1,800.98
from
£1,800.98
This part replaces part number 204427
#
010
MPN:
219905
LH CYLINDER BANK INJECTION CONNECTOR CABLES
-Applicable from MY 07- -Applicable for USA, CDN- -Applicable from Ass. No. 67971-
from
£1,101.69
from
£1,101.69
#
010
MPN:
221339
LH CYLINDER BANK INJECTION CONNECTOR CABLES
-Applicable for USA, CDN- -Applicable from Ass. No. 69639-
from
£1,626.74
from
£1,626.74
#
011
MPN:
201732
RH REAR SHIELD
-Applicable until depletion-
Supersession
Supersession
#
011
MPN:
201733
LH REAR SHIELD
-Applicable until depletion-
Supersession
Supersession
#
011
MPN:
224383
RH REAR SHIELD
-Applicable after depletion of 201732-
from
£25.47
from
£25.47
This part replaces part number 201732
#
011
MPN:
224384
LH REAR SHIELD
-Applicable after depletion of 201733-
from
£25.47
from
£25.47
This part replaces part number 201733
#
012
MPN:
199215
IGNITION ECU
-Not for USA, CDN- -Applicable up to Ass. No. 57595- -Applicable for F1 gearbox-
Supersession
Supersession
#
012
MPN:
199217
IGNITION ECU
-Not for USA, CDN- -Applicable up to Ass. No. 57595- -Not for F1 gearbox-
Supersession
Supersession
#
012
MPN:
216390
IGNITION ECU
-Applicable up to MY 06- -Applicable for USA, CDN- -Not for F1 gearbox-
from
£2,630.99
from
£2,630.99
#
012
MPN:
216391
IGNITION ECU
-Applicable up to MY 06- -Applicable for USA, CDN- -Applicable for F1 gearbox-
from
£2,631.05
from
£2,631.05
#
012
MPN:
217986
IGNITION ECU
-Not for USA, CDN- -Applicable from Ass. No. 57596 up to Ass. No. 62225- -Applicable for F1 gearbox-
from
£2,635.03
from
£2,635.03
This part replaces part number 199215
#
012
MPN:
217987
IGNITION ECU
-Not for USA, CDN- -Applicable from Ass. No. 57596 up to Ass. No. 62225- -Not for F1 gearbox-
from
£2,995.00
from
£2,995.00
This part replaces part number 199217
#
012
MPN:
222251
IGNITION ECU
-Applicable from MY 06- -Applicable for USA, CDN- -Applicable up to Ass. No. 67970-
from
£2,630.99
from
£2,630.99
#
012
MPN:
222264
IGNITION ECU
-Not for USA, CDN- -Applicable from Ass. No. 62226 up to Ass. No. 69627-
from
£2,630.99
from
£2,630.99
#
012
MPN:
224751
IGNITION ECU
-Germany- -Applicable from MY 06- -Applicable for sound kit-
from
£1,224.65
from
£1,224.65
#
012
MPN:
227392
IGNITION ECU
-Taiwan- -Applicable from MY 06- -Applicable up to Ass. No. 69627-
from
£1,396.29
from
£1,396.29
#
012
MPN:
230386
IGNITION ECU
-Not applicable for sound kit- -Not for USA, CDN- -Applicable up to Ass. No. 69627-
from
£2,637.97
from
£2,637.97
#
012
MPN:
231042
IGNITION ECU
-Applicable from MY 07- -Applicable for USA, CDN- -Applicable up to Ass. No. 71293-
from
£2,630.99
from
£2,630.99
#
012
MPN:
235220
IGNITION ECU
-Not for USA, CDN- -Applicable from Ass. No. 69628 up to Ass. No. 73459-
from
£1,450.20
from
£1,450.20
#
012
MPN:
235222
IGNITION ECU
-Taiwan- -Applicable from Ass. No. 69628 up to Ass. No. 73459-
#
012
MPN:
236837
IGNITION ECU
-Applicable from MY 07- -No temperature sensors- -Applicable up to MY 08- -Applicable for USA, CDN- -Applicable from Ass. No. 71294 up to Ass. No. 74556-
from
£2,675.38
from
£2,675.38
#
012
MPN:
240790
IGNITION ECU
-Applicable up to MY 08- -Not for USA, CDN- -Applicable from Ass. No. 73460 up to Ass. No. 74556-
from
£2,675.38
from
£2,675.38
#
012
MPN:
240791
IGNITION ECU
-Taiwan- -Applicable from Ass. No. 73460-
from
£2,675.38
from
£2,675.38
#
012
MPN:
241764
IGNITION ECU
-Applicable from MY 08- -Not for USA, CDN, J- -Applicable from Ass. No. 74557-
from
£2,685.72
from
£2,685.72
#
012
MPN:
241765
IGNITION ECU
-Applicable from MY 08- -Applicable for USA, CDN- -Applicable from Ass. No. 74557-
from
£2,675.38
from
£2,675.38
#
012
MPN:
246747
IGNITION ECU
-Applicable from MY 08- -Applicable for J-
from
£2,675.38
from
£2,675.38
#
012
MPN:
250922
IGNITION ECU
-Applicable from MY 09- -Applicable for USA, CDN-
from
£2,947.98
from
£2,947.98
#
013
MPN:
192535
RH BRACKET
from
£15.96
from
£15.96
#
013
MPN:
200163
LH BRACKET
from
£72.97
from
£72.97
#
014
MPN:
216545
PROTECTIVE PIPE
from
£5.80
from
£5.80
#
015
MPN:
206739
CABLE TIE
from
£3.63
from
£3.63
This part replaces part number 243232
#
016
MPN:
227941
COMPL. COIL SHIELD
-Applicable for CINA, USA, CDN-
from
£6.63
from
£6.63
This part replaces part number 227940
-part-diagram-0008.webp "FERRARI F430 COUPE (RHD) PNEUMATIC ACTUATOR SYSTEM PARTS DIAGRAM")
-part-diagram-0009.webp "FERRARI F430 COUPE (RHD) FUEL SYSTEM PUMPS AND PIPES PARTS DIAGRAM")
-part-diagram-0010.webp "FERRARI F430 COUPE (RHD) FUEL TANKS AND FILLER NECK PARTS DIAGRAM")
-part-diagram-0011.webp "FERRARI F430 COUPE (RHD) FUEL TANKS - FASTENERS AND GUARDS PARTS DIAGRAM")
-part-diagram-0012.webp "FERRARI F430 COUPE (RHD) EVAPORATIVE EMISSIONS CONTROL SYSTEM PARTS DIAGRAM")
-part-diagram-0013.webp "FERRARI F430 COUPE (RHD) INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-0014.webp "FERRARI F430 COUPE (RHD) AIR INTAKE PARTS DIAGRAM")
-part-diagram-0015.webp "FERRARI F430 COUPE (RHD) INTAKE MANIFOLD COVER PARTS DIAGRAM")
-part-diagram-0016.webp "FERRARI F430 COUPE (RHD) ELECTRONIC ACCELERATOR PEDAL PARTS DIAGRAM")
-part-diagram-0017.webp "FERRARI F430 COUPE (RHD) RACING EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-0018.webp "FERRARI F430 COUPE (RHD) LUBRICATION SYSTEM - TANK - HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-0019.webp "FERRARI F430 COUPE (RHD) OIL / WATER PUMP PARTS DIAGRAM")
-part-diagram-0020.webp "FERRARI F430 COUPE (RHD) HEADER TANK PARTS DIAGRAM")
-part-diagram-0021.webp "FERRARI F430 COUPE (RHD) COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-0022.webp "FERRARI F430 COUPE (RHD) COOLING SYSTEM RADIATORS PARTS DIAGRAM")
-part-diagram-0023.webp "FERRARI F430 COUPE (RHD) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-0024.webp "FERRARI F430 COUPE (RHD) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-0025.webp "FERRARI F430 COUPE (RHD) PEDAL BOARD PARTS DIAGRAM")
-part-diagram-0026.webp "FERRARI F430 COUPE (RHD) PEDAL BOARD PARTS DIAGRAM")
-part-diagram-0027.webp "FERRARI F430 COUPE (RHD) F1 GEARBOX AND CLUTCH HYDRAULIC CONTROL PARTS DIAGRAM")
-part-diagram-0028.webp "FERRARI F430 COUPE (RHD) POWER UNIT AND TANK PARTS DIAGRAM")
-part-diagram-0029.webp "FERRARI F430 COUPE (RHD) GEARBOX - COVERS PARTS DIAGRAM")
-part-diagram-0030.webp "FERRARI F430 COUPE (RHD) PRIMARY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-0031.webp "FERRARI F430 COUPE (RHD) SECONDARY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-0032.webp "FERRARI F430 COUPE (RHD) INTERNAL GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-0033.webp "FERRARI F430 COUPE (RHD) EXTERNAL GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-0034.webp "FERRARI F430 COUPE (RHD) DIFFERENTIAL AND AXLE SHAFT PARTS DIAGRAM")
-part-diagram-0035.webp "FERRARI F430 COUPE (RHD) HYDRAULIC BRAKE AND CLUTCH CONTROLS PARTS DIAGRAM")
-part-diagram-0036.webp "FERRARI F430 COUPE (RHD) POWER STEERING SYSTEM PARTS DIAGRAM")
-part-diagram-0037.webp "FERRARI F430 COUPE (RHD) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0038.webp "FERRARI F430 COUPE (RHD) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0039.webp "FERRARI F430 COUPE (RHD) FRONT AND REAR BRAKE CALLIPERS PARTS DIAGRAM")
-part-diagram-0040.webp "FERRARI F430 COUPE (RHD) PARKING BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-0041.webp "FERRARI F430 COUPE (RHD) HYDRAULIC POWER STEERING BOX AND SERPENTINE COIL PARTS DIAGRAM")
-part-diagram-0042.webp "FERRARI F430 COUPE (RHD) STEERING CONTROL PARTS DIAGRAM")
-part-diagram-0043.webp "FERRARI F430 COUPE (RHD) POWER STEERING PUMP AND RESERVOIR PARTS DIAGRAM")
-part-diagram-0044.webp "FERRARI F430 COUPE (RHD) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0045.webp "FERRARI F430 COUPE (RHD) FRONT SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0046.webp "FERRARI F430 COUPE (RHD) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0047.webp "FERRARI F430 COUPE (RHD) REAR SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0048.webp "FERRARI F430 COUPE (RHD) WHEELS PARTS DIAGRAM")
-part-diagram-0049.webp "FERRARI F430 COUPE (RHD) TYRE PRESSURE MONITORING SYSTEM PARTS DIAGRAM")
-part-diagram-0050.webp "FERRARI F430 COUPE (RHD) BATTERY PARTS DIAGRAM")
-part-diagram-0051.webp "FERRARI F430 COUPE (RHD) ALTERNATOR - STARTER MOTOR PARTS DIAGRAM")
-part-diagram-0052.webp "FERRARI F430 COUPE (RHD) AC SYSTEM COMPRESSOR PARTS DIAGRAM")
-part-diagram-0053.webp "FERRARI F430 COUPE (RHD) TOOLS AND ACCESSORIES PROVIDED WITH VEHICLE PARTS DIAGRAM")
-part-diagram-0054.webp "FERRARI F430 COUPE (RHD) DOCUMENTATION AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0055.webp "FERRARI F430 COUPE (RHD) SPARE WHEEL AND TOOLS PARTS DIAGRAM")
-part-diagram-0100.webp "FERRARI F430 COUPE (RHD) BODYSHELL - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0101.webp "FERRARI F430 COUPE (RHD) CHASSIS - COMPLETE FRONT STRUCTURE AND PANELS PARTS DIAGRAM")
-part-diagram-0102.webp "FERRARI F430 COUPE (RHD) CHASSIS - STRUCTURE, FRONT ELEMENTS AND PANELS PARTS DIAGRAM")
-part-diagram-0103.webp "FERRARI F430 COUPE (RHD) CENTRAL ELEMENTS AND PANELS PARTS DIAGRAM")
-part-diagram-0104.webp "FERRARI F430 COUPE (RHD) CHASSIS - STRUCTURE, REAR ELEMENTS AND PANELS PARTS DIAGRAM")
-part-diagram-0105.webp "FERRARI F430 COUPE (RHD) CHASSIS - REAR ELEMENT SUBASSEMBLIES PARTS DIAGRAM")
-part-diagram-0106.webp "FERRARI F430 COUPE (RHD) ROOF - STRUCTURE PARTS DIAGRAM")
-part-diagram-0107.webp "FERRARI F430 COUPE (RHD) FLAT UNDERTRAY AND WHEELHOUSES PARTS DIAGRAM")
-part-diagram-0108.webp "FERRARI F430 COUPE (RHD) INSULATION PARTS DIAGRAM")
-part-diagram-0109.webp "FERRARI F430 COUPE (RHD) PASSENGER COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0110.webp "FERRARI F430 COUPE (RHD) FRONT COMPARTMENT TRIM PARTS DIAGRAM")
-part-diagram-0111.webp "FERRARI F430 COUPE (RHD) HEADLINER TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0112.webp "FERRARI F430 COUPE (RHD) FRONT LID AND OPENING MECHANISM PARTS DIAGRAM")
-part-diagram-0113.webp "FERRARI F430 COUPE (RHD) ENGINE COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-0114.webp "FERRARI F430 COUPE (RHD) ENGINE COMPARTMENT LID AND FUEL FILLER FLAP OPENING MECHANISMS PARTS DIAGRAM")
-part-diagram-0115.webp "FERRARI F430 COUPE (RHD) DOORS - SUBSTRUCTURE AND TRIM PARTS DIAGRAM")
-part-diagram-0116.webp "FERRARI F430 COUPE (RHD) DOORS - OPENING MECHANISM AND HINGES PARTS DIAGRAM")
-part-diagram-0117.webp "FERRARI F430 COUPE (RHD) DOORS - POWER WINDOWS AND REAR-VIEW MIRROR PARTS DIAGRAM")
-part-diagram-0118.webp "FERRARI F430 COUPE (RHD) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-0119.webp "FERRARI F430 COUPE (RHD) REAR BUMPER PARTS DIAGRAM")
-part-diagram-0120.webp "FERRARI F430 COUPE (RHD) SCREENS, WINDOWS AND SEALS PARTS DIAGRAM")
-part-diagram-0121.webp "FERRARI F430 COUPE (RHD) MANUAL FRONT SEAT - SEAT BELTS PARTS DIAGRAM")
-part-diagram-0122.webp "FERRARI F430 COUPE (RHD) ELECTRIC SEAT - SEAT BELTS PARTS DIAGRAM")
-part-diagram-0123.webp "FERRARI F430 COUPE (RHD) ELECTRIC SEAT - GUIDES AND ADJUSTMENT MECHANISMS PARTS DIAGRAM")
-part-diagram-0124.webp "FERRARI F430 COUPE (RHD) RACING SEAT-4 POINT SEAT HARNESS-ROLLBAR PARTS DIAGRAM")
-part-diagram-0125.webp "FERRARI F430 COUPE (RHD) RACING SEAT-4 POINT SEAT HARNESS-ROLLBAR PARTS DIAGRAM")
-part-diagram-0126.webp "FERRARI F430 COUPE (RHD) TUNNEL - SUBSTRUCTURE AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0127.webp "FERRARI F430 COUPE (RHD) DASHBOARD PARTS DIAGRAM")
-part-diagram-0128.webp "FERRARI F430 COUPE (RHD) GLOVE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0129.webp "FERRARI F430 COUPE (RHD) AIRBAGS PARTS DIAGRAM")
-part-diagram-0130.webp "FERRARI F430 COUPE (RHD) DASHBOARD AND TUNNEL INSTRUMENTS PARTS DIAGRAM")
-part-diagram-0131.webp "FERRARI F430 COUPE (RHD) HEADLIGHTS AND TAILLIGHTS PARTS DIAGRAM")
-part-diagram-0132.webp "FERRARI F430 COUPE (RHD) SHIELDS - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0133.webp "FERRARI F430 COUPE (RHD) WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-0134.webp "FERRARI F430 COUPE (RHD) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-0135.webp "FERRARI F430 COUPE (RHD) FRONT PASSENGER COMPARTMENT ECUS PARTS DIAGRAM")
-part-diagram-0136.webp "FERRARI F430 COUPE (RHD) ECUS AND SENSORS IN FRONT COMPARTMENT AND ENGINE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0137.webp "FERRARI F430 COUPE (RHD) REAR PASSENGER COMPARTMENT ECUS PARTS DIAGRAM")
-part-diagram-0138.webp "FERRARI F430 COUPE (RHD) ANTITHEFT SYSTEM ECUS AND DEVICES PARTS DIAGRAM")
-part-diagram-0139.webp "FERRARI F430 COUPE (RHD) EVAPORATOR UNIT PARTS DIAGRAM")
-part-diagram-0140.webp "FERRARI F430 COUPE (RHD) AC SYSTEM PARTS DIAGRAM")
-part-diagram-0141.webp "FERRARI F430 COUPE (RHD) HI-FI SYSTEM PARTS DIAGRAM")
-part-diagram-0142.webp "FERRARI F430 COUPE (RHD) RADIO AMPLIFIER SYSTEM PARTS DIAGRAM")
-part-diagram-0143.webp "FERRARI F430 COUPE (RHD) HIGH POWER BOSE HI FI SYSTEM PARTS DIAGRAM")
-part-diagram-0144.webp "FERRARI F430 COUPE (RHD) IMMOBILISER KIT PARTS DIAGRAM")
-part-diagram-0145.webp "FERRARI F430 COUPE (RHD) ADHESIVE LABELS AND PLAQUES PARTS DIAGRAM")
-part-diagram-0999.webp "FERRARI F430 COUPE (RHD) COLOUR CODES PARTS DIAGRAM")
-part-diagram-0000.webp "FERRARI F430 COUPE (RHD) SPARE ASSEMBLY UNITS PARTS DIAGRAM")
-part-diagram-0001.webp "FERRARI F430 COUPE (RHD) CRANKCASE PARTS DIAGRAM")
-part-diagram-0002.webp "FERRARI F430 COUPE (RHD) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-0003.webp "FERRARI F430 COUPE (RHD) RIGHT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0004.webp "FERRARI F430 COUPE (RHD) LEFT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0005.webp "FERRARI F430 COUPE (RHD) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")
-part-diagram-0006.webp "FERRARI F430 COUPE (RHD) TIMING SYSTEM - DRIVE PARTS DIAGRAM")
