ferrari f430 coupe (rhd) rear passenger compartment ecus parts diagram

0137 - REAR PASSENGER COMPARTMENT ECUs

Ferrari F430 Coupe (RHD) REAR PASSENGER COMPARTMENT ECUs Parts Diagram

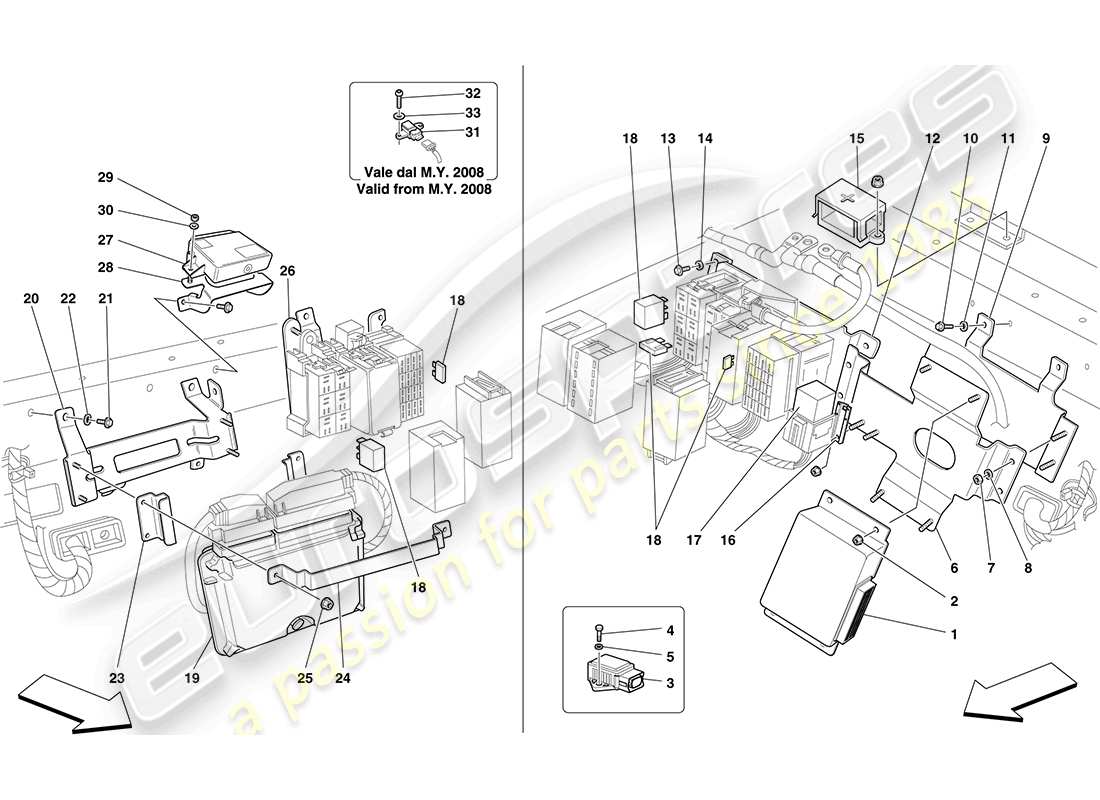

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 199174
DIFFERENTIAL ECU
from £1,005.77
from £1,005.77
This part replaces part number 234789 - and 1 more. Click to view details
DIFFERENTIAL CONTROL STATION (main dealer only) Genuine Ferrari Part - New In stock
DIFFERENTIAL CONTROL STATION (main dealer only) Genuine Ferrari Part - Used In stock
# 002
MPN: 113647
NUT
from £0.53
from £0.53
NUT Genuine Ferrari Part - New In stock
DADO E NYLON STOP M5X5 Genuine Maserati Part - New (to order)
# 003
MPN: 188172
YAW SENSOR
from £347.49
from £347.49
VAW SENSOR Genuine Ferrari Part - New (to order)
YAW SENSOR DRS MM1.0R Genuine Maserati Part - New (to order)
# 004
MPN: 10902424
SCREW
from £0.53
from £0.53
This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
SCREW Genuine Ferrari Part - New In stock
SCREW Genuine Maserati Part - New In stock
# 005
MPN: 12601274
WASHER
from £0.53
from £0.53
This part replaces part number 12601221 - and 5 more. Click to view details
WASHER Genuine Ferrari Part - New In stock
WASHER Genuine Maserati Part - New In stock
# 006
MPN: 67505400
LH UPPER BRACKET
from £10.90
from £10.90
LH UPPER BRACKET Genuine Ferrari Part - New (to order)
LH UPPER BRACKET Genuine Ferrari Part - Used In stock
# 007
MPN: 12575411
NUT
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
Genuine Maserati Part (no longer available to order)
# 008
MPN: 12620474
WASHER
from £0.47
from £0.47
This part replaces part number 12620479 - and 1 more. Click to view details
WASHER Genuine Ferrari Part - New In stock
WASHER Genuine Maserati Part - New In stock
# 009
MPN: 67420900
LH LOWER BRACKET
from £5.62
from £5.62
LH LOWER BRACKET Genuine Ferrari Part - New In stock
LH LOWER BRACKET Genuine Ferrari Part - Used In stock
# 010
MPN: 16296924
SCREW
from £0.52
from £0.52
This part replaces part number 289834
SCREW Genuine Ferrari Part - New In stock
SCREW Genuine Maserati Part - New (to order)
# 011
MPN: 12620474
WASHER
from £0.47
from £0.47
This part replaces part number 12620479 - and 1 more. Click to view details
WASHER Genuine Ferrari Part - New In stock
WASHER Genuine Maserati Part - New In stock
# 012
MPN: 67420800
LH SIDE ECU FASTENER BRACKET
from £8.88
from £8.88
LH SIDE BRACKET FOR CONTRO Genuine Ferrari Part - New (to order)
# 013
MPN: 16296924
SCREW
from £0.50
from £0.50
This part replaces part number 289834
SCREW Genuine Ferrari Part - New In stock
SCREW Genuine Maserati Part - New (to order)
# 014
MPN: 12620474
WASHER
from £0.47
from £0.47
This part replaces part number 12620479 - and 1 more. Click to view details
WASHER Genuine Ferrari Part - New In stock
WASHER Genuine Maserati Part - New In stock
# 015
MPN: 170114
TERMINAL BLOCK
-Also supplied with battery positive cable 198700-
from £7.57
from £7.57
This part replaces part number 153357 - and 2 more. Click to view details
COMPLETE TERMINAL BOX Genuine Ferrari Part - New (to order)
Terminal Board Genuine Maserati Part - New (to order)
COMPLETE TERMINAL BOX Genuine Ferrari Part - Used In stock
# 016
MPN: 155184
BRACKET
from £6.47
from £6.47
STAFFETTA FISS.BLOCCHETTO PO Genuine Ferrari Part - New (to order)
# 017
MPN: 194909
50 A RELAY
-Applicable until depletion-
from £7.44
from £7.44
RELAY 50A Genuine Ferrari Part - New (to order)
RELE' Z.B. SWITCH 50 AMP Genuine Maserati Part - New (to order)
# 017
MPN: 228646
50 A RELAY
-Applicable after depletion of 194909-
from £22.72
from £22.72
RELAY 50 A. Genuine Ferrari Part - New (to order)
RELE' 12V 50A Genuine Maserati Part - New (to order)
# 018
MPN: 161590
20 A MICRO RELAY
-Applicable until depletion-
from £12.85
from £12.85
MICRORELAY 20 AMP Genuine Ferrari Part - New In stock
MICRO-RELAY SWITCH 20A Genuine Maserati Part - New (to order)
# 018
MPN: 161591
20/10 A MICRO RELAY
-Applicable until depletion-
from £7.18
from £7.18
MICRO RELAY 20/10AMP Genuine Ferrari Part - New In stock
MICRO-RELAY FLAP 20/10A Genuine Maserati Part - New (to order)
# 018
MPN: 170061
50 A MAXI FUSE
from £3.33
from £3.33
MAXI FUSE 50 A. Genuine Ferrari Part - New In stock
# 018
MPN: 170093
30 A MAXI FUSE
from £7.78
from £7.78
MAXI FUSE 30 A. Genuine Ferrari Part - New In stock
# 018
MPN: 172871
60 A MAXI FUSE
from £8.28
from £8.28
VALVE Genuine Ferrari Part - New (to order)
# 018
MPN: 172875
5 A MINI FUSE
from £5.70
from £5.70
FUSE 5 A. Genuine Ferrari Part - New In stock
# 018
MPN: 172876
7.5 A MINI FUSE
from £5.59
from £5.59
LITTLE FUSE Genuine Ferrari Part - New In stock
# 018
MPN: 172877
10 A MINI FUSE
from £5.57
from £5.57
LITTLE FUSE Genuine Ferrari Part - New In stock
# 018
MPN: 172878
15 A MINI FUSE
from £4.88
from £4.88
FUSE 15 A. Genuine Ferrari Part - New In stock
# 018
MPN: 172879
20 A MINI FUSE
from £5.74
from £5.74
LITTLE FUSE Genuine Ferrari Part - New In stock
# 018
MPN: 172881
30 A MINI FUSE
from £7.04
from £7.04
LITTLE FUSE Genuine Ferrari Part - New (to order)
# 018
MPN: 172882
30 A MICRO RELAY
-Applicable until depletion-
from £10.32
from £10.32
MICRO-RELAY 30 A. Genuine Ferrari Part - New (to order)
MICRO-RELAY 30 A. Genuine Ferrari Part - Used In stock
# 018
MPN: 183662
IMMOBILIZER/DIAGNOSTIC RELAY
-Applicable until depletion-
from £24.14
from £24.14
DIAGNOSIS RELAY Genuine Ferrari Part - New In stock
IMMOBILIZER/DIAGNOSTICS RELE' ,BO Genuine Maserati Part - New (to order)
# 018
MPN: 227285
20/10 A MICRO RELAY
-Applicable after depletion of 183662-
from £13.86
from £13.86
This part replaces part number 161591 which we have in stock
MICRO-RELAY 20/10 A. Genuine Ferrari Part - New (to order)
MICRO-RELAY FLAP 20/10 AMP Genuine Maserati Part - New (to order)
# 018
MPN: 227285
20/10 A MICRO RELAY
-Applicable after depletion of 161591-
from £13.86
from £13.86
This part replaces part number 161591 which we have in stock
MICRO-RELAY 20/10 A. Genuine Ferrari Part - New (to order)
MICRO-RELAY FLAP 20/10 AMP Genuine Maserati Part - New (to order)
# 018
MPN: 227286
30 A MICRO RELAY
-Applicable after depletion of 172882-
from £21.35
from £21.35
MICRO-RELAY 30 A. Genuine Ferrari Part - New In stock
MICRO-RELAY SWITCH 30 AMP Genuine Maserati Part - New (to order)
# 018
MPN: 227286
30 A MICRO RELAY
-Applicable after depletion of 161590-
from £21.35
from £21.35
MICRO-RELAY 30 A. Genuine Ferrari Part - New In stock
MICRO-RELAY SWITCH 30 AMP Genuine Maserati Part - New (to order)
# 019
MPN: 196228
F1 GEARBOX CONTROL ECU
-Not for Taiwan- -Not for USA, CDN- -Applicable for F1 gearbox- -Applicable up to gearbox No. 3269-
from £2,883.26
from £2,883.26
F1 GEARBOX ELECTRONIC CONTROL UNIT (ECU) Genuine Ferrari Part - New (to order)
# 019
MPN: 217781
F1 GEARBOX CONTROL ECU
-Applicable up to MY 06- -Applicable for USA, CDN- -Applicable for F1 gearbox-
from £914.07
from £914.07
F1 GEARBOX CONTROL UNIT Genuine Ferrari Part - New (to order)
# 019
MPN: 222812
F1 GEARBOX CONTROL ECU
-Not for Taiwan- -Not for USA, CDN- -Applicable for F1 gearbox- -Applicable from gearbox No. 3270 up to gearbox No. 3780 -
from £2,884.80
from £2,884.80
F1 GEAR-BOX ELECTRONIC CONTR Genuine Ferrari Part - New (to order)
# 019
MPN: 222813
F1 GEARBOX CONTROL ECU
-Applicable from MY 06- -Applicable for USA, CDN- -Applicable for F1 gearbox- -Applicable up to gearbox No. 3780-
from £2,884.80
from £2,884.80
F1 GEAR-BOX ELECTRONIC CONTR Genuine Ferrari Part - New In stock
# 019
MPN: 224668
F1 GEARBOX CONTROL ECU
-Applicable for Taiwan- -Applicable for F1 gearbox-
from £1,061.05
from £1,061.05
F1 GEARBOX CONTROL UNIT Genuine Ferrari Part - New (to order)
# 019
MPN: 225039
F1 GEARBOX CONTROL ECU
-Not for Taiwan- -Not for USA, CDN- -Applicable for F1 gearbox- -Applicable from gearbox No. 3781- -No longer supplied- -Replaced by 227028-
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 019
MPN: 225040
F1 GEARBOX CONTROL ECU
-Applicable from MY 06- -Applicable for USA, CDN- -Applicable for F1 gearbox- -Applicable from gearbox No. 3781- -No longer supplied- -Replaced by 227029-
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 019
MPN: 227028
F1 GEARBOX CONTROL ECU
-Not for Taiwan- -Not applicable for sound kit- -Applicable up to MY 08- -Not for USA, CDN- -Applicable up to Ass. No. 74556- -Applicable for F1 gearbox-
from £2,898.79
from £2,898.79
This part replaces part number 225039
F1 GEAR-BOX ELECTRONIC CONTR Genuine Ferrari Part - New (to order)
# 019
MPN: 227029
F1 GEARBOX CONTROL ECU
-Applicable from MY 06- -Applicable up to MY 08- -Applicable for USA, CDN- -Applicable up to Ass. No. 74556- -Applicable for F1 gearbox- -Applicable from gearbox No. 3781-
from £2,898.79
from £2,898.79
This part replaces part number 225040
F1 GEAR-BOX ELECTRONIC CONTR Genuine Ferrari Part - New (to order)
# 019
MPN: 230462
F1 GEARBOX CONTROL ECU
-Not for Taiwan- -Applicable for sound kit- -Applicable up to MY 08- -Not for USA, CDN- -Applicable up to Ass. No. 74556- -Applicable for F1 gearbox- -Applicable from gearbox No. 3781-
from £1,598.58
from £1,598.58
F1 GEARBOX CONTROL UNIT Genuine Ferrari Part - New (to order)
F1 GEARBOX CONTROL UNIT Genuine Ferrari Part - Used In stock
# 019
MPN: 242305
F1 GEARBOX CONTROL ECU
-Not for Taiwan- -Applicable from MY 08- -Not for USA, CDN, J- -Applicable from Ass. No. 74557- -Applicable for F1 gearbox- -No longer supplied- -Replaced by 247772-
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 019
MPN: 242371
F1 GEARBOX CONTROL ECU
-Applicable from MY 08- -Applicable for J- -Applicable from Ass. No. 74557- -Applicable for F1 gearbox- -No longer supplied- -Replaced by 247774-
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 019
MPN: 242373
F1 GEARBOX CONTROL ECU
-Applicable from MY 08- -Not for launch control and easy exit- -Applicable for USA, CDN- -Applicable from Ass. No. 74557- -Applicable for F1 gearbox- -No longer supplied- -Replaced by 247773-
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 019
MPN: 247772
F1 GEARBOX CONTROL ECU
-Not for Taiwan- -Not for USA, CDN, J- -Applicable for F1 gearbox- -Applicable up to gearbox No. 1908-
Supersession
Supersession
This part replaces part number 242305
Genuine Ferrari Part (no longer available to order)
# 019
MPN: 247773
F1 GEARBOX CONTROL ECU
-Not for launch control and easy exit- -Applicable for USA, CDN- -Applicable for F1 gearbox- -No longer supplied- -Replaced by 257041-
Supersession
Supersession
This part replaces part number 242373
Genuine Ferrari Part (no longer available to order)
# 019
MPN: 247774
F1 GEARBOX CONTROL ECU
-Applicable for J- -Applicable for F1 gearbox- -No longer supplied- -Replaced by 257043- -No longer supplied-
Supersession
Supersession
This part replaces part number 242371
Genuine Ferrari Part (no longer available to order)
# 019
MPN: 251619
F1 GEARBOX CONTROL ECU
-Not for Taiwan- -Not for USA, CDN, J- -Applicable for F1 gearbox- -Applicable from gearbox No. 1909- -No longer supplied- -Replaced by 257044-
Supersession
Supersession
This part replaces part number 247772
Genuine Ferrari Part (no longer available to order)
# 019
MPN: 257041
F1 GEARBOX CONTROL ECU
-Not for launch control and easy exit- -Applicable for USA, CDN- -Applicable for F1 gearbox-
from £910.40
from £910.40
This part replaces part number 247773
F1 GEAR-BOX ELECTRONIC CONTR Genuine Ferrari Part - New (to order)
# 019
MPN: 257043
F1 GEARBOX CONTROL ECU
-Applicable for J- -Applicable for F1 gearbox-
from £910.40
from £910.40
This part replaces part number 247774
F1 GEAR-BOX ELECTRONIC CONTR Genuine Ferrari Part - New (to order)
# 019
MPN: 257044
F1 GEARBOX CONTROL ECU
-Not for Taiwan- -Not for USA, CDN, J- -Applicable for F1 gearbox- -VIN REQUIRED
from £910.40
from £910.40
This part replaces part number 251619
F1 GEAR-BOX ELECTRONIC (MAIN DEALER ONLY) Genuine Ferrari Part - New (to order)
# 020
MPN: 67421000
RH LOWER BRACKET
from £9.39
from £9.39
RH LOWER BRACKET Genuine Ferrari Part - New (to order)
RH LOWER BRACKET Genuine Ferrari Part - Used In stock
# 021
MPN: 16296924
SCREW
from £0.51
from £0.51
This part replaces part number 289834
SCREW Genuine Ferrari Part - New In stock
SCREW Genuine Maserati Part - New (to order)
# 022
MPN: 12620474
WASHER
from £0.47
from £0.47
This part replaces part number 12620479 - and 1 more. Click to view details
WASHER Genuine Ferrari Part - New In stock
WASHER Genuine Maserati Part - New In stock
# 023
MPN: 67420500
RH UPPER BRACKET
from £5.30
from £5.30
RH UPPER BRACKET Genuine Ferrari Part - New (to order)
# 024
MPN: 68277800
ECU FASTENER BRACKET
-Applicable for F1 gearbox-
from £7.56
from £7.56
CONTROL UNIT FIXING BRACKET Genuine Ferrari Part - New (to order)
# 025
MPN: 12575411
NUT
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
Genuine Maserati Part (no longer available to order)
# 026
MPN: 67421100
RH BRACKET
from £26.66
from £26.66
RH BRACKET Genuine Ferrari Part - New (to order)
# 027
MPN: 227934
PARKING SENSOR ECU
-Parking sensors- -Optional-
from £112.52
from £112.52
CONTROL UNIT. Genuine Ferrari Part - New (to order)
# 028
MPN: 68813500
ECU FASTENER BRACKET
-Parking sensors- -Optional-
from £17.89
from £17.89
BRACKET. Genuine Ferrari Part - New (to order)
# 029
MPN: 113647
NUT
-Parking sensors- -Optional-
from £0.53
from £0.53
NUT Genuine Ferrari Part - New In stock
DADO E NYLON STOP M5X5 Genuine Maserati Part - New (to order)
# 030
MPN: 12601174
WASHER
-Parking sensors- -Optional-
from £0.54
from £0.54
This part replaces part number 12601173 which we have in stock - and 5 more. Click to view details
WASHER Genuine Ferrari Part - New In stock
WASHER Genuine Maserati Part - New In stock
# 031
MPN: 206071
ACCELERATION SENSOR
-Applicable from MY 08- -Applicable from Ass. No. 74557-
from £87.42
from £87.42
ACCELERATION SENSOR Genuine Ferrari Part - New (to order)
LONGITUD. ACCELER. SENSOR FOR ESP Genuine Maserati Part - New (to order)
# 032
MPN: 10902424
SCREW
from £0.53
from £0.53
This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
SCREW Genuine Ferrari Part - New In stock
SCREW Genuine Maserati Part - New In stock
# 032
MPN: 62940900
SCREW
-Applicable from MY 08- -Applicable from Ass. No. 74557- -No longer supplied- -Replaced by 10902424-
from £0.84
from £0.84
This part replaces part number 67352400
SCREW Genuine Ferrari Part - New (to order)
VITE M 6X15 TBEI A ESLOK Genuine Maserati Part - New (to order)
# 033
MPN: 12644478
WASHER
-Applicable from MY 08- -Applicable from Ass. No. 74557-
from £0.47
from £0.47
WASHER Genuine Ferrari Part - New (to order)
WASHER Genuine Maserati Part - New In stock
# 034
MPN: 251453
DIODE
-Imagine not available-
from £51.42
from £51.42
DIODE Genuine Ferrari Part - New (to order)
Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
