009 - Fuel Tanks

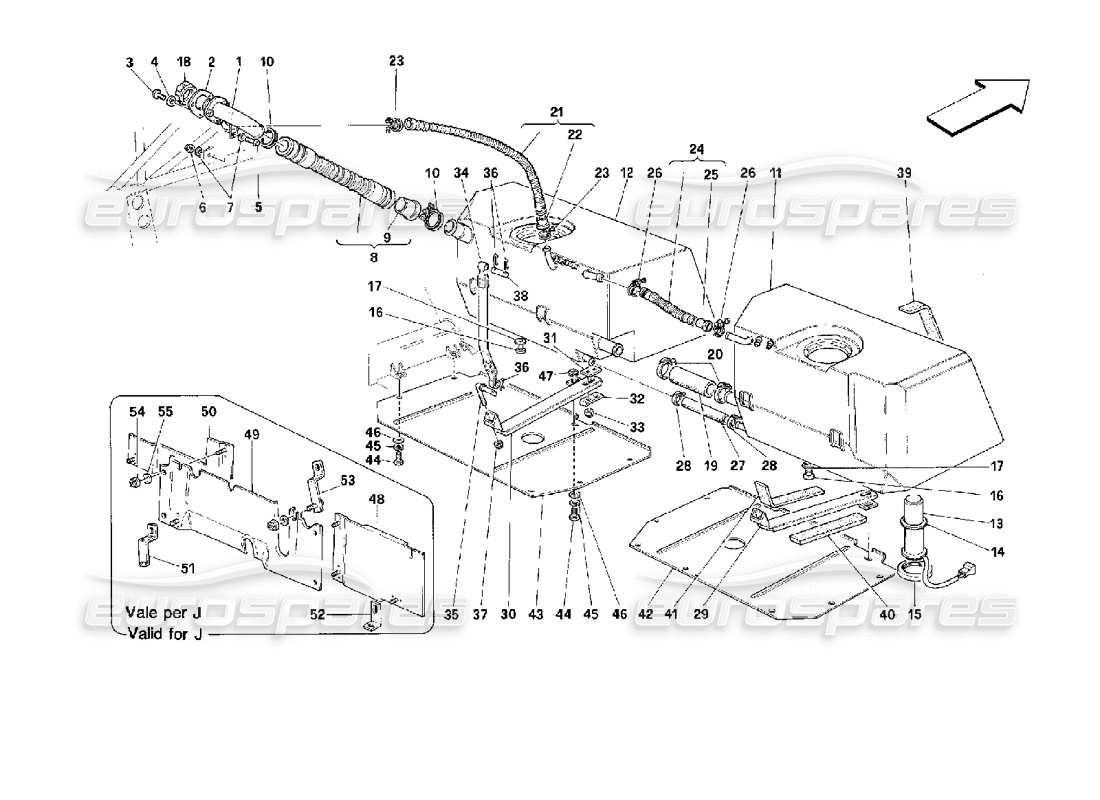

Ferrari 512 M Fuel Tanks Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 146946
FILL TUBE
- Not for SA and ZA
from £103.77
from £103.77
# 001
MPN: 151611
FILL TUBE
- Valid for SA and ZA
from £280.45
from £280.45
# 002
MPN: 123897
GASKET
Supersession
Supersession
# 003
MPN: 62926700
SCREW
from £0.71
from £0.71
This part replaces part number 13276470 which we have in stock - and 1 more. Click to view details
# 004
MPN: 12601274
WASHER
from £0.53
from £0.53
This part replaces part number 12601221 - and 5 more. Click to view details
# 005
MPN: 10902421
SCREW
from £0.54
from £0.54
# 006
MPN: 14058411
NUT
from £0.54
from £0.54
# 007
MPN: 12646601
WASHER
from £0.71
from £0.71
# 008
MPN: 146943
TUBE
from £45.38
from £45.38
# 009
MPN: 141033
GASKET
from £11.97
from £11.97
# 010
MPN: 165398
CLAMP
from £0.67
from £0.67
# 011
MPN: 146967

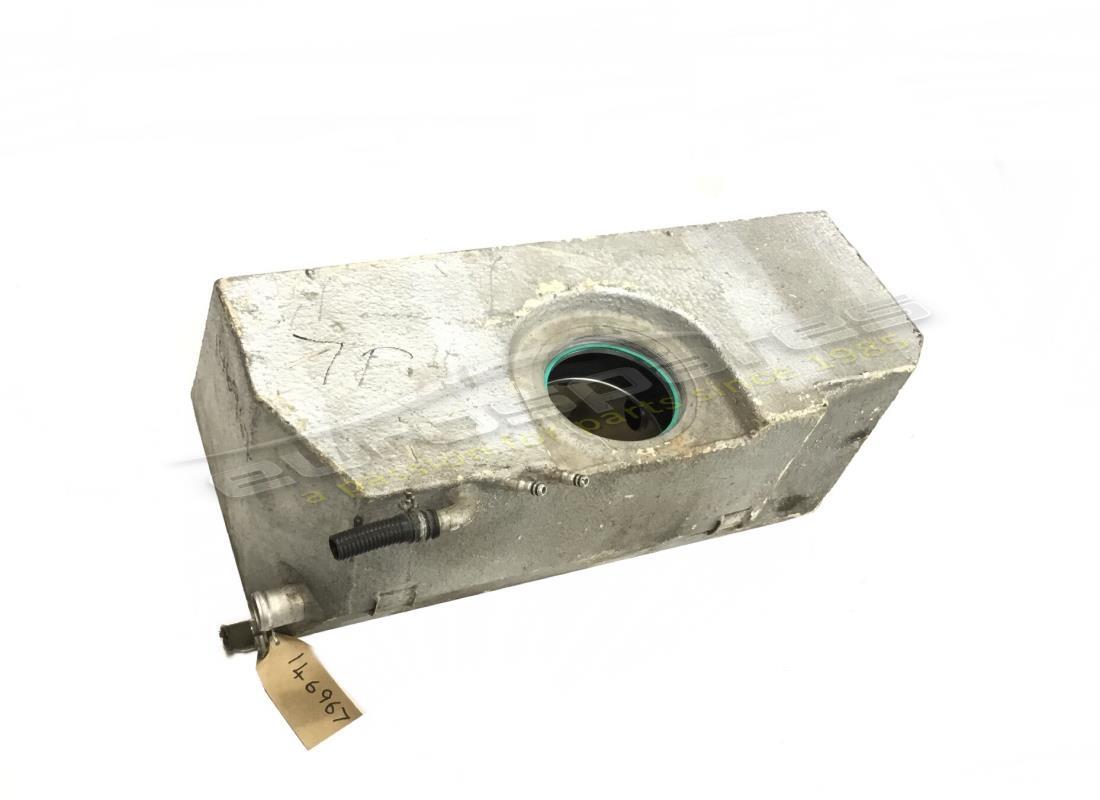

RH FUEL TANK
from £776.25
from £776.25
# 012
MPN: 148095

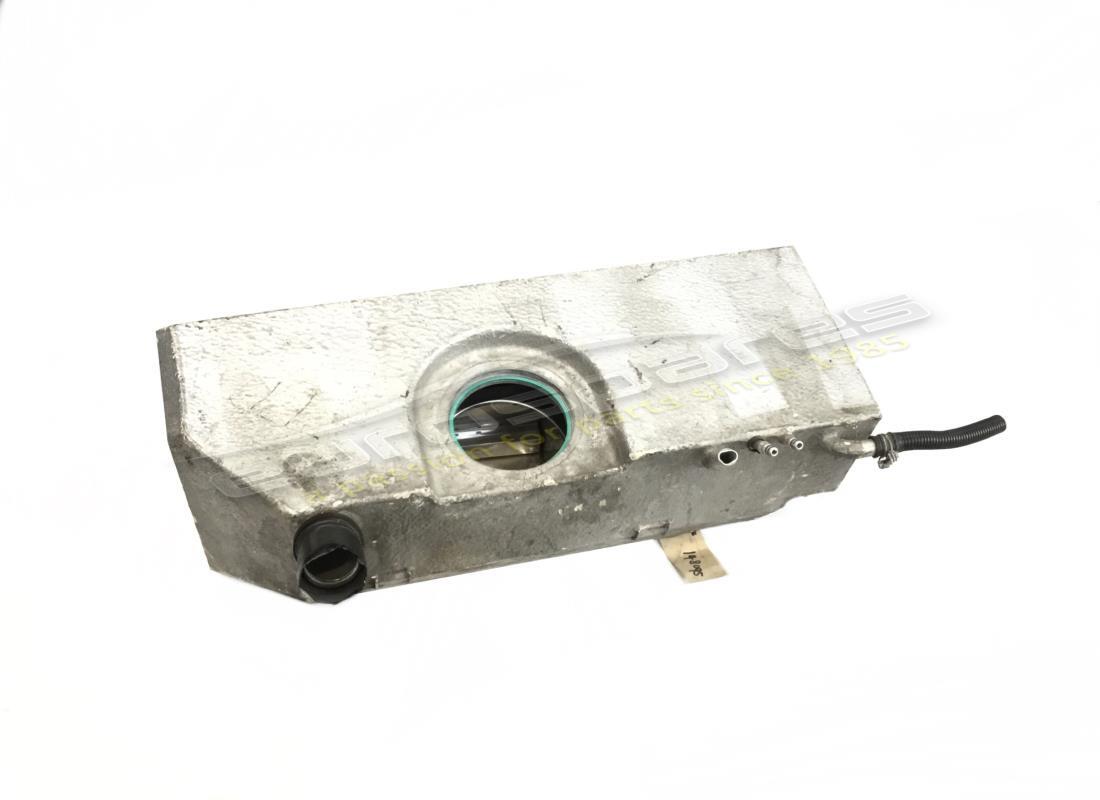

LH FUEL TANK
from £862.83
from £862.83
This part replaces part number 146968 - and 1 more. Click to view details
# 013
MPN: 144849
GAUGE
from £425.00
from £425.00
This part replaces part number 132134
# 014
MPN: 154802
GASKET
from £17.68
from £17.68
This part replaces part number 116792 - and 2 more. Click to view details
# 015
MPN: 121435
RING NUT
from £46.24
from £46.24
This part replaces part number 116012 - and 6 more. Click to view details
# 016
MPN: 148045
CAP
from £11.20
from £11.20
# 017
MPN: 123622
GASKET
from £0.87
from £0.87
# 018
MPN: 180320
FUEL CAP
from £95.00
from £95.00
# 019
MPN: 154023
TUBE
from £61.79
from £61.79
This part replaces part number 150384
# 020
MPN: 13000590
CLAMP
from £0.47
from £0.47
This part replaces part number 105622 - and 2 more. Click to view details
# 021
MPN: 147244
TUBE
from £19.17
from £19.17
# 022
MPN: 142106
GASKET
from £4.64
from £4.64
# 023
MPN: 13432870
SCREW COLLAR
from £7.18
from £7.18
This part replaces part number 164015
# 023
MPN: 164015
CLAMP
- Valid after stock exhaustion of 12181290
Supersession
Supersession
This part replaces part number 12181290
# 024
MPN: 147246
TUBE
Supersession
Supersession
This part replaces part number 147247
# 025
MPN: 142106
GASKET
from £4.64
from £4.64
# 026
MPN: 13432870
SCREW COLLAR
from £7.18
from £7.18
This part replaces part number 164015
# 026
MPN: 164015
CLAMP
- Valid after stock exhaustion of 12181290
Supersession
Supersession
This part replaces part number 12181290
# 027
MPN: 117873
TUBE
Supersession
Supersession
This part replaces part number 150462
# 028
MPN: 13000390
CLAMP
from £0.53
from £0.53
This part replaces part number 12179590 - and 1 more. Click to view details
# 029
MPN: 147946
RH BRACKET
from £45.65
from £45.65
# 030
MPN: 147947
LH BRACKET
from £47.31
from £47.31
# 031
MPN: 147948
SPACER
from £1.37
from £1.37
# 032
MPN: 115734

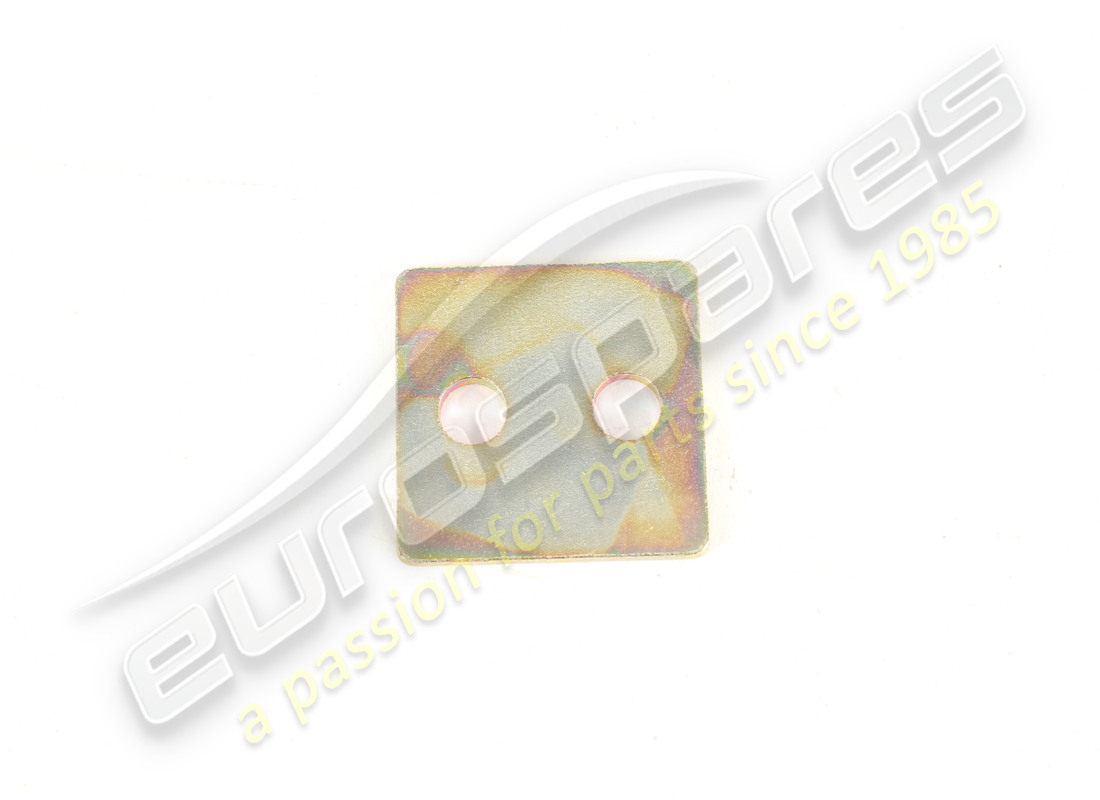

PLATE
from £2.00
from £2.00
# 033
MPN: 14058411
NUT
from £0.51
from £0.51
# 034
MPN: 122797
STRAP FUEL TANK
from £11.08
from £11.08
# 035
MPN: 127529
TIE ROD
from £120.41
from £120.41
This part replaces part number 12311271 - and 15 more. Click to view details
# 036
MPN: 10796440
SPLIT PIN
from £0.71
from £0.71
This part replaces part number 10796401 - and 1 more. Click to view details
# 037
MPN: 104030
SELF LOCKING NUT
from £0.53
from £0.53
This part replaces part number 16104125
# 038
MPN: 103447
PIN
from £12.86
from £12.86
# 039
MPN: 125036
SPACER
from £4.04
from £4.04
# 040
MPN: 125037
SPACER
from £2.00
from £2.00
# 041
MPN: 125035
SPACER
from £1.67
from £1.67
This part replaces part number 141261
# 042
MPN: 146974
RH PANEL
- Not for GD
from £80.40
from £80.40
# 042
MPN: 150381
RH PANEL
- Valid for GD
from £105.10
from £105.10
# 043
MPN: 146975
LH PANEL
- Not for GD
from £80.40
from £80.40
# 043
MPN: 150382
LH PANEL
- Valid for GD
from £105.10
from £105.10
# 044
MPN: 10902124
SCREW
from £0.48
from £0.48
This part replaces part number 10902111 - and 1 more. Click to view details
# 045
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.48
from £0.48
This part replaces part number 10516470 - and 4 more. Click to view details
# 046
MPN: 12643701
WASHER
Supersession
Supersession
This part replaces part number 12643704 - and 1 more. Click to view details
# 047
MPN: 60758600
GAGED NUT
from £0.51
from £0.51
# 048
MPN: 153150
RH SHIELD
- Valid for J
from £192.04
from £192.04
# 049
MPN: 153151
CENTRAL SHIELD
- Valid for J
from £532.82
from £532.82
# 050
MPN: 153152
LH SHIELD
- Valid for J
from £800.50
from £800.50
# 051
MPN: 153155
LOWER BRACKET
- Valid for J
from £9.42
from £9.42
# 052
MPN: 153156
RH LOWER BRACKET
- Valid for J
from £10.59
from £10.59
# 053
MPN: 153154
UPPER BRACKET
- Valid for J
from £9.42
from £9.42
# 054
MPN: 14058411
NUT
- Valid for J
from £0.50
from £0.50
# 055
MPN: 12644401
WASHER
- Valid for J
from £0.47
from £0.47
