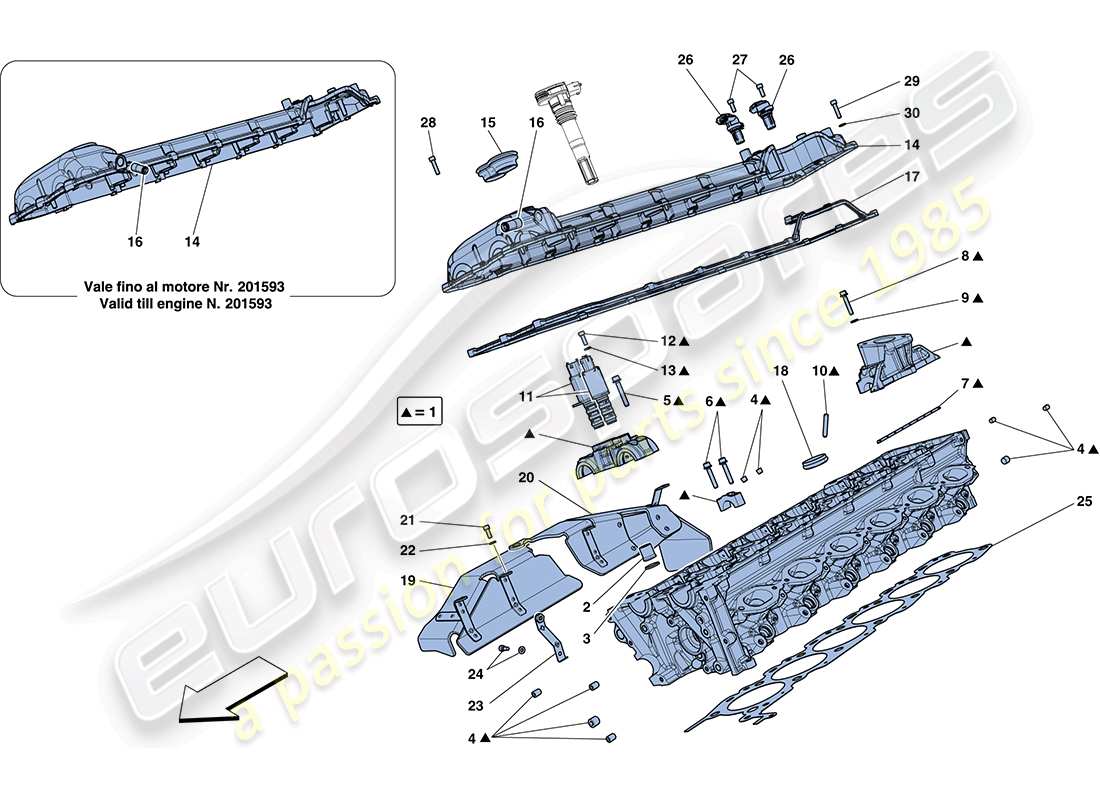

Ferrari FF (Europe) RIGHT HAND CYLINDER HEAD Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Key
                      Price
                      # 001
                      MPN: 273223
                      RH HEAD
                      -Applicable up to engine No. 201593-
                      Supersession
                      Supersession
                      Genuine Ferrari Part (no longer available to order)
                      # 001
                      MPN: 300331
                      RH HEAD
                      -Applicable from engine No. 201594-
                      from £2,013.49
                      from £2,013.49
                      This part replaces part number 273223
                      RH HEAD Genuine Ferrari Part - New (to order)
                      # 002
                      MPN: 183524
                      NUT
                      -Fastening head to crankcase-
                      from £1.19
                      from £1.19
                      NUT. Genuine Ferrari Part - New In stock
                      Genuine Maserati Part (no longer available to order)
                      NUT. Genuine Ferrari Part - Used In stock
                      # 003
                      MPN: 151117
                      WASHER
                      -Fastening head to crankcase-
                      from £0.31
                      from £0.31
                      WASHER Genuine Ferrari Part - New In stock
                      WASHER Genuine Maserati Part - New In stock
                      WASHER Genuine Ferrari Part - Used In stock
                      # 004
                      MPN: 10275501
                      THREADED PLUG
                      -M12 X 11- -No longer supplied- -Replaced by 282400-
                      from £0.58
                      from £0.58
                      THREADED PLUG Genuine Ferrari Part - New (to order)
                      TAPPO FILETT.CON. M 12X 11 Genuine Maserati Part - New (to order)
                      # 004
                      MPN: 127635
                      THREADED PLUG
                      -M18 X 11 X 1.5- -Inspection hole cover-
                      from £1.44
                      from £1.44
                      This part replaces part number 183447
                      PLUG Genuine Ferrari Part - New (to order)
                      THREADED PLUG Genuine Maserati Part - New (to order)
                      # 004
                      MPN: 127635
                      THREADED PLUG
                      -M18 X 11 X 1.5- -For rear water orifice cover-
                      from £1.44
                      from £1.44
                      This part replaces part number 183447
                      PLUG Genuine Ferrari Part - New (to order)
                      THREADED PLUG Genuine Maserati Part - New (to order)
                      # 004
                      MPN: 14326001
                      THREADED PLUG
                      -D. 10 X 1.25- -For oil circuit orifices- -No longer supplied- -Replaced by 282755-
                      from £0.47
                      from £0.47
                      This part replaces part number 194495
                      PLUG Genuine Ferrari Part - New (to order)
                      THREADED PLUG FOR GEARBOX Genuine Maserati Part - New (to order)
                      # 004
                      MPN: 199760
                      THREADED PLUG
                      -D. 6 X 1-
                      from £0.52
                      from £0.52
                      THREADED PLUG Genuine Ferrari Part - New (to order)
                      TAPERED THREADED PLUG 6X1 Genuine Maserati Part - New In stock
                      # 004
                      MPN: 282400
                      THREADED PLUG
                      -M12 X 11-
                      from £1.98
                      from £1.98
                      CAP Genuine Ferrari Part - New (to order)
                      # 004
                      MPN: 282755
                      THREADED PLUG
                      -D. 10 X 1.25- -For oil circuit orifices-
                      from £1.16
                      from £1.16
                      THREADED PLUG Genuine Ferrari Part - New (to order)
                      THREADED PLUG Genuine Maserati Part - New (to order)
                      # 005
                      MPN: 243720
                      SCREW
                      -M6 X 40-
                      from £0.53
                      from £0.53
                      SCREW -M6X40- Genuine Ferrari Part - New (to order)
                      # 005
                      MPN: 243721
                      SCREW WITH WASHER
                      -M6 X 45-
                      from £0.53
                      from £0.53
                      SCREW Genuine Ferrari Part - New (to order)
                      SOCKET HEAD SCREW M 6X45 Genuine Maserati Part - New (to order)
                      # 006
                      MPN: 243719
                      SCREW WITH WASHER
                      -M6 X 35-
                      from £0.50
                      from £0.50
                      SCREW Genuine Ferrari Part - New (to order)
                      SOCKET HEAD SCREW M 6X35 Genuine Maserati Part - New (to order)
                      # 007
                      MPN: 239614
                      GASKET
                      from £3.73
                      from £3.73
                      GASKET Genuine Ferrari Part - New In stock
                      # 008
                      MPN: 239502
                      SCREW
                      -M6 X 25-
                      from £0.54
                      from £0.54
                      SCREW -M6X 25- Genuine Ferrari Part - New In stock
                      # 008
                      MPN: 243719
                      SCREW WITH WASHER
                      -M6 X 35-
                      from £0.54
                      from £0.54
                      SCREW Genuine Ferrari Part - New (to order)
                      SOCKET HEAD SCREW M 6X35 Genuine Maserati Part - New (to order)
                      # 009
                      MPN: 11197774
                      WASHER
                      from £0.54
                      from £0.54
                      This part replaces part number 11197770 - and 3 more. Click to view details
                      WASHER Genuine Ferrari Part - New In stock
                      WASHER Genuine Maserati Part - New In stock
                      # 010
                      MPN: 13541324
                      STUD BOLT
                      -M6 X 12- -Shank length 25 mm- -Fastening intake manifold-
                      from £0.92
                      from £0.92
                      This part replaces part number 13541321
                      STUD BOLT Genuine Ferrari Part - New (to order)
                      # 010
                      MPN: 13541424
                      STUD BOLT
                      -M6 X 12- -Shank length 28 mm- -Fastening intake manifold on alignment pins-
                      from £0.51
                      from £0.51
                      This part replaces part number 13541421
                      STUD Genuine Ferrari Part - New (to order)
                      # 010
                      MPN: 211641
                      STUD BOLT
                      -M8 X 16- -Shank length 24 mm- -Fastening exhaust manifold-
                      from £0.66
                      from £0.66
                      STUD Genuine Ferrari Part - New In stock
                      # 011
                      MPN: 255442
                      OIL PRESSURE REGULATOR VALVE
                      -Applicable until depletion-
                      from £82.48
                      from £82.48
                      Genuine Ferrari Part (no longer available to order)
                      OIL PRESSURE REGULATOR VALVE Genuine Ferrari Part - Used In stock
                      # 011
                      MPN: 296017
                      OIL PRESSURE REGULATOR VALVE
                      from £58.94
                      from £58.94
                      This part replaces part number 269227 - and 3 more. Click to view details
                      OIL PRESSURE REGULATOR VALVE Genuine Ferrari Part - New In stock
                      Genuine Maserati Part (no longer available to order)
                      OIL PRESSURE REGULATOR VALVE Genuine Ferrari Part - Used In stock
                      # 011
                      MPN: 296017
                      OIL PRESSURE REGULATOR VALVE
                      from £58.94
                      from £58.94
                      This part replaces part number 269227 - and 3 more. Click to view details
                      OIL PRESSURE REGULATOR VALVE Genuine Ferrari Part - New In stock
                      Genuine Maserati Part (no longer available to order)
                      OIL PRESSURE REGULATOR VALVE Genuine Ferrari Part - Used In stock
                      # 012
                      MPN: 14304224
                      SCREW
                      -M5 X 16-
                      from £0.53
                      from £0.53
                      SCREW Genuine Ferrari Part - New In stock
                      SCREW Genuine Maserati Part - New (to order)
                      # 013
                      MPN: 11181574
                      WASHER
                      from £0.54
                      from £0.54
                      WASHER Genuine Ferrari Part - New In stock
                      TAPERED RUBBER WASHER D. 5.3-1 Genuine Maserati Part - New (to order)
                      # 014
                      MPN: 271268
                      RH CYLINDER HEAD COVER
                      -Applicable up to engine No. 201593-
                      from £358.94
                      from £358.94
                      RH CYLINDER HEAD COVER Genuine Ferrari Part - New (to order)
                      # 014
                      MPN: 292565
                      RH CYLINDER HEAD COVER
                      -Applicable from engine No. 201594-
                      from £374.73
                      from £374.73
                      RH CYLINDER HEAD COVER Genuine Ferrari Part - New (to order)
                      # 015
                      MPN: 229353
                      SOLENOID VALVE GASKET
                      from £9.94
                      from £9.94
                      GASKET Genuine Ferrari Part - New In stock
                      # 016
                      MPN: 271521
                      CONNECTOR
                      from £3.42
                      from £3.42
                      CONNECTOR Genuine Ferrari Part - New (to order)
                      # 017
                      MPN: 243800
                      RH HEAD COVER GASKET
                      from £43.23
                      from £43.23
                      RH HEAD COVER GASKET Genuine Ferrari Part - New In stock
                      # 018
                      MPN: 223982
                      SPARK PLUG TUBE SEAL
                      from £1.40
                      from £1.40
                      SPARK PLUG TUBE SEAL Genuine Ferrari Part - New In stock
                      SPARK PLUG SLEEVE GASKET Genuine Maserati Part - New In stock
                      # 019
                      MPN: 276022
                      COMPL. RH FRONT HEAD HEAT SHIELD
                      -After depletion, also order rear shield 295113- -Applicable until depletion-
                      from £40.70
                      from £40.70
                      Genuine Ferrari Part (no longer available to order)
                      RH FRONT HEAD HEAT SHIELD COMPLETE Genuine Ferrari Part - Used In stock
                      # 019
                      MPN: 295112
                      COMPL. RH FRONT HEAD HEAT SHIELD
                      -Applicable after depletion of 276022-
                      from £303.32
                      from £303.32
                      This part replaces part number 276022 which we have in stock
                      COMPLETE RH FRONT HEAD HEAT SH Genuine Ferrari Part - New (to order)
                      # 020
                      MPN: 276024
                      COMPL. RH REAR HEAD HEAT SHIELD
                      -After depletion, also order front shield 295112- -Applicable until depletion-
                      from £62.38
                      from £62.38
                      Genuine Ferrari Part (no longer available to order)
                      RH REAR HEAD HEAT SHIELD COMPLETE Genuine Ferrari Part - Used In stock
                      # 020
                      MPN: 295113
                      COMPL. RH REAR HEAD HEAT SHIELD
                      -Applicable after depletion of 276024-
                      from £133.67
                      from £133.67
                      This part replaces part number 276024 which we have in stock
                      COMPLETE RH REAR HEAD HEAT SHI Genuine Ferrari Part - New (to order)
                      # 021
                      MPN: 14305724
                      SCREW
                      -M6 X 14-
                      from £0.53
                      from £0.53
                      This part replaces part number 11567624 - and 2 more. Click to view details
                      SCREW Genuine Ferrari Part - New In stock
                      SCREW Genuine Maserati Part - New (to order)
                      # 022
                      MPN: 11197774
                      WASHER
                      from £0.53
                      from £0.53
                      This part replaces part number 11197770 - and 3 more. Click to view details
                      WASHER Genuine Ferrari Part - New In stock
                      WASHER Genuine Maserati Part - New In stock
                      # 023
                      MPN: 252099
                      SHIELD MOUNTING BRACKET
                      from £9.15
                      from £9.15
                      SHIELD MOUNTING BRACKET Genuine Ferrari Part - New (to order)
                      # 024
                      MPN: 231616
                      SCREW
                      -M6 X 14-
                      from £0.54
                      from £0.54
                      This part replaces part number 14305724 which we have in stock
                      Genuine Ferrari Part (no longer available to order)
                      SCREW Genuine Maserati Part - New (to order)
                      # 025
                      MPN: 243803
                      RH HEAD-CRANKCASE GASKET
                      -Applicable until depletion-
                      Supersession
                      Supersession
                      Genuine Ferrari Part (no longer available to order)
                      # 025
                      MPN: 324013
                      RH HEAD-CRANKCASE GASKET
                      -Applicable after depletion of 243803-
                      from £144.12
                      from £144.12
                      This part replaces part number 243803
                      RH HEAD-CRANKCASE GASKET Genuine Ferrari Part - New (to order)
                      # 026
                      MPN: 224573
                      TIMING SENSOR
                      from £13.52
                      from £13.52
                      PHASE SENSOR Genuine Ferrari Part - New In stock
                      TIMING SENSOR Genuine Maserati Part - New (to order)
                      PHASE SENSOR Genuine Ferrari Part - Used In stock
                      # 027
                      MPN: 231616
                      SCREW
                      -M6 X 14-
                      from £0.53
                      from £0.53
                      This part replaces part number 14305724 which we have in stock
                      Genuine Ferrari Part (no longer available to order)
                      SCREW Genuine Maserati Part - New (to order)
                      # 028
                      MPN: 157218
                      SCREW
                      -M6 X 25- -Applicable from engine No. 201498-
                      from £0.54
                      from £0.54
                      SCREW. Genuine Ferrari Part - New (to order)
                      SOCKET HEAD SCREW M 6X 25 Genuine Maserati Part - New In stock
                      # 028
                      MPN: 208765
                      STUD BOLT
                      -Applicable up to engine No. 201497-
                      from £3.15
                      from £3.15
                      STUD BOLT Genuine Ferrari Part - New (to order)
                      # 029
                      MPN: 14305724
                      SCREW
                      -M6 X 14-
                      from £0.54
                      from £0.54
                      This part replaces part number 11567624 - and 2 more. Click to view details
                      SCREW Genuine Ferrari Part - New In stock
                      SCREW Genuine Maserati Part - New (to order)
                      # 029
                      MPN: 157218
                      SCREW
                      -M6 X 25-
                      from £0.48
                      from £0.48
                      SCREW. Genuine Ferrari Part - New (to order)
                      SOCKET HEAD SCREW M 6X 25 Genuine Maserati Part - New In stock
                      # 029
                      MPN: 157218
                      SCREW
                      -M6 X 25- -Applicable up to engine No. 201593-
                      from £0.53
                      from £0.53
                      SCREW. Genuine Ferrari Part - New (to order)
                      SOCKET HEAD SCREW M 6X 25 Genuine Maserati Part - New In stock
                      # 029
                      MPN: 284200
                      SCREW
                      -M6 X 25- -Applicable from engine No. 201594- -Applicable until depletion-
                      Supersession
                      Supersession
                      Genuine Ferrari Part (no longer available to order)
                      # 029
                      MPN: 293278
                      SCREW
                      -Applicable from engine No. 201594- -Applicable after depletion of 284200-
                      from £7.28
                      from £7.28
                      This part replaces part number 284200
                      SCREW Genuine Ferrari Part - New (to order)
                      # 030
                      MPN: 11197774
                      WASHER
                      from £0.51
                      from £0.51
                      This part replaces part number 11197770 - and 3 more. Click to view details
                      WASHER Genuine Ferrari Part - New In stock
                      WASHER Genuine Maserati Part - New In stock
                      # 030
                      MPN: 11197774
                      WASHER
                      from £0.52
                      from £0.52
                      This part replaces part number 11197770 - and 3 more. Click to view details
                      WASHER Genuine Ferrari Part - New In stock
                      WASHER Genuine Maserati Part - New In stock
                      # 030
                      MPN: 11198074
                      WASHER
                      -Applicable from engine No. 201594-
                      from £0.54
                      from £0.54
                      This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                      WASHER Genuine Ferrari Part - New In stock
                      TAPERED RUBBER WASHER D8.5-15X1.8 Genuine Maserati Part - New (to order)
                      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
