ferrari ff (europe) fuel tanks and filler neck parts diagram

0010 - FUEL TANKS AND FILLER NECK

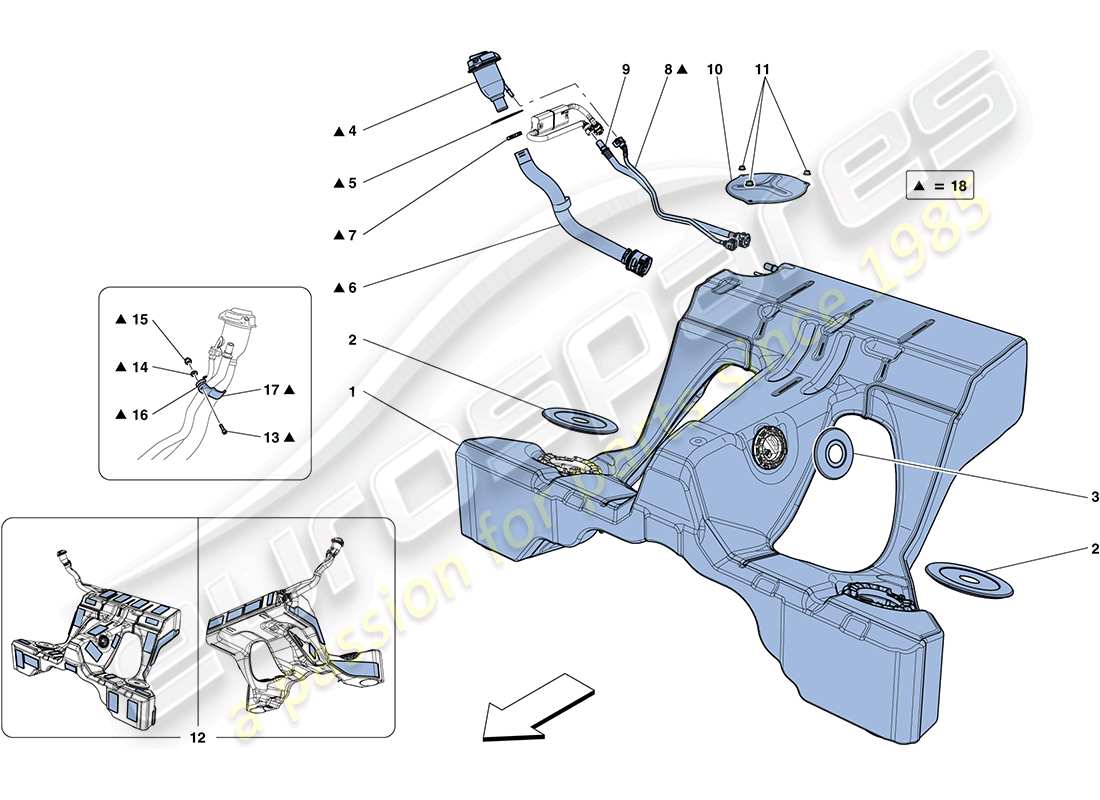

Ferrari FF (Europe) FUEL TANKS AND FILLER NECK Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 001
          MPN: 264033

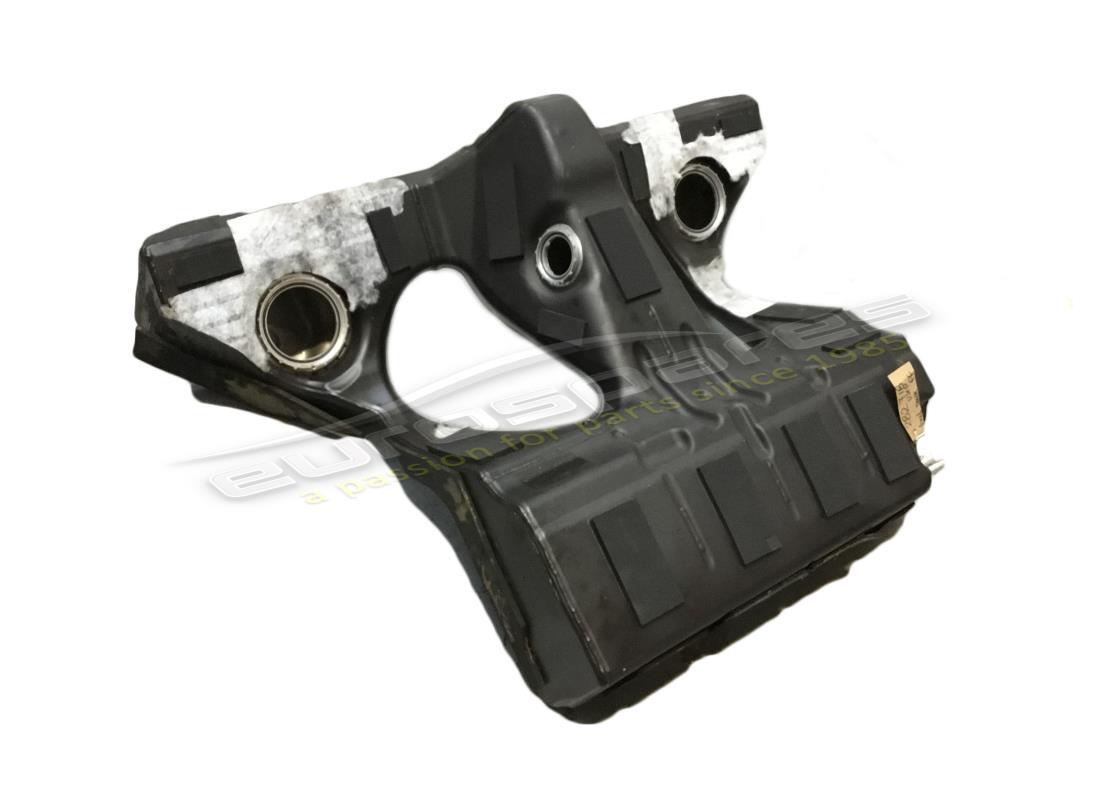

          FUEL TANK
          -Applicable up to Ass. No. 102155- -No longer supplied- -Replaced by 282718-
          from £3,184.73
          from £3,184.73
          FUEL TANK Genuine Ferrari Part - New (to order)
          # 001
          MPN: 282718
          FUEL TANK
          -For cars up to Ass.No. 102155, order also the ring 275998 tab.9 ref.4, screw 256323 tab.9 ref.29, stud-bolt 11001124 tab.9 ref.30, nut 14040514 tab.9 ref.31, level sensor 273540 tab.9 ref.1, ring 276001 tab.9 ref.28-
          from £1,806.25
          from £1,806.25
          FUEL TANK Genuine Ferrari Part - New (to order)
          FUEL TANK Genuine Ferrari Part - Used In stock
          # 002
          MPN: 250481
          INSPECTION CAP
          from £14.61
          from £14.61
          PUMP PLUG Genuine Ferrari Part - New (to order)
          PUMP PLUG Genuine Ferrari Part - Used In stock
          # 003
          MPN: 250480
          INSPECTION CAP
          from £8.59
          from £8.59
          PLUG Genuine Ferrari Part - New (to order)
          PLUG Genuine Ferrari Part - Used In stock
          # 004
          MPN: 274549
          FUEL FILLER NECK
          -No longer supplied- -Replaced by 278323-
          Supersession
          Supersession
          Genuine Ferrari Part (no longer available to order)
          # 005
          MPN: 260240
          FILLER NECK FLANGE GASKET
          -After depletion order compl. pos. 18- -Applicable until depletion-
          from £6.51
          from £6.51
          FILLER NECK FLANGE GASKET Genuine Ferrari Part - New (to order)
          # 006
          MPN: 264029
          COMPL. FUEL FILLER NECK CONNECTOR PIPE
          -No longer supplied- -Replaced by 279519-
          Supersession
          Supersession
          Genuine Ferrari Part (no longer available to order)
          # 006
          MPN: 279519
          COMPL. FUEL FILLER NECK CONNECTOR PIPE
          -No longer supplied- -Replaced by 278323-
          FUEL FILLER NECK CONNECTOR PIPE COMPLETE Genuine Ferrari Part - New (to order)
          # 007
          MPN: 10718670
          COLLAR
          -No longer supplied- -Replaced by 278323-
          from £0.65
          from £0.65
          This part replaces part number 170127
          COLLAR Genuine Ferrari Part - New (to order)
          # 008
          MPN: 264031
          VAPOUR RECIRCULATION PIPE
          -No longer supplied- -Replaced by 279521-
          Supersession
          Supersession
          Genuine Ferrari Part (no longer available to order)
          # 008
          MPN: 279521
          VAPOUR RECIRCULATION PIPE
          -No longer supplied- -Replaced by 278323-
          VAPOUR RECIRCULATION PIPE Genuine Ferrari Part - New (to order)
          # 009
          MPN: 264024
          VAPOUR SEPARATOR PIPE
          -Applicable until depletion-
          from £23.73
          from £23.73
          Genuine Ferrari Part (no longer available to order)
          VAPOUR SEPARATOR PIPE Genuine Ferrari Part - Used In stock
          # 009
          MPN: 279522
          VAPOUR SEPARATOR PIPE
          -Applicable after depletion of 264024-
          from £27.22
          from £27.22
          This part replaces part number 264024 which we have in stock - and 1 more. Click to view details
          VAPOUR SEPARATOR PIPE Genuine Ferrari Part - New (to order)
          VAPOUR SEPARATOR PIPE Genuine Ferrari Part - Used In stock
          # 010
          MPN: 272714
          COMPL. REAR INSPECTION COVER
          from £7.75
          from £7.75
          COMPLETE REAR INSPECTION COVER Genuine Ferrari Part - New (to order)
          COMPLETE REAR INSPECTION COVER Genuine Ferrari Part - Used In stock
          # 011
          MPN: 13046011
          NUT
          from £0.52
          from £0.52
          NUT Genuine Ferrari Part - New In stock
          NUT FOR REAR TAIL LIGHT AS Genuine Maserati Part - New (to order)
          # 011
          MPN: 14040514
          NUT
          -No longer supplied- -Replaced by 13046011-
          from £0.53
          from £0.53
          NUT Genuine Ferrari Part - New In stock
          DADO E AUTOB C/ROSETTA CONIC Genuine Maserati Part - New In stock
          # 012
          MPN: 262252
          FUEL TANK VIBRATION DAMPER PAD KIT
          from £256.81
          from £256.81
          FUEL TANK VIBRATION DAMPER P Genuine Ferrari Part - New (to order)
          # 013
          MPN: 14304321
          SCREW
          -No longer supplied- -Replaced by 278323-
          from £0.54
          from £0.54
          SCREW Genuine Ferrari Part - New (to order)
          # 014
          MPN: 13579101
          WASHER
          -No longer supplied- -Replaced by 278323-
          from £0.53
          from £0.53
          WASHER. Genuine Ferrari Part - New (to order)
          WASHER Genuine Maserati Part - New In stock
          # 015
          MPN: 169180
          NUT
          -No longer supplied- -Replaced by 278323-
          from £0.54
          from £0.54
          This part replaces part number 12574121
          NUT Genuine Ferrari Part - New In stock
          NUT Genuine Maserati Part - New (to order)
          # 016
          MPN: 276850
          UPPER MOUNT
          -No longer supplied- -Replaced by 278323-
          from £2.78
          from £2.78
          UPPER MOUNT Genuine Ferrari Part - New (to order)
          # 017
          MPN: 276851
          LOWER MOUNT
          -No longer supplied- -Replaced by 278323-
          from £2.78
          from £2.78
          LOWER MOUNT Genuine Ferrari Part - New (to order)
          # 018
          MPN: 278323
          FUEL FILLER PIPE ASSEMBLY
          -Applicable up to Ass. No. 125768- -Applicable until depletion-
          Supersession
          Supersession
          This part replaces part number 264029 - and 2 more. Click to view details
          Genuine Ferrari Part (no longer available to order)
          # 018
          MPN: 319201
          FUEL FILLER PIPE ASSEMBLY
          -Applicable from Ass. No. 125769- -Applicable after depletion of 278323-
          from £385.71
          from £385.71
          This part replaces part number 278323
          FUEL FILLER PIPE ASSEMBLY Genuine Ferrari Part - New (to order)
