0101 - GREENHOUSE

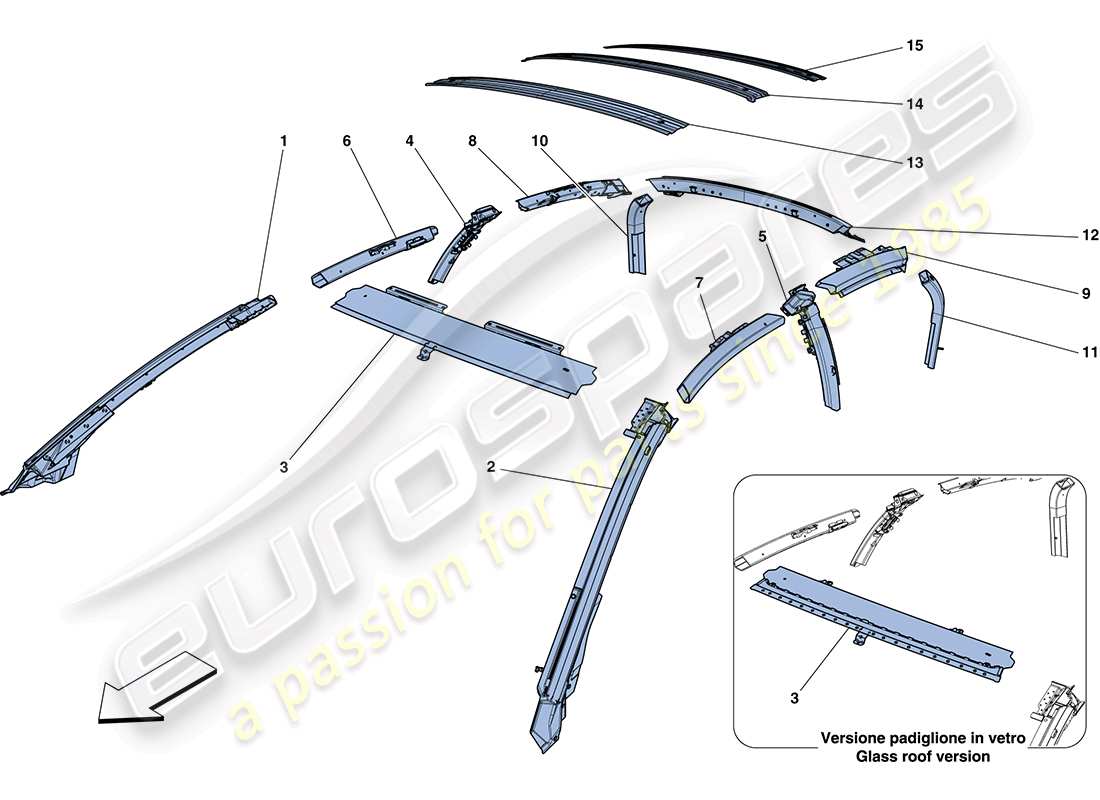

Ferrari FF (Europe) GREENHOUSE Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Price
            # 001
            MPN: 83492300
            RH WINDSCREEN PILLAR JOINT
            -Applicable up to Ass. No. 131045-
            from £563.38
            from £563.38
            # 001
            MPN: 87463900
            RH WINDSCREEN PILLAR JOINT
            -Applicable from Ass. No. 131046- -Applicable until depletion-
            Supersession
            Supersession
            # 001
            MPN: 87796500
            RH WINDSCREEN PILLAR JOINT
            -Applicable from Ass. No. 131046- -Applicable after depletion of 87463900-
            from £637.99
            from £637.99
            This part replaces part number 87463900
            # 002
            MPN: 83492400
            LH WINDSCREEN PILLAR JOINT
            -Applicable up to Ass. No. 131045-
            from £563.38
            from £563.38
            # 002
            MPN: 87463800
            LH WINDSCREEN PILLAR JOINT
            -Applicable from Ass. No. 131046- -Applicable until depletion-
            Supersession
            Supersession
            # 002
            MPN: 87796400
            LH WINDSCREEN PILLAR JOINT
            -Applicable from Ass. No. 131046- -Applicable after depletion of 87463800-
            from £637.99
            from £637.99
            This part replaces part number 87463800
            # 003
            MPN: 83450600
            UPPER WINDSCREEN CROSS-MEMBER
            -Applicable up to Ass. No. 131045-
            from £471.51
            from £471.51
            # 003
            MPN: 83499400
            UPPER WINDSCREEN CROSS-MEMBER
            -Version with glass roof panel- -Applicable up to Ass. No. 131045-
            from £691.82
            from £691.82
            # 003
            MPN: 87464000
            UPPER WINDSCREEN CROSS-MEMBER
            -Applicable from Ass. No. 131046-
            from £1,235.37
            from £1,235.37
            # 003
            MPN: 87464300
            UPPER WINDSCREEN CROSS-MEMBER
            -Version with glass roof panel- -Applicable from Ass. No. 131046-
            from £471.81
            from £471.81
            # 004
            MPN: 83493700
            RH PILLAR
            -Applicable up to Ass. No. 131045-
            from £394.12
            from £394.12
            # 004
            MPN: 87464200
            RH PILLAR
            -Applicable from Ass. No. 131046-
            from £603.96
            from £603.96
            # 005
            MPN: 83493800
            LH PILLAR
            -Applicable up to Ass. No. 131045-
            from £394.12
            from £394.12
            # 005
            MPN: 87464100
            LH PILLAR
            -Applicable from Ass. No. 131046-
            from £603.96
            from £603.96
            # 006
            MPN: 83496300
            RH CENTRAL ROOF BEAM
            -Version with glass roof panel- -Applicable up to Ass. No. 131045-
            from £145.57
            from £145.57
            # 006
            MPN: 83683000
            RH CENTRAL ROOF BEAM
            -Applicable up to Ass. No. 131045-
            from £136.92
            from £136.92
            # 006
            MPN: 87359400
            RH CENTRAL ROOF BEAM
            -Applicable from Ass. No. 131046-
            from £252.21
            from £252.21
            # 006
            MPN: 87371500
            RH CENTRAL ROOF BEAM
            -Version with glass roof panel- -Applicable from Ass. No. 131046-
            from £278.16
            from £278.16
            # 007
            MPN: 83496400
            LH CENTRAL ROOF BEAM
            -Version with glass roof panel- -Applicable up to Ass. No. 131045-
            from £145.57
            from £145.57
            # 007
            MPN: 83683100
            LH CENTRAL ROOF BEAM
            -Applicable up to Ass. No. 131045-
            from £136.92
            from £136.92
            # 007
            MPN: 87359300
            LH CENTRAL ROOF BEAM
            -Applicable from Ass. No. 131046-
            from £252.21
            from £252.21
            # 007
            MPN: 87371400
            LH CENTRAL ROOF BEAM
            -Version with glass roof panel- -Applicable from Ass. No. 131046-
            from £278.16
            from £278.16
            # 008
            MPN: 83495800
            RH CONNECTOR PIECE
            -Applicable up to Ass. No. 131045-
            from £369.48
            from £369.48
            # 008
            MPN: 83496000
            RH CONNECTOR PIECE
            -Version with glass roof panel- -Applicable up to Ass. No. 131045-
            from £390.74
            from £390.74
            # 008
            MPN: 86901400
            RH CONNECTOR PIECE
            -Applicable from Ass. No. 131046-
            from £454.00
            from £454.00
            # 008
            MPN: 87371800
            RH CONNECTOR PIECE
            -Version with glass roof panel- -Applicable from Ass. No. 131046-
            from £390.74
            from £390.74
            # 009
            MPN: 83495900
            LH CONNECTOR PIECE
            -Applicable up to Ass. No. 131045-
            from £390.74
            from £390.74
            # 009
            MPN: 83496100
            LH CONNECTOR PIECE
            -Version with glass roof panel- -Applicable up to Ass. No. 131045-
            from £390.74
            from £390.74
            # 009
            MPN: 86900500
            LH CONNECTOR PIECE
            -Applicable from Ass. No. 131046-
            from £454.00
            from £454.00
            # 009
            MPN: 87371600
            LH CONNECTOR PIECE
            -Version with glass roof panel- -Applicable from Ass. No. 131046-
            from £390.74
            from £390.74
            # 010
            MPN: 265272
            RH REAR PILLAR EXTRUDED STRUT
            from £100.73
            from £100.73
            # 011
            MPN: 265271
            LH REAR PILLAR EXTRUDED STRUT
            from £115.30
            from £115.30
            # 012
            MPN: 83450700
            REAR ROOF CROSS-MEMBER
            from £562.81
            from £562.81
            # 012
            MPN: 83499500
            REAR ROOF CROSS-MEMBER
            -Version with glass roof panel-
            from £562.81
            from £562.81
            # 013
            MPN: 84033000
            FRONT ROOF RIB
            from £40.85
            from £40.85
            # 014
            MPN: 84032900
            CENTRE ROOF RIB
            from £40.85
            from £40.85
            # 015
            MPN: 84033100
            REAR ROOF RIB
            from £40.85
            from £40.85
