0111 - FRONT LID AND OPENING MECHANISM

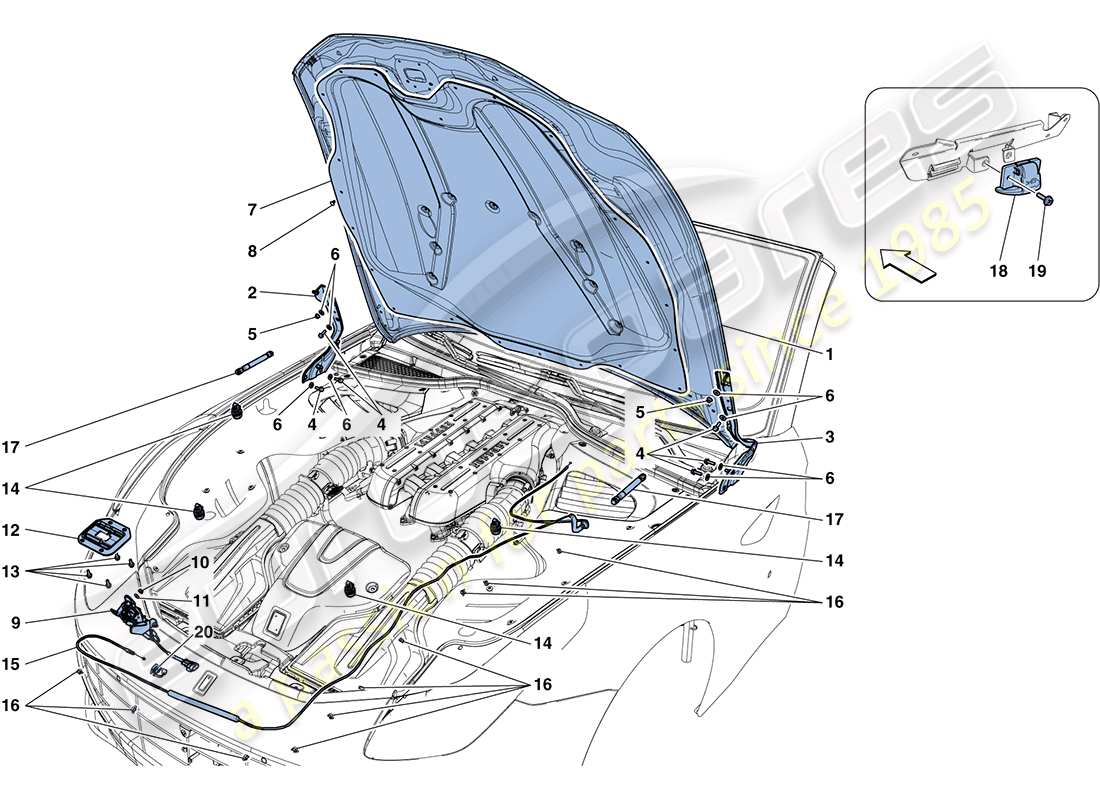

Ferrari FF (Europe) FRONT LID AND OPENING MECHANISM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Price
                              # 001
                              MPN: 83029711
                              ENGINE COMPARTMENT LID
                              from £2,154.60
                              from £2,154.60
                              # 002
                              MPN: 81675100
                              COMPL. RH HINGE
                              from £70.54
                              from £70.54
                              # 003
                              MPN: 81675000
                              COMPL. LH HINGE
                              from £70.54
                              from £70.54
                              # 004
                              MPN: 16287124
                              SCREW
                              -M8 X 20-
                              from £0.75
                              from £0.75
                              # 004
                              MPN: 16287224
                              SCREW
                              -M8 X 25- -No longer supplied- -Replaced by 16287124-
                              from £0.50
                              from £0.50
                              This part replaces part number 16287221
                              # 005
                              MPN: 14059311
                              NUT
                              from £0.53
                              from £0.53
                              # 006
                              MPN: 12646724
                              WASHER
                              from £0.52
                              from £0.52
                              This part replaces part number 12601571 which we have in stock - and 2 more. Click to view details
                              # 007
                              MPN: 82210300
                              UNDER-LID INSULATION
                              from £271.32
                              from £271.32
                              # 008
                              MPN: 14591687
                              FASTENER BUTTON
                              from £0.26
                              from £0.26
                              This part replaces part number 69767700 - and 1 more. Click to view details
                              # 009
                              MPN: 83752200
                              LID LOCK
                              from £89.50
                              from £89.50
                              # 010
                              MPN: 13046112
                              NUT
                              from £0.53
                              from £0.53
                              # 010
                              MPN: 14059211
                              NUT
                              -No longer supplied- -Replaced by 13046112-
                              from £0.53
                              from £0.53
                              # 011
                              MPN: 12647601
                              WASHER
                              -No longer supplied- -Replaced by 12647878-
                              from £0.47
                              from £0.47
                              # 011
                              MPN: 12647878
                              WASHER
                              from £1.90
                              from £1.90
                              # 012
                              MPN: 80246800
                              STRIKER PLATE
                              from £17.11
                              from £17.11
                              # 013
                              MPN: 81923100
                              SCREW
                              -M6 X 18-
                              from £0.53
                              from £0.53
                              This part replaces part number 16297034
                              # 014
                              MPN: 67161800
                              VIBRATION DAMPER
                              from £20.90
                              from £20.90
                              This part replaces part number 69773300
                              # 015
                              MPN: 82322400
                              LID RELEASE BOWDEN CABLE
                              -Not for GD- -Applicable up to Ass. No. 108015- -Applicable until depletion-
                              from £37.13
                              from £37.13
                              # 015
                              MPN: 83994200
                              LID RELEASE BOWDEN CABLE
                              -Applicable for GD- -Applicable until depletion-
                              Supersession
                              Supersession
                              # 015
                              MPN: 85045900
                              LID RELEASE BOWDEN CABLE
                              -Not for GD- -Applicable from Ass. No. 108016- -Applicable after depletion of 82322400-
                              from £39.64
                              from £39.64
                              # 015
                              MPN: 85046000
                              LID RELEASE BOWDEN CABLE
                              -Applicable for GD- -Applicable after depletion of 83994200-
                              from £40.35
                              from £40.35
                              This part replaces part number 83994200
                              # 016
                              MPN: 14569480
                              CLIP
                              from £0.47
                              from £0.47
                              This part replaces part number 81580800
                              # 017
                              MPN: 69767900
                              GAS STRUT
                              from £18.64
                              from £18.64
                              # 018
                              MPN: 67003800
                              ENGINE COMPARTMENT LID HANDLE
                              from £24.46
                              from £24.46
                              # 019
                              MPN: 65366700
                              SCREW
                              -M5 X 12- -No longer supplied- -Replaced by 85692200-
                              from £0.68
                              from £0.68
                              # 019
                              MPN: 85692200
                              SCREW
                              -M5 X 12-
                              from £0.47
                              from £0.47
                              # 020
                              MPN: 69708300
                              CLIP
                              from £0.76
                              from £0.76
                              Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
