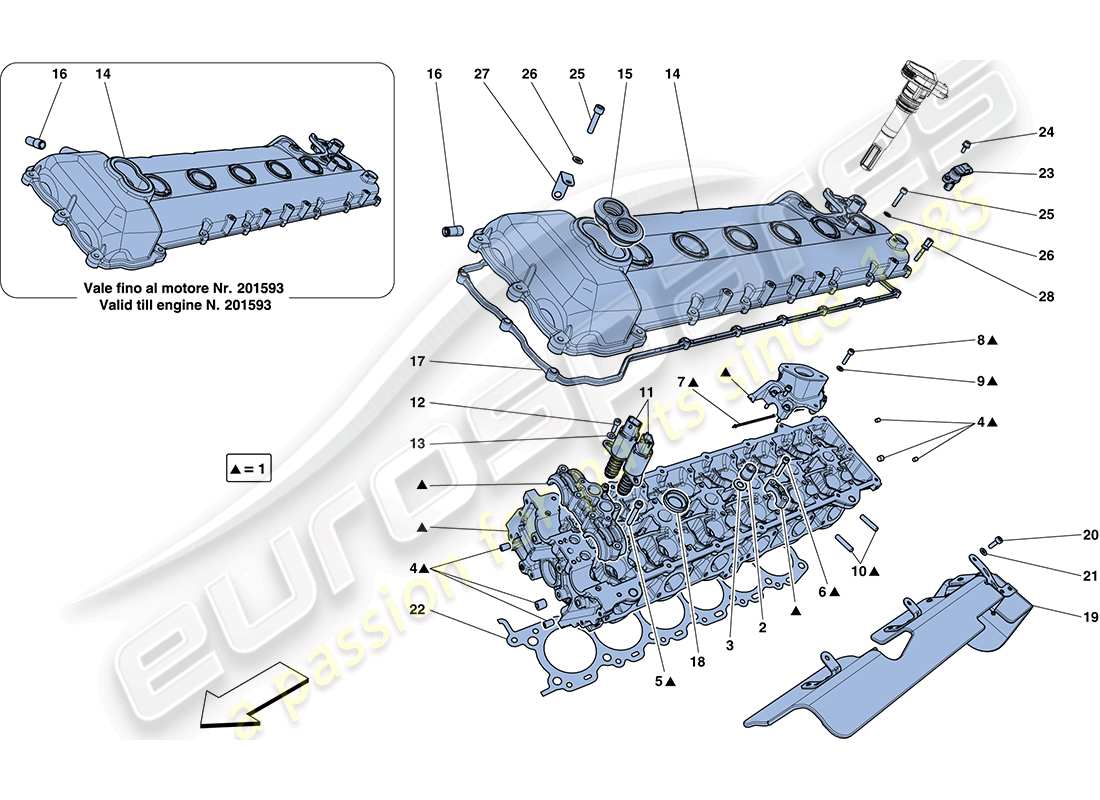

Ferrari FF (Europe) LEFT HAND CYLINDER HEAD Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # 001
                          MPN: 273224
                          LH HEAD
                          -Applicable up to engine No. 201593-
                          Supersession
                          Supersession
                          Genuine Ferrari Part (no longer available to order)
                          # 001
                          MPN: 300332
                          LH HEAD
                          -Applicable from engine No. 201594-
                          from £2,039.09
                          from £2,039.09
                          This part replaces part number 273224
                          LH HEAD Genuine Ferrari Part - New (to order)
                          # 002
                          MPN: 183524
                          NUT
                          from £1.21
                          from £1.21
                          NUT. Genuine Ferrari Part - New In stock
                          Genuine Maserati Part (no longer available to order)
                          NUT. Genuine Ferrari Part - Used In stock
                          # 003
                          MPN: 151117
                          WASHER
                          from £0.31
                          from £0.31
                          WASHER Genuine Ferrari Part - New In stock
                          WASHER Genuine Maserati Part - New In stock
                          WASHER Genuine Ferrari Part - Used In stock
                          # 004
                          MPN: 10275501
                          THREADED PLUG
                          -M12 X 11- -No longer supplied- -Replaced by 282400-
                          from £0.58
                          from £0.58
                          THREADED PLUG Genuine Ferrari Part - New (to order)
                          TAPPO FILETT.CON. M 12X 11 Genuine Maserati Part - New (to order)
                          # 004
                          MPN: 127635
                          THREADED PLUG
                          -M18 X 11 X 1.5- -Inspection hole cover-
                          from £1.48
                          from £1.48
                          This part replaces part number 183447
                          PLUG Genuine Ferrari Part - New (to order)
                          THREADED PLUG Genuine Maserati Part - New (to order)
                          # 004
                          MPN: 127635
                          THREADED PLUG
                          -M18 X 11 X 1.5- -For rear water orifice cover-
                          from £1.48
                          from £1.48
                          This part replaces part number 183447
                          PLUG Genuine Ferrari Part - New (to order)
                          THREADED PLUG Genuine Maserati Part - New (to order)
                          # 004
                          MPN: 14326001
                          THREADED PLUG
                          -D. 10 X 1.25- -No longer supplied- -Replaced by 282755-
                          from £0.47
                          from £0.47
                          This part replaces part number 194495
                          PLUG Genuine Ferrari Part - New (to order)
                          THREADED PLUG FOR GEARBOX Genuine Maserati Part - New (to order)
                          # 004
                          MPN: 199760
                          THREADED PLUG
                          -D. 6 X 1-
                          from £0.52
                          from £0.52
                          THREADED PLUG Genuine Ferrari Part - New (to order)
                          TAPERED THREADED PLUG 6X1 Genuine Maserati Part - New In stock
                          # 004
                          MPN: 282400
                          THREADED PLUG
                          -M12 X 11-
                          from £2.00
                          from £2.00
                          CAP Genuine Ferrari Part - New (to order)
                          # 004
                          MPN: 282755
                          THREADED PLUG
                          -D. 10 X 1.25-
                          from £1.17
                          from £1.17
                          THREADED PLUG Genuine Ferrari Part - New (to order)
                          THREADED PLUG Genuine Maserati Part - New (to order)
                          # 005
                          MPN: 243720
                          SCREW
                          -M6 X 40-
                          from £0.53
                          from £0.53
                          SCREW -M6X40- Genuine Ferrari Part - New (to order)
                          # 005
                          MPN: 243721
                          SCREW WITH WASHER
                          -M6 X 45-
                          from £0.53
                          from £0.53
                          SCREW Genuine Ferrari Part - New (to order)
                          SOCKET HEAD SCREW M 6X45 Genuine Maserati Part - New (to order)
                          # 006
                          MPN: 243719
                          SCREW WITH WASHER
                          -M6 X 35-
                          from £0.50
                          from £0.50
                          SCREW Genuine Ferrari Part - New (to order)
                          SOCKET HEAD SCREW M 6X35 Genuine Maserati Part - New (to order)
                          # 007
                          MPN: 239614
                          GASKET
                          from £3.73
                          from £3.73
                          GASKET Genuine Ferrari Part - New In stock
                          # 008
                          MPN: 239502
                          SCREW
                          -M6 X 25-
                          from £0.54
                          from £0.54
                          SCREW -M6X 25- Genuine Ferrari Part - New In stock
                          # 008
                          MPN: 243719
                          SCREW WITH WASHER
                          -M6 X 35-
                          from £0.54
                          from £0.54
                          SCREW Genuine Ferrari Part - New (to order)
                          SOCKET HEAD SCREW M 6X35 Genuine Maserati Part - New (to order)
                          # 009
                          MPN: 11197774
                          WASHER
                          from £0.54
                          from £0.54
                          This part replaces part number 11197770 - and 3 more. Click to view details
                          WASHER Genuine Ferrari Part - New In stock
                          WASHER Genuine Maserati Part - New In stock
                          # 010
                          MPN: 13541324
                          STUD BOLT
                          -M6 X 12- -Shank length 25 mm-
                          from £0.93
                          from £0.93
                          This part replaces part number 13541321
                          STUD BOLT Genuine Ferrari Part - New (to order)
                          # 010
                          MPN: 13541424
                          STUD BOLT
                          -M6 X 12- -Shank length 28 mm-
                          from £0.51
                          from £0.51
                          This part replaces part number 13541421
                          STUD Genuine Ferrari Part - New (to order)
                          # 010
                          MPN: 211641
                          STUD BOLT
                          -M8 X 16- -Shank length 24 mm-
                          from £0.67
                          from £0.67
                          STUD Genuine Ferrari Part - New (to order)
                          # 011
                          MPN: 255442
                          OIL PRESSURE REGULATOR VALVE
                          -Applicable until depletion-
                          from £82.48
                          from £82.48
                          Genuine Ferrari Part (no longer available to order)
                          OIL PRESSURE REGULATOR VALVE Genuine Ferrari Part - Used In stock
                          # 011
                          MPN: 296017
                          OIL PRESSURE REGULATOR VALVE
                          from £59.69
                          from £59.69
                          This part replaces part number 269227 - and 3 more. Click to view details
                          OIL PRESSURE REGULATOR VALVE Genuine Ferrari Part - New In stock
                          Genuine Maserati Part (no longer available to order)
                          OIL PRESSURE REGULATOR VALVE Genuine Ferrari Part - Used In stock
                          # 011
                          MPN: 296017
                          OIL PRESSURE REGULATOR VALVE
                          from £59.69
                          from £59.69
                          This part replaces part number 269227 - and 3 more. Click to view details
                          OIL PRESSURE REGULATOR VALVE Genuine Ferrari Part - New In stock
                          Genuine Maserati Part (no longer available to order)
                          OIL PRESSURE REGULATOR VALVE Genuine Ferrari Part - Used In stock
                          # 012
                          MPN: 14304224
                          SCREW
                          -M5 X 16-
                          from £0.53
                          from £0.53
                          SCREW Genuine Ferrari Part - New In stock
                          SCREW Genuine Maserati Part - New (to order)
                          # 013
                          MPN: 11181574
                          WASHER
                          from £0.54
                          from £0.54
                          WASHER Genuine Ferrari Part - New In stock
                          TAPERED RUBBER WASHER D. 5.3-1 Genuine Maserati Part - New (to order)
                          # 014
                          MPN: 271269
                          LH CYLINDER HEAD COVER
                          -Applicable up to engine No. 201593-
                          from £363.51
                          from £363.51
                          LH CYLINDER HEAD COVER Genuine Ferrari Part - New (to order)
                          # 014
                          MPN: 292566
                          LH CYLINDER HEAD COVER
                          -Applicable from engine No. 201594-
                          from £379.49
                          from £379.49
                          LH CYLINDER HEAD COVER Genuine Ferrari Part - New (to order)
                          # 015
                          MPN: 229353
                          SOLENOID VALVE GASKET
                          from £9.94
                          from £9.94
                          GASKET Genuine Ferrari Part - New In stock
                          # 016
                          MPN: 271521
                          CONNECTOR
                          from £3.46
                          from £3.46
                          CONNECTOR Genuine Ferrari Part - New (to order)
                          # 017
                          MPN: 243802
                          LH HEAD COVER GASKET
                          from £43.79
                          from £43.79
                          LH HEAD COVER GASKET Genuine Ferrari Part - New In stock
                          # 018
                          MPN: 223982
                          SPARK PLUG TUBE SEAL
                          from £1.40
                          from £1.40
                          SPARK PLUG TUBE SEAL Genuine Ferrari Part - New In stock
                          SPARK PLUG SLEEVE GASKET Genuine Maserati Part - New In stock
                          # 019
                          MPN: 276026
                          COMPL. LH HEAD HEAT SHIELD
                          -Applicable until depletion-
                          from £105.77
                          from £105.77
                          Genuine Ferrari Part (no longer available to order)
                          LH HEAD HEAT SHIELD COMPLETE Genuine Ferrari Part - Used In stock
                          # 019
                          MPN: 295114
                          COMPL. LH HEAD HEAT SHIELD
                          -Applicable after depletion of 276026-
                          from £229.52
                          from £229.52
                          This part replaces part number 276026 which we have in stock
                          COMPLETE LH HEAD HEAT SHIELD Genuine Ferrari Part - New (to order)
                          # 020
                          MPN: 14305724
                          SCREW
                          -M6 X 14-
                          from £0.53
                          from £0.53
                          This part replaces part number 11567624 - and 2 more. Click to view details
                          SCREW Genuine Ferrari Part - New In stock
                          SCREW Genuine Maserati Part - New (to order)
                          # 021
                          MPN: 11197774
                          WASHER
                          from £0.54
                          from £0.54
                          This part replaces part number 11197770 - and 3 more. Click to view details
                          WASHER Genuine Ferrari Part - New In stock
                          WASHER Genuine Maserati Part - New In stock
                          # 022
                          MPN: 243804
                          LH HEAD-CRANKCASE GASKET
                          -Applicable until depletion-
                          Supersession
                          Supersession
                          Genuine Ferrari Part (no longer available to order)
                          # 022
                          MPN: 324014
                          LH HEAD-CRANKCASE GASKET
                          -Applicable after depletion of 243804-
                          from £145.95
                          from £145.95
                          This part replaces part number 243804
                          LH HEAD-CRANKCASE GASKET Genuine Ferrari Part - New (to order)
                          # 023
                          MPN: 224573
                          TIMING SENSOR
                          from £13.52
                          from £13.52
                          PHASE SENSOR Genuine Ferrari Part - New In stock
                          TIMING SENSOR Genuine Maserati Part - New (to order)
                          PHASE SENSOR Genuine Ferrari Part - Used In stock
                          # 024
                          MPN: 231616
                          SCREW
                          -M6 X 14-
                          from £0.53
                          from £0.53
                          This part replaces part number 14305724 which we have in stock
                          Genuine Ferrari Part (no longer available to order)
                          SCREW Genuine Maserati Part - New (to order)
                          # 025
                          MPN: 157218
                          SCREW
                          -M6 X 25-
                          from £0.50
                          from £0.50
                          SCREW. Genuine Ferrari Part - New (to order)
                          SOCKET HEAD SCREW M 6X 25 Genuine Maserati Part - New In stock
                          # 025
                          MPN: 157218
                          SCREW
                          -M6 X 25- -Applicable up to engine No. 201593-
                          from £0.53
                          from £0.53
                          SCREW. Genuine Ferrari Part - New (to order)
                          SOCKET HEAD SCREW M 6X 25 Genuine Maserati Part - New In stock
                          # 025
                          MPN: 284200
                          SCREW
                          -M6 X 25- -Applicable from engine No. 201594- -Applicable until depletion-
                          Supersession
                          Supersession
                          Genuine Ferrari Part (no longer available to order)
                          # 025
                          MPN: 293278
                          SCREW
                          -Applicable from engine No. 201594- -Applicable after depletion of 284200-
                          from £7.37
                          from £7.37
                          This part replaces part number 284200
                          SCREW Genuine Ferrari Part - New (to order)
                          # 026
                          MPN: 11197774
                          WASHER
                          from £0.51
                          from £0.51
                          This part replaces part number 11197770 - and 3 more. Click to view details
                          WASHER Genuine Ferrari Part - New In stock
                          WASHER Genuine Maserati Part - New In stock
                          # 026
                          MPN: 11197774
                          WASHER
                          from £0.54
                          from £0.54
                          This part replaces part number 11197770 - and 3 more. Click to view details
                          WASHER Genuine Ferrari Part - New In stock
                          WASHER Genuine Maserati Part - New In stock
                          # 026
                          MPN: 11198074
                          WASHER
                          -Applicable from engine No. 201594-
                          from £0.54
                          from £0.54
                          This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                          WASHER Genuine Ferrari Part - New In stock
                          TAPERED RUBBER WASHER D8.5-15X1.8 Genuine Maserati Part - New (to order)
                          # 027
                          MPN: 219946
                          BRACKET
                          from £2.27
                          from £2.27
                          BRACKET Genuine Ferrari Part - New (to order)
                          # 028
                          MPN: 214412
                          STUD BOLT
                          -No longer supplied-
                          from £6.84
                          from £6.84
                          STUD Genuine Ferrari Part - New (to order)
                          STUD M6X25(M) M6X10(F) H=14 Genuine Maserati Part - New (to order)
