0032 - PARKING BRAKE CONTROL

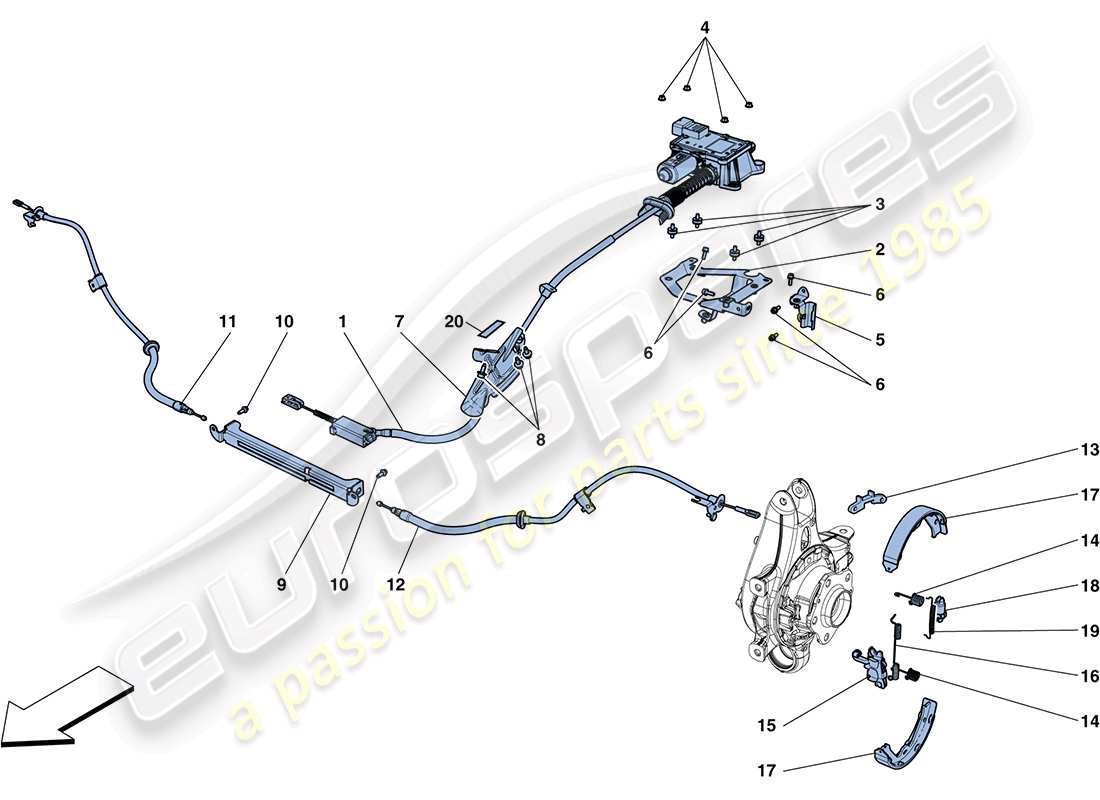

Ferrari FF (Europe) PARKING BRAKE CONTROL Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 269268
COMPL. ELECTRONIC ACTUATOR
-Applicable up to Ass. No. 100649- -Applicable until depletion-
Supersession
Supersession
# 001
MPN: 281146
COMPL. ELECTRONIC ACTUATOR
-Applicable from Ass. No. 100650- -Applicable after depletion of 269268-
from £1,051.38
from £1,051.38
This part replaces part number 269268
# 002
MPN: 272515
BRACKET
from £28.58
from £28.58
# 003
MPN: 225408
CYLINDRICAL BUSHING
from £4.26
from £4.26
# 004
MPN: 14059214
NUT
from £0.53
from £0.53
# 005
MPN: 274559
BRACKET
-Fastening EPB to rear part-
from £38.70
from £38.70
# 006
MPN: 231617
SCREW
-M6 X 18-
from £0.52
from £0.52
This part replaces part number 14433124 which we have in stock
# 007
MPN: 248300
EPB CABLE HEAT SHIELD
from £13.60
from £13.60
This part replaces part number 256074 - and 2 more. Click to view details
# 008
MPN: 11566224
SCREW
-M5 X 14-
from £0.53
from £0.53
# 009
MPN: 238549
EQUALISER BRACKET
-No longer supplied- -Replaced by 283126-
from £13.29
from £13.29
# 009
MPN: 283126
EQUALISER BRACKET
from £15.65
from £15.65
This part replaces part number 238549 which we have in stock - and 1 more. Click to view details
# 010
MPN: 11568027
SCREW
-M6 X 18-
from £0.85
from £0.85
# 011
MPN: 249701
RH PARKING BRAKE CABLE
from £63.71
from £63.71
# 012
MPN: 249700
LH PARKING BRAKE CABLE
from £63.71
from £63.71
# 013
MPN: 240953
REACTION PLATE
from £6.50
from £6.50
# 014
MPN: 240952
FASTENER SPRING
from £6.44
from £6.44
# 015
MPN: 254156
COMPL. PARKING BRAKE LEVER
from £40.43
from £40.43
This part replaces part number 234658 which we have in stock - and 2 more. Click to view details
# 016
MPN: 240947
LONG EXTENSION SPRING
from £4.04
from £4.04
# 017
MPN: 240948
PARKING BRAKE SHOE
from £128.34
from £128.34
# 018
MPN: 186572
ADJUSTER
from £42.46
from £42.46
# 019
MPN: 243123
SHORT EXTENSION SPRING
from £4.04
from £4.04
# 020
MPN: 260355
ADHESIVE SEAL
from £2.81
from £2.81
