ferrari ff (europe) front suspension - shock absorber and brake disc parts diagram

0036 - Front Suspension - Shock Absorber and Brake Disc

Ferrari FF (Europe) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC Parts Diagram

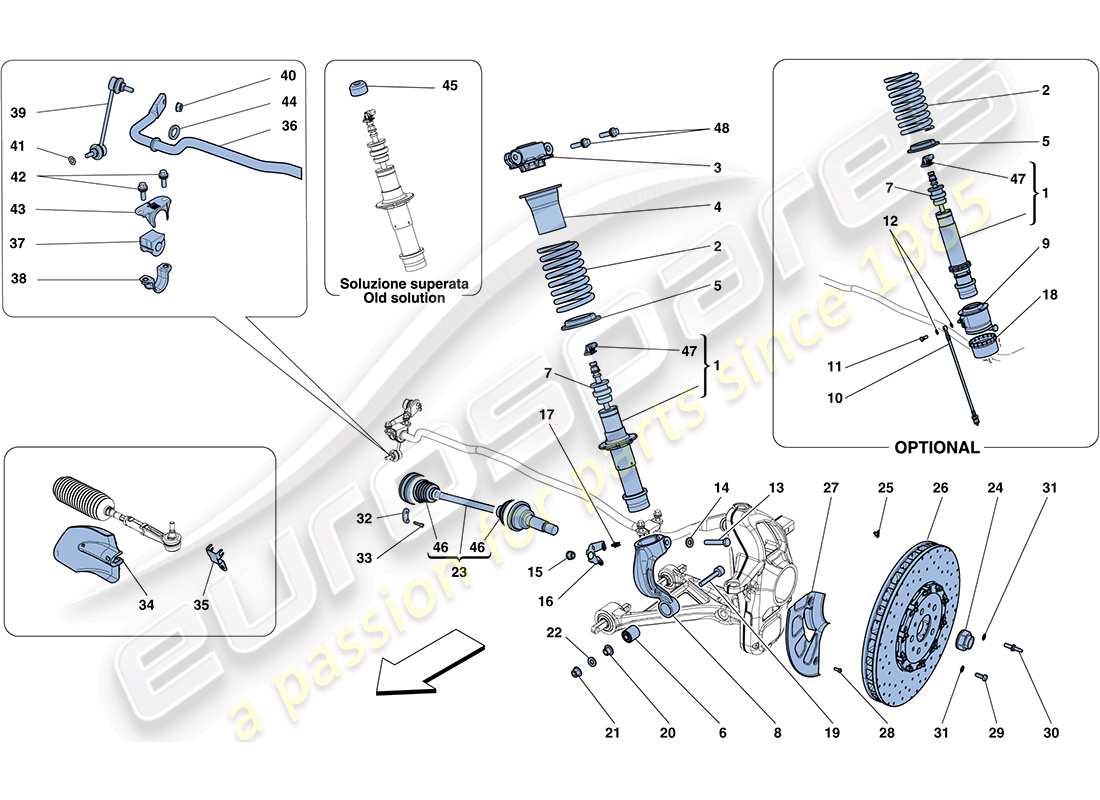

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                          #
                                                          Part number
                                                          Description
                                                          Price
                                                          # 001
                                                          MPN: 265748

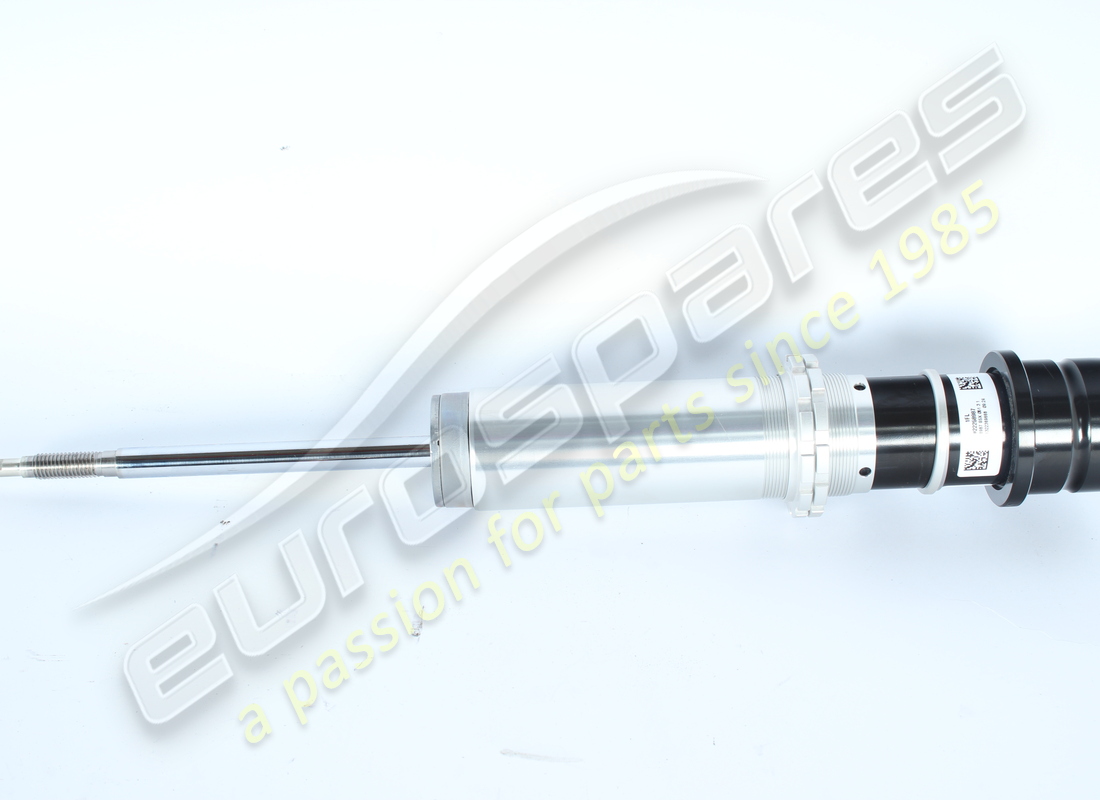

                                                          FRONT SHOCK ABSORBER
                                                          from £1,393.98
                                                          from £1,393.98
                                                          # 001
                                                          MPN: 265765
                                                          FRONT SHOCK ABSORBER
                                                          Lifting System version
                                                          from £1,342.36
                                                          from £1,342.36
                                                          # 002
                                                          MPN: 257753

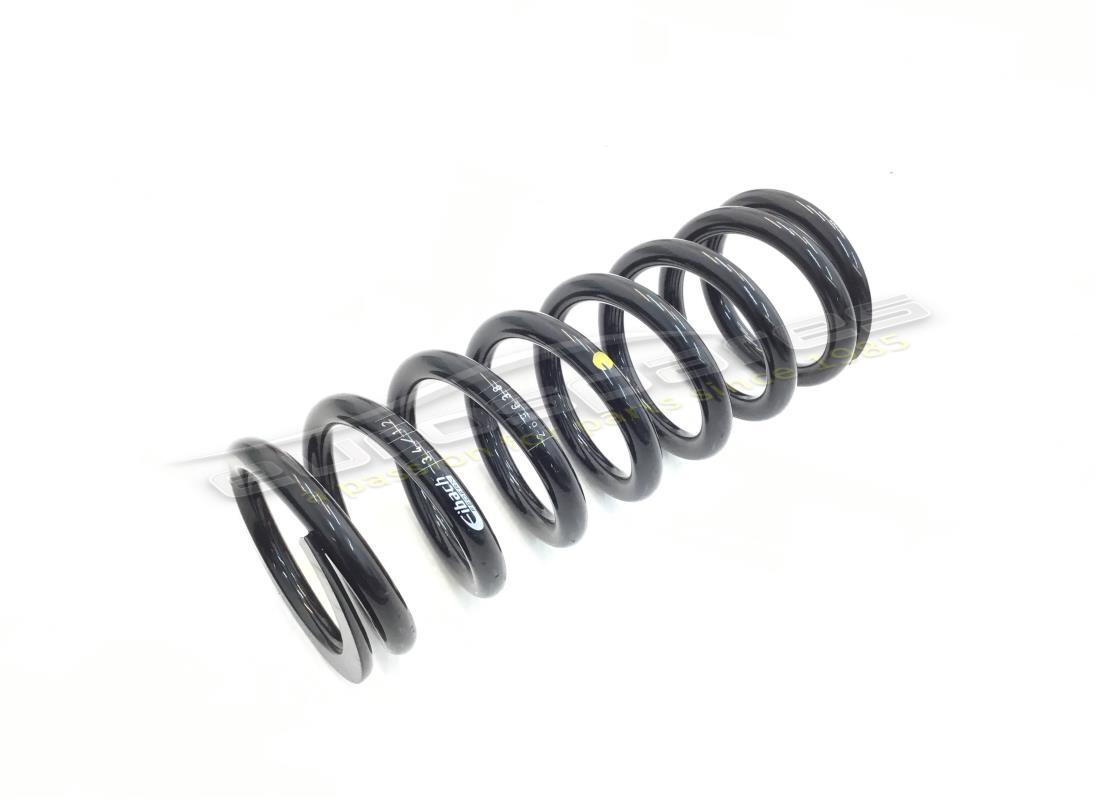

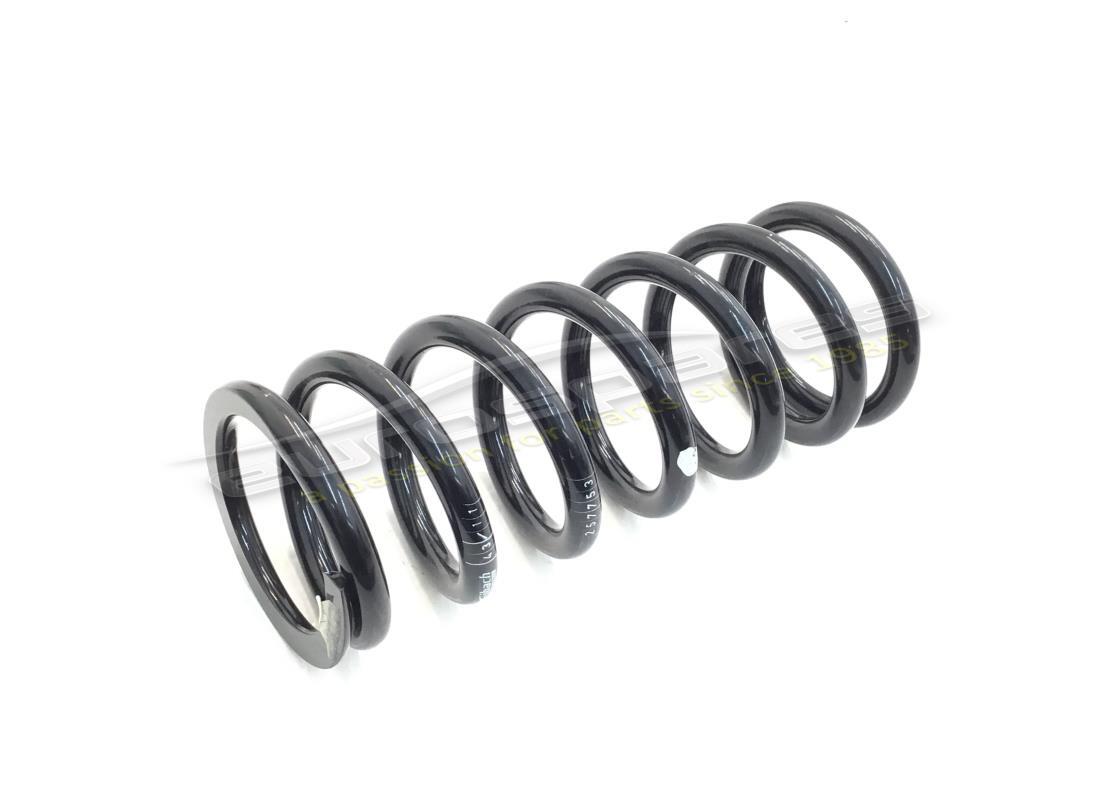

                                                          SPRING
                                                          from £60.79
                                                          from £60.79
                                                          # 002
                                                          MPN: 269638
                                                          SPRING
                                                          -Version with lifter-
                                                          from £51.34
                                                          from £51.34

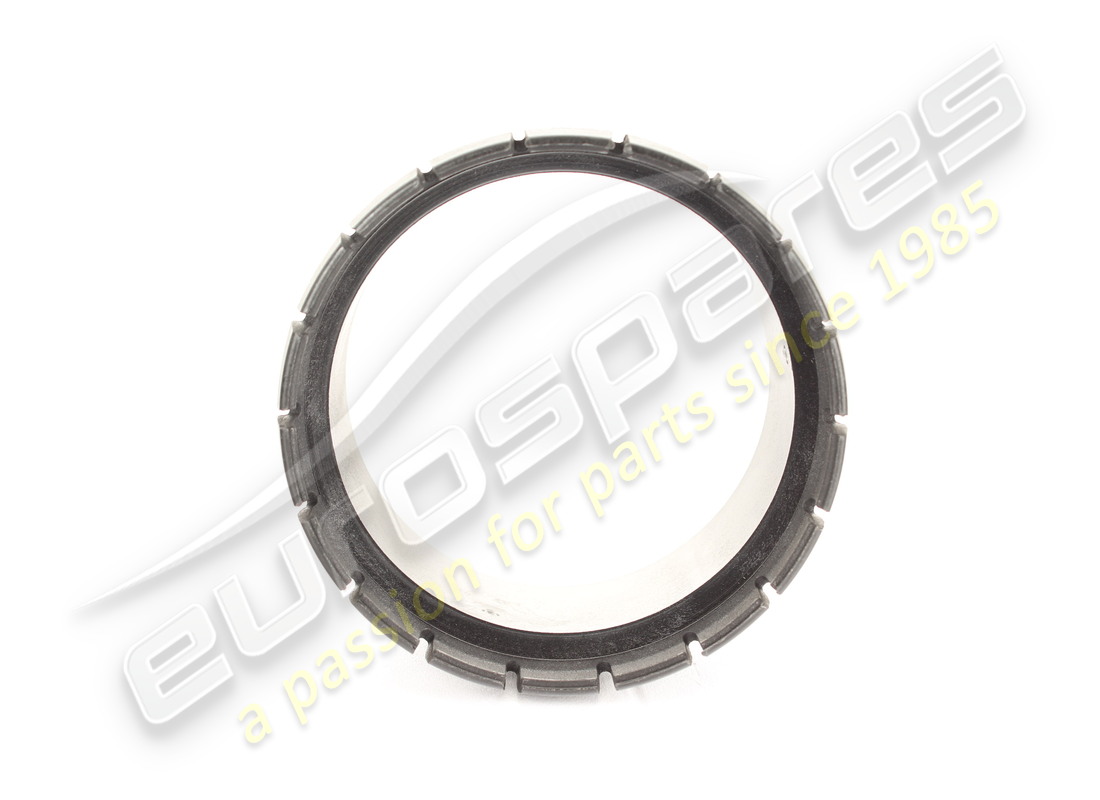

                                                          # 003
                                                          MPN: 274308

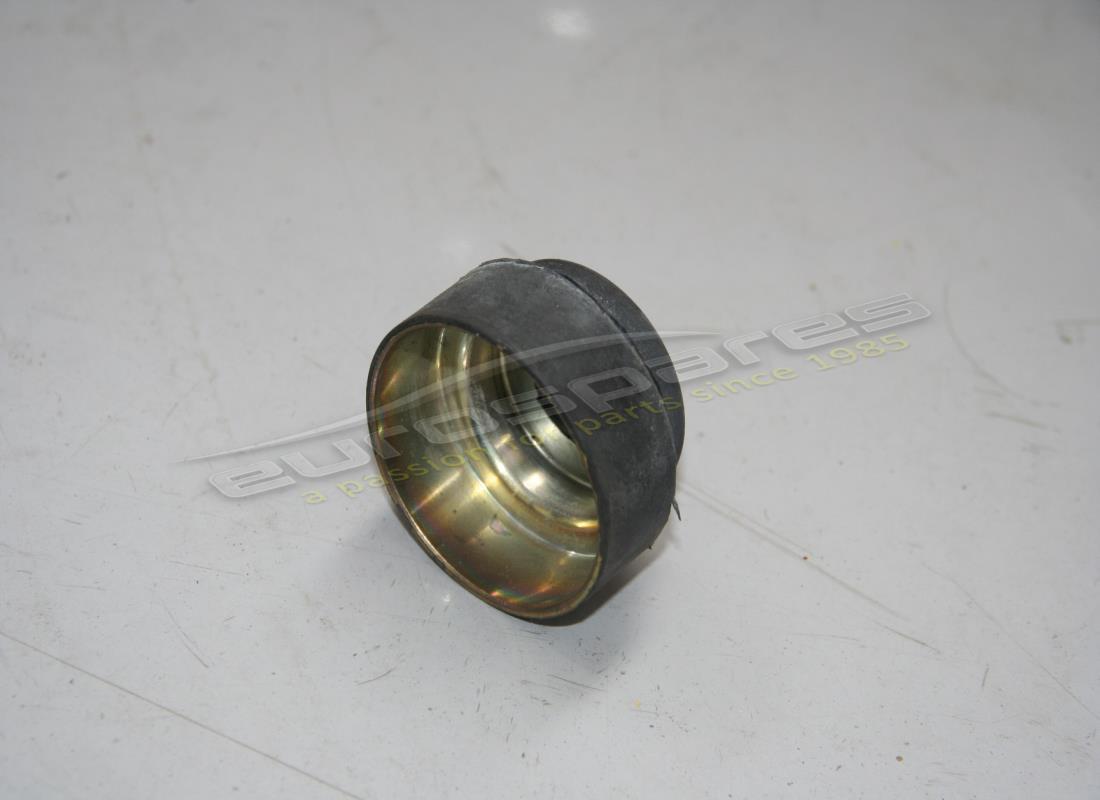

                                                          STOP CAP
                                                          from £67.38
                                                          from £67.38
                                                          # 005
                                                          MPN: 211236
                                                          LOWER SPACER
                                                          from £8.72
                                                          from £8.72
                                                          # 006
                                                          MPN: 157630
                                                          BALL JOINT
                                                          from £48.50
                                                          from £48.50
                                                          This part replaces part number 159262
                                                          # 007
                                                          MPN: 257412
                                                          ENDSTOP BUSH
                                                          -No longer supplied- -Replaced by 288828-
                                                          Supersession
                                                          Supersession
                                                          # 007
                                                          MPN: 257412
                                                          ENDSTOP BUSH
                                                          Supersession
                                                          Supersession
                                                          # 007
                                                          MPN: 288828
                                                          ENDSTOP BUSH
                                                          -No longer supplied- -Replaced by 257412-
                                                          from £20.62
                                                          from £20.62
                                                          This part replaces part number 257412 - and 2 more. Click to view details
                                                          # 008
                                                          MPN: 261913
                                                          LH STRUT OF SHOCK ABSORBER FOR 4WD
                                                          from £118.11
                                                          from £118.11
                                                          # 008
                                                          MPN: 261914
                                                          RH STRUT OF SHOCK ABSORBER FOR 4WD
                                                          from £118.11
                                                          from £118.11
                                                          # 009
                                                          MPN: 262384
                                                          COMPL. ACTUATOR
                                                          -Version with lifter-
                                                          from £441.13
                                                          from £441.13
                                                          # 010
                                                          MPN: 260408
                                                          RUBBER PIPE
                                                          -Version with lifter-
                                                          from £17.44
                                                          from £17.44
                                                          # 011
                                                          MPN: 261587
                                                          CONNECTION FOR UNION
                                                          -Version with lifter-
                                                          from £16.45
                                                          from £16.45
                                                          # 012
                                                          MPN: 259638
                                                          GASKET
                                                          -Version with lifter-
                                                          from £7.65
                                                          from £7.65
                                                          # 013
                                                          MPN: 15541234
                                                          SCREW
                                                          -M12 X 1.25 X 70-
                                                          from £0.97
                                                          from £0.97
                                                          # 014
                                                          MPN: 259664
                                                          WASHER
                                                          from £3.11
                                                          from £3.11
                                                          # 015
                                                          MPN: 259711
                                                          BUSHING
                                                          from £6.27
                                                          from £6.27
                                                          # 016
                                                          MPN: 263314
                                                          LH BRACKET
                                                          from £12.69
                                                          from £12.69
                                                          # 016
                                                          MPN: 263315
                                                          RH BRACKET
                                                          from £12.69
                                                          from £12.69
                                                          # 017
                                                          MPN: 261214
                                                          RAYMOND CLIP
                                                          from £0.73
                                                          from £0.73
                                                          # 018
                                                          MPN: 268474
                                                          DUST COVER
                                                          -Version with lifter-
                                                          from £6.12
                                                          from £6.12
                                                          # 019
                                                          MPN: 237297
                                                          SCREW
                                                          -M12 X 1.25 X 80-
                                                          from £15.67
                                                          from £15.67
                                                          # 020
                                                          MPN: 237821
                                                          BUSHING
                                                          from £2.75
                                                          from £2.75
                                                          # 021
                                                          MPN: 255271
                                                          NUT
                                                          from £0.44
                                                          from £0.44
                                                          This part replaces part number 14058721 - and 1 more. Click to view details
                                                          # 022
                                                          MPN: 12646921
                                                          WASHER
                                                          from £0.54
                                                          from £0.54
                                                          This part replaces part number 12646901 which we have in stock
                                                          # 023
                                                          MPN: 268199
                                                          FRONT AXLE SHAFT
                                                          -Replace as a pair- -Applicable up to Ass. No. 101049- -No longer supplied- -Replaced by 280511-
                                                          from £497.84
                                                          from £497.84
                                                          # 023
                                                          MPN: 280511
                                                          FRONT AXLE SHAFT
                                                          -Replaces 268199- -Applicable from Ass. No. 101050- -No longer supplied- -Replaced by 339613-
                                                          Supersession
                                                          Supersession
                                                          # 023
                                                          MPN: 339613
                                                          FRONT AXLE SHAFT
                                                          -Replaces 280511- -Applicable from Ass. No. 101050-
                                                          from £1,712.72
                                                          from £1,712.72
                                                          This part replaces part number 280511
                                                          # 024
                                                          MPN: 203780
                                                          NUT
                                                          from £14.09
                                                          from £14.09
                                                          This part replaces part number 187814
                                                          # 025
                                                          MPN: 204781
                                                          CLIP
                                                          -Fastening wear indicator cable-
                                                          from £0.47
                                                          from £0.47
                                                          This part replaces part number 12486580 - and 1 more. Click to view details
                                                          # 026
                                                          MPN: 274334

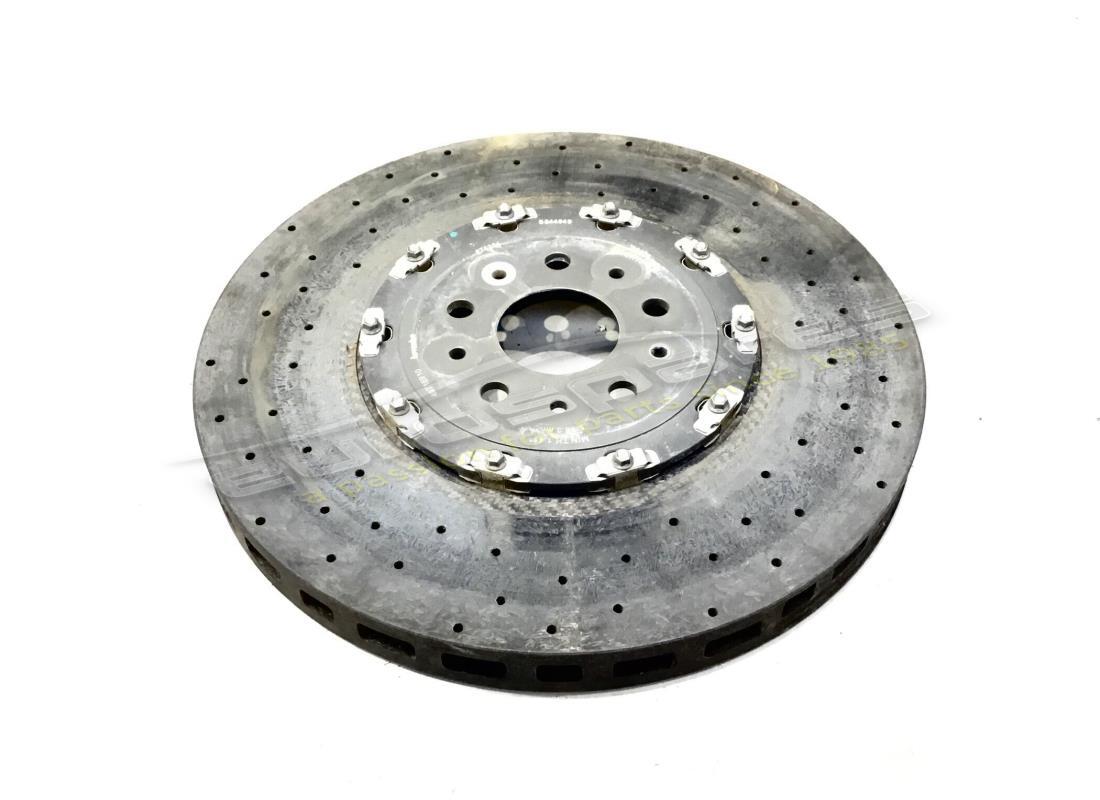

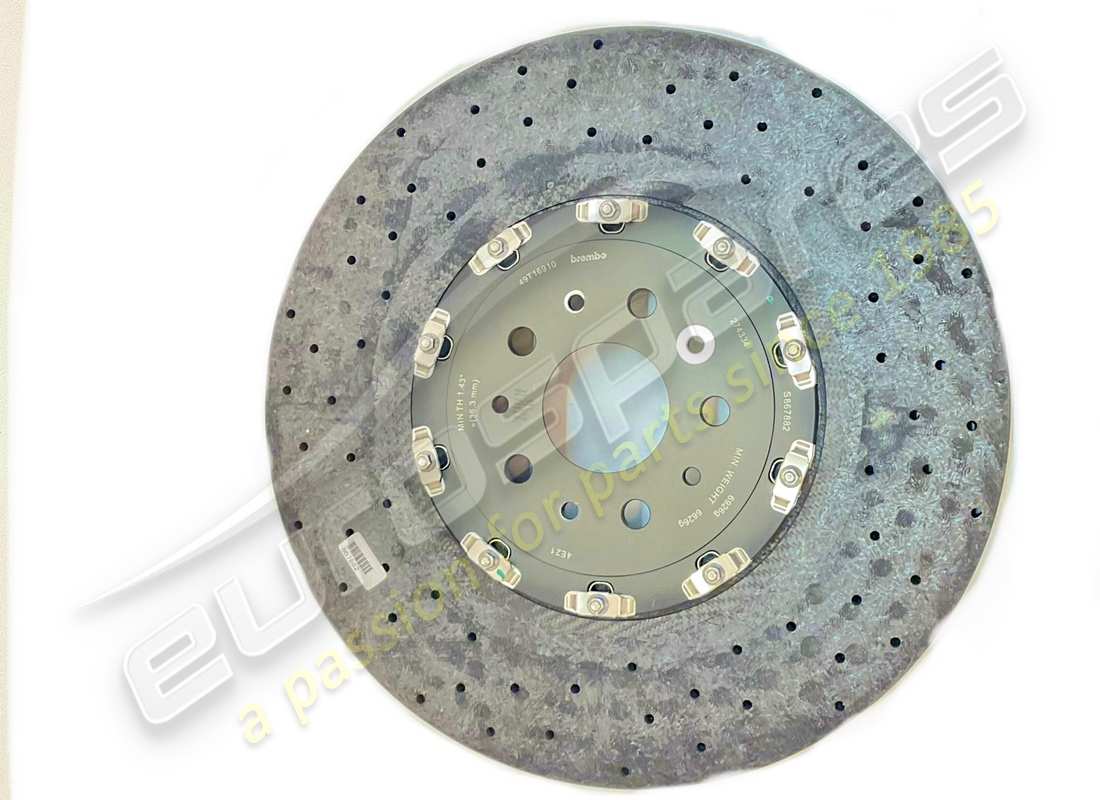

                                                          BRAKE DISC
                                                          -Applicable until depletion-
                                                          from £1,638.23
                                                          from £1,638.23
                                                          # 026
                                                          MPN: 315457

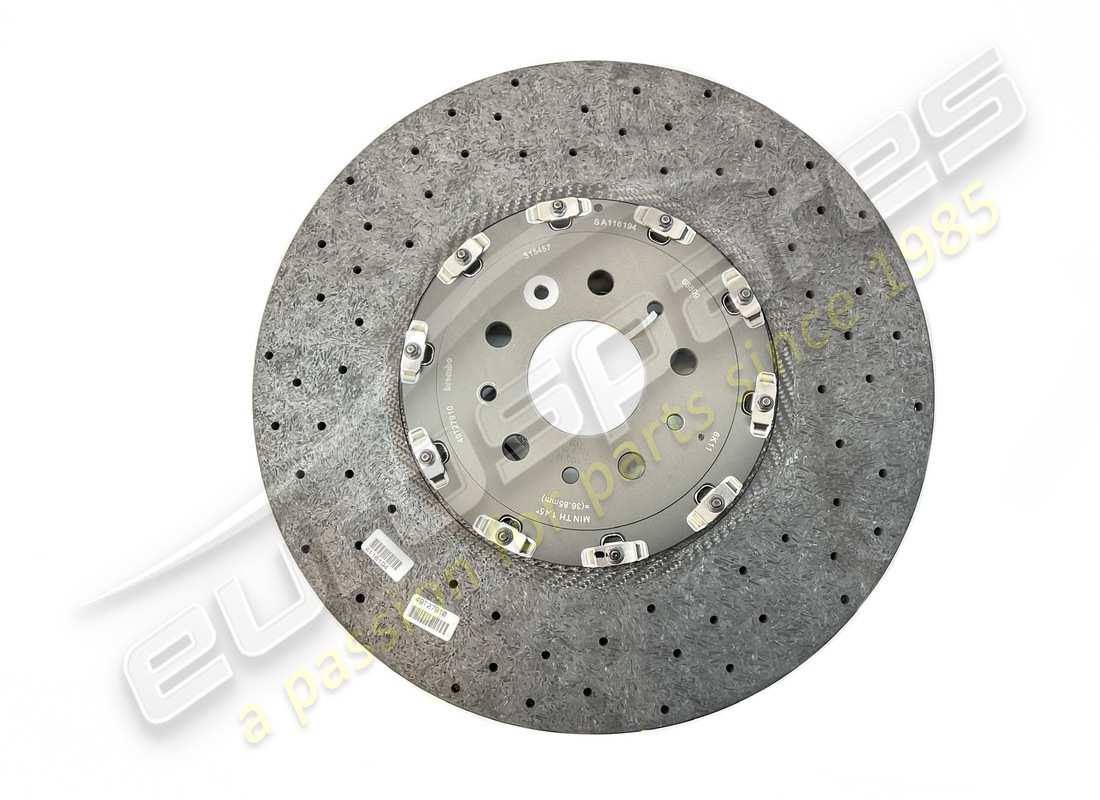

                                                          BRAKE DISC
                                                          -Applicable after depletion of 274334-
                                                          from £2,793.43
                                                          from £2,793.43
                                                          This part replaces part number 274334 which we have in stock
                                                          # 027
                                                          MPN: 260675
                                                          LH DISC SHIELD
                                                          from £22.35
                                                          from £22.35
                                                          # 027
                                                          MPN: 260676
                                                          RH DISC SHIELD
                                                          from £22.35
                                                          from £22.35
                                                          # 028
                                                          MPN: 190870
                                                          SCREW
                                                          -M6 X 14-
                                                          from £1.42
                                                          from £1.42
                                                          # 029
                                                          MPN: 228131
                                                          SCREW
                                                          -M8 X 20-
                                                          from £0.53
                                                          from £0.53
                                                          # 030
                                                          MPN: 104370
                                                          SCREW
                                                          from £5.60
                                                          from £5.60
                                                          This part replaces part number 139981
                                                          # 031
                                                          MPN: 228132
                                                          WASHER
                                                          from £0.53
                                                          from £0.53
                                                          # 032
                                                          MPN: 268410
                                                          PLATE
                                                          from £4.32
                                                          from £4.32
                                                          # 033
                                                          MPN: 14306931
                                                          SCREW
                                                          -M8 X 50-
                                                          from £0.50
                                                          from £0.50
                                                          # 034
                                                          MPN: 247997
                                                          LH BRAKE AIR FLAP
                                                          from £40.01
                                                          from £40.01
                                                          # 034
                                                          MPN: 247998
                                                          RH BRAKE AIR FLAP
                                                          from £40.01
                                                          from £40.01
                                                          # 035
                                                          MPN: 260586
                                                          ABS CABLE GUIDE BRACKET
                                                          from £9.15
                                                          from £9.15
                                                          # 036
                                                          MPN: 265000
                                                          STABILISER BAR
                                                          from £117.99
                                                          from £117.99
                                                          # 037
                                                          MPN: 236241
                                                          PLUG
                                                          from £15.33
                                                          from £15.33
                                                          # 038
                                                          MPN: 245822
                                                          RETAINER BRACKET
                                                          from £6.88
                                                          from £6.88
                                                          # 039
                                                          MPN: 247950
                                                          SPHERICAL TIE-ROD
                                                          -On lower LH arm-
                                                          from £30.63
                                                          from £30.63
                                                          # 039
                                                          MPN: 247952
                                                          SPHERICAL TIE-ROD
                                                          -On lower RH arm-
                                                          from £55.69
                                                          from £55.69
                                                          # 040
                                                          MPN: 12164714
                                                          NUT
                                                          from £0.53
                                                          from £0.53
                                                          This part replaces part number 10791014
                                                          # 041
                                                          MPN: 12601474
                                                          WASHER
                                                          from £0.53
                                                          from £0.53
                                                          This part replaces part number 12601471 which we have in stock - and 2 more. Click to view details
                                                          # 042
                                                          MPN: 245843
                                                          SCREW
                                                          -M10 X 1.25 X 30-
                                                          from £1.31
                                                          from £1.31
                                                          # 043
                                                          MPN: 286144
                                                          BUSHING MOUNT
                                                          from £7.13
                                                          from £7.13
                                                          # 044
                                                          MPN: 10397680
                                                          GROMMET
                                                          from £0.57
                                                          from £0.57
                                                          # 045
                                                          MPN: 288829
                                                          STOP CAP
                                                          -No longer supplied-
                                                          from £27.74
                                                          from £27.74
                                                          # 046
                                                          MPN: 70006024
                                                          GAITER REPLACEMENT KIT
                                                          -Wheel/gearbox side-
                                                          from £78.99
                                                          from £78.99
                                                          # 046
                                                          MPN: 70006025
                                                          GAITER REPLACEMENT KIT
                                                          -Gearbox side-
                                                          from £78.99
                                                          from £78.99
                                                          # 047
                                                          MPN: 234671
                                                          UPPER CONNECTOR
                                                          from £41.07
                                                          from £41.07
                                                          This part replaces part number 245841
                                                          # 048
                                                          MPN: 248790
                                                          SCREW
                                                          from £2.11
                                                          from £2.11
