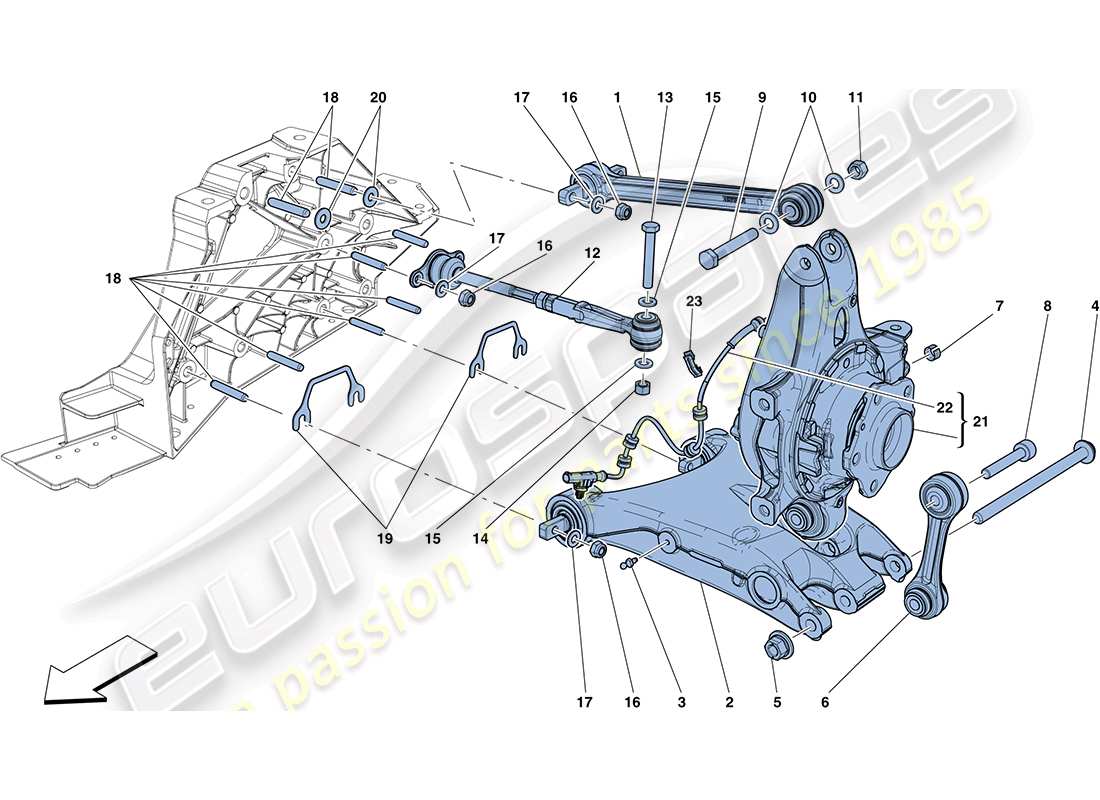

0039 - REAR SUSPENSION - ARMS
Ferrari FF (Europe) REAR SUSPENSION - ARMS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 259687

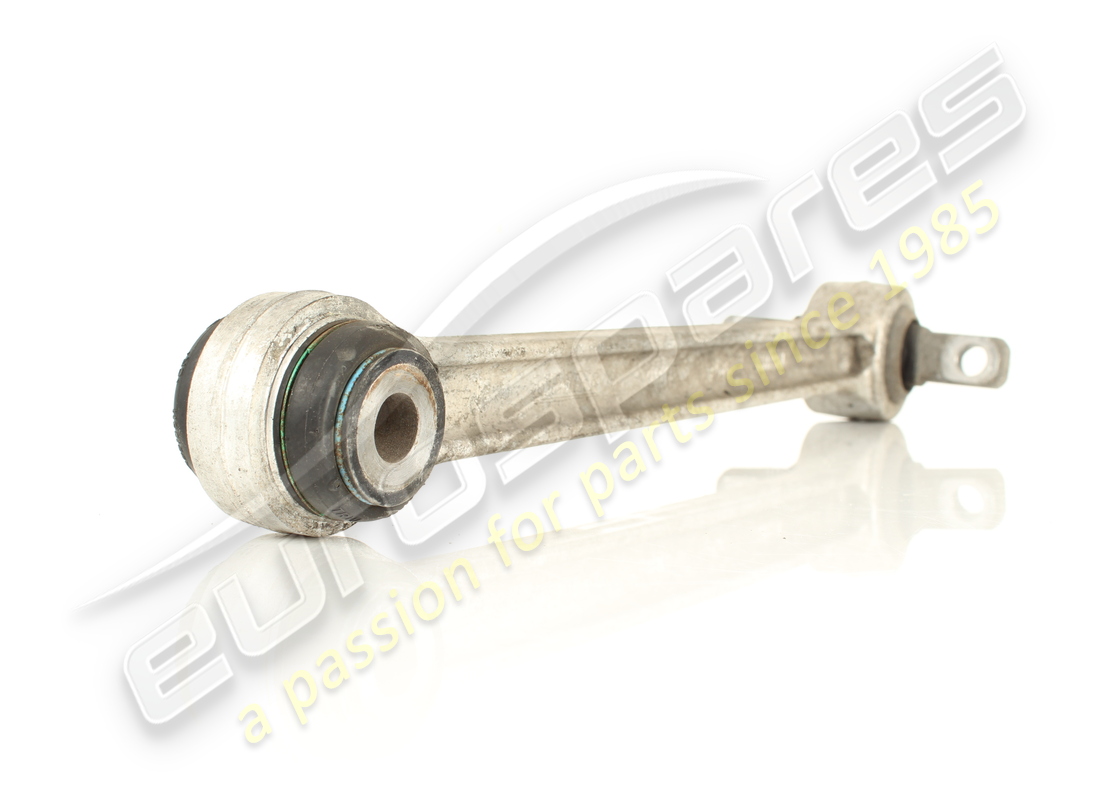

REAR UPPER LEVER
from £133.65
from £133.65
This part replaces part number 259014 - and 1 more. Click to view details
# 002
MPN: 262594
LH REAR LOWER LEVER
-No longer supplied- -Replaced by 305679-
Supersession
Supersession
This part replaces part number 261002
# 002
MPN: 262595
COMPL. RH REAR LOWER ARM
-No longer supplied- -Replaced by 305680-
Supersession
Supersession
This part replaces part number 261003
# 002
MPN: 305679
COMPL. LH REAR LOWER ARM
Supersession
Supersession
This part replaces part number 262594
# 002
MPN: 305680
RH REAR LOWER LEVER
from £326.64
from £326.64
This part replaces part number 262595 - and 2 more. Click to view details
# 003
MPN: 216973
BALL JOINT
from £2.26
from £2.26
# 004
MPN: 238656
SPECIAL SCREW
from £8.05
from £8.05
# 005
MPN: 238063
NUT
from £1.53
from £1.53
# 006
MPN: 259688
ANTI-ROTATION LINKAGE
from £56.95
from £56.95
This part replaces part number 236783 which we have in stock - and 8 more. Click to view details
# 007
MPN: 222956
COMPENSATOR RING
from £8.68
from £8.68
# 008
MPN: 238258
SCREW
-M12 X 1.25 X 75-
from £16.29
from £16.29
# 009
MPN: 15541434
SCREW
-M12 X 1.25 X 80-
from £1.22
from £1.22
# 010
MPN: 14496721
WASHER
from £0.51
from £0.51
# 011
MPN: 203666
NUT
from £0.53
from £0.53
# 012
MPN: 245161
COMPLETE TIE-ROD
from £94.93
from £94.93
# 013
MPN: 15541434
SCREW
-M12 X 1.25 X 80-
from £1.22
from £1.22
# 014
MPN: 203666
NUT
from £0.53
from £0.53
# 015
MPN: 14496721
WASHER
from £0.51
from £0.51
# 016
MPN: 104114
NUT
Supersession
Supersession
This part replaces part number 15503711 - and 1 more. Click to view details
# 017
MPN: 14496624
WASHER
-D. 10.5-21 X 2-
from £0.48
from £0.48
This part replaces part number 14496601 - and 2 more. Click to view details
# 018
MPN: 264528
THREADED ROD
from £1.94
from £1.94
This part replaces part number 249294 which we have in stock
# 019
MPN: 262539
ADJUSTMENT PLATE
-Th. 2 mm-
from £4.83
from £4.83
# 019
MPN: 262540
ADJUSTMENT PLATE
-Th. 2.5 mm-
from £4.83
from £4.83
# 019
MPN: 262541
ADJUSTMENT PLATE
-Th. 3 mm-
from £4.83
from £4.83
# 019
MPN: 262542
ADJUSTMENT PLATE
-Th. 3.5 mm-
from £4.83
from £4.83
# 019
MPN: 262543
ADJUSTMENT PLATE
-Th. 4 mm-
from £4.83
from £4.83
# 019
MPN: 262544
ADJUSTMENT PLATE
-Th. 0.5 mm-
from £4.83
from £4.83
# 019
MPN: 262545
ADJUSTMENT PLATE
-Th. 1 mm-
from £4.83
from £4.83
# 019
MPN: 262546
ADJUSTMENT PLATE
-Th. 1.5 mm-
from £4.83
from £4.83
# 020
MPN: 12646821
WASHER
from £0.53
from £0.53
# 021
MPN: 268379

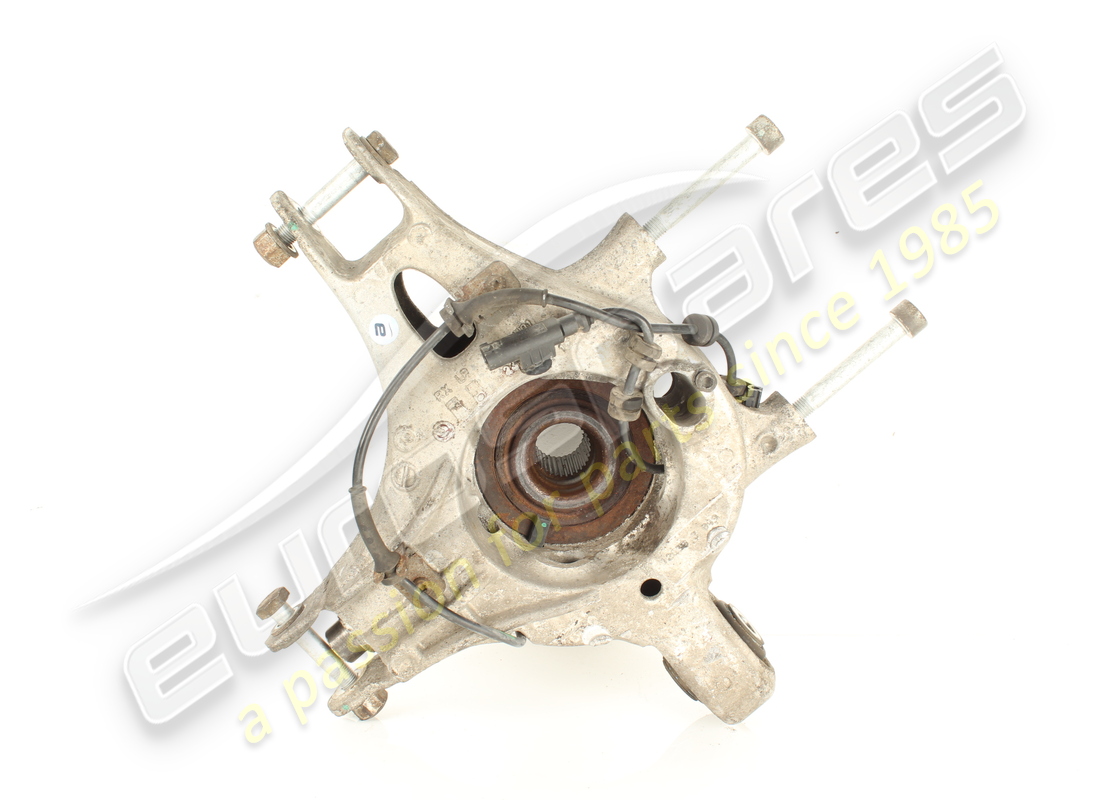

LH HUB CARRIER
-Applicable up to Ass. No. 107431- -Applicable until depletion-
Supersession
Supersession
This part replaces part number 238469
# 021
MPN: 268380
RH HUB CARRIER
-Applicable up to Ass. No. 107431- -Applicable until depletion-
Supersession
Supersession
This part replaces part number 238471
# 021
MPN: 276809
LH HUB CARRIER
-Applicable from Ass. No. 107432- -Applicable after depletion of 268379- -No longer supplied- -Replaced by 299933-
Supersession
Supersession
This part replaces part number 268379
# 021
MPN: 276810
RH HUB CARRIER
-Applicable from Ass. No. 107432- -Applicable after depletion of 268380-
from £1,313.63
from £1,313.63
This part replaces part number 268380
# 021
MPN: 299933
COMPL. LH REAR HUB CARRIER
-Applicable from Ass. No. 107432-
from £1,313.63
from £1,313.63
This part replaces part number 276809
# 022
MPN: 252510

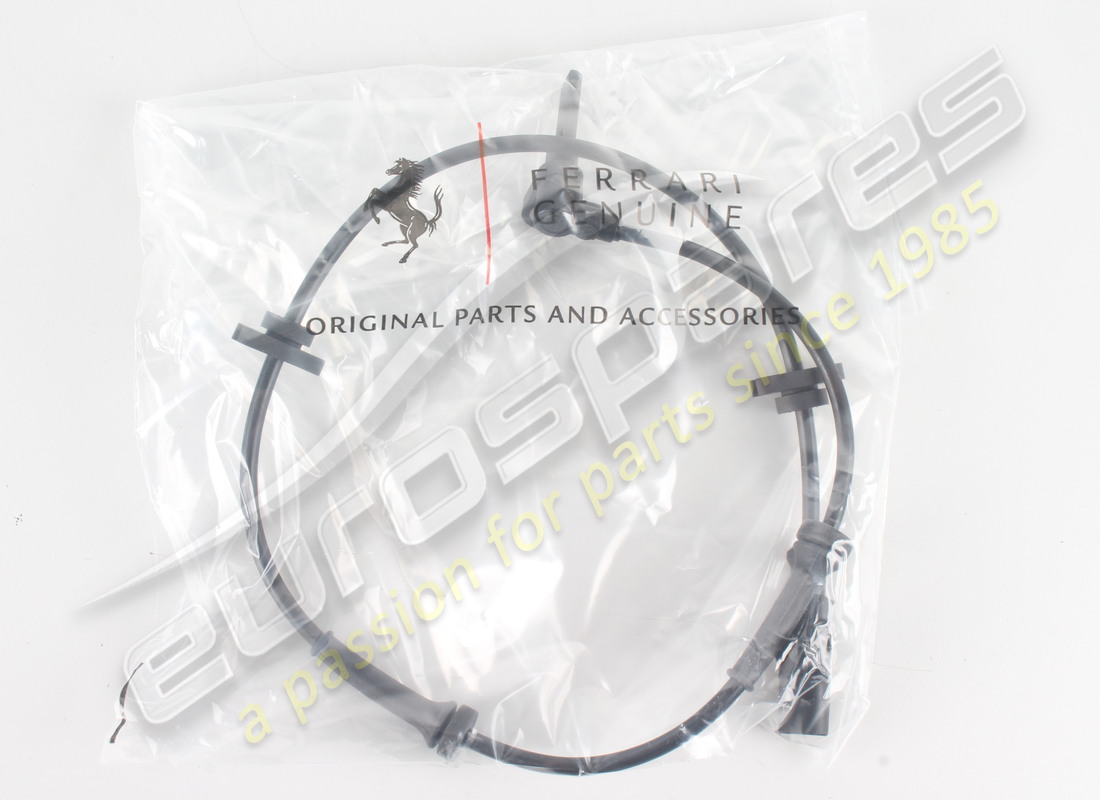

ABS SENSOR
-Applicable up to Ass. No. 107431- -Applicable until depletion-
from £99.56
from £99.56
This part replaces part number 240892
# 022
MPN: 252514
ABS SENSOR
from £109.06
from £109.06
# 023
MPN: 251744
CLIP
-Applicable for sensor Part No. 252514, ref. 22- -Applicable from Ass. No. 107432-
from £0.87
from £0.87
