0012 - INTAKE MANIFOLD

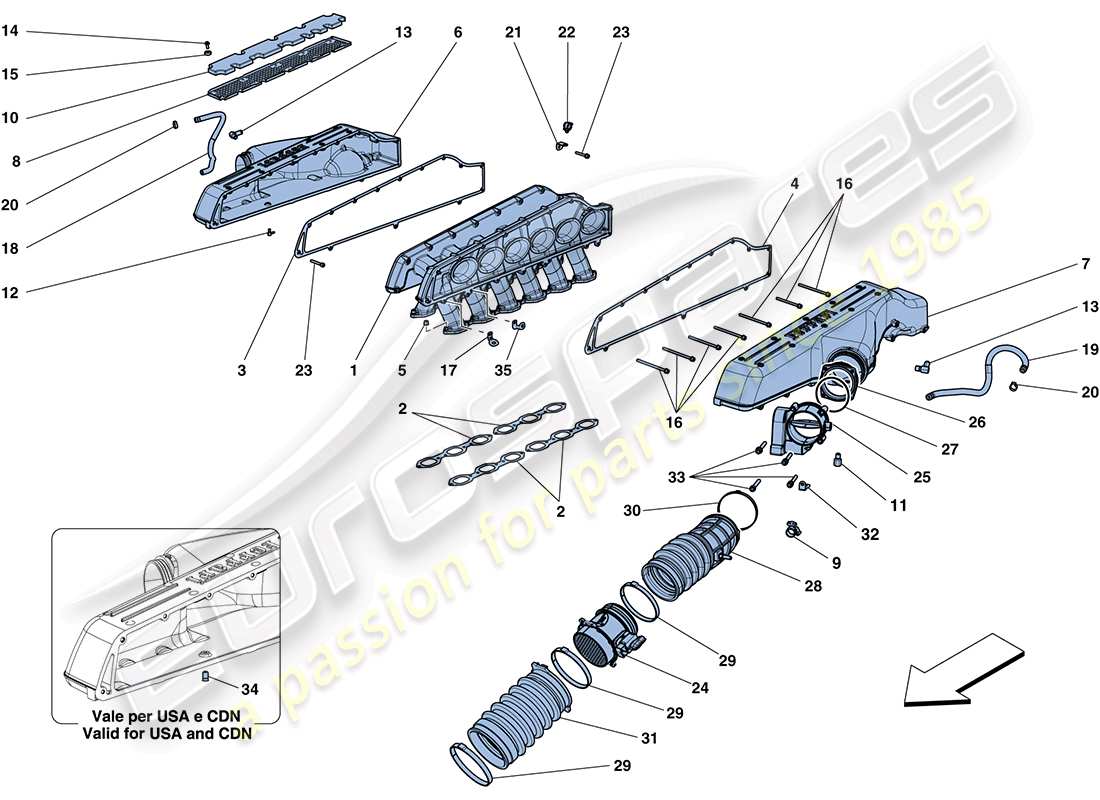

Ferrari FF (Europe) INTAKE MANIFOLD Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Price
                                        # 001
                                        MPN: 271909
                                        COMPL. INTAKE MANIFOLD
                                        -Applicable up to engine No. 176320-
                                        from £1,897.50
                                        from £1,897.50
                                        # 001
                                        MPN: 280957
                                        COMPL. INTAKE MANIFOLD
                                        -Applicable from engine No. 176321-
                                        from £2,642.92
                                        from £2,642.92
                                        # 002
                                        MPN: 259680
                                        GASKET
                                        -Applicable until depletion-
                                        Supersession
                                        Supersession
                                        # 002
                                        MPN: 318409
                                        GASKET
                                        -Applicable after depletion of 259680-
                                        from £62.16
                                        from £62.16
                                        This part replaces part number 259680
                                        # 003
                                        MPN: 276948
                                        RH SEAL
                                        -Applicable until depletion-
                                        Supersession
                                        Supersession
                                        # 003
                                        MPN: 317648
                                        RH SEAL
                                        -Applicable after depletion of 276948-
                                        from £24.50
                                        from £24.50
                                        This part replaces part number 276948
                                        # 004
                                        MPN: 276946
                                        LH SEAL
                                        -Applicable until depletion-
                                        Supersession
                                        Supersession
                                        # 004
                                        MPN: 317649
                                        LH SEAL
                                        -Applicable after depletion of 276946-
                                        from £24.50
                                        from £24.50
                                        This part replaces part number 276946
                                        # 005
                                        MPN: 228265
                                        NUT
                                        from £0.51
                                        from £0.51
                                        # 006
                                        MPN: 276950
                                        RH INTAKE PLENUM
                                        -Applicable until depletion-
                                        Supersession
                                        Supersession
                                        # 006
                                        MPN: 815966
                                        RH INTAKE PLENUM
                                        -Applicable after depletion of 276950-
                                        from £936.82
                                        from £936.82
                                        This part replaces part number 276950
                                        # 007
                                        MPN: 276952
                                        LH INTAKE PLENUM
                                        -Applicable until depletion-
                                        Supersession
                                        Supersession
                                        # 007
                                        MPN: 815967
                                        LH INTAKE PLENUM
                                        -Applicable after depletion of 276952-
                                        from £936.82
                                        from £936.82
                                        This part replaces part number 276952
                                        # 008
                                        MPN: 257849
                                        COMPL. RH LINER HOLDER FRAME
                                        from £216.19
                                        from £216.19
                                        # 008
                                        MPN: 257850
                                        COMPL. LH LINER HOLDER FRAME
                                        from £216.19
                                        from £216.19
                                        # 009
                                        MPN: 178430
                                        CLIP
                                        from £0.53
                                        from £0.53
                                        # 010
                                        MPN: 257851
                                        RUBBER LINER
                                        from £21.62
                                        from £21.62
                                        # 011
                                        MPN: 268877
                                        CONNECTOR
                                        from £36.03
                                        from £36.03
                                        # 012
                                        MPN: 268875
                                        CONNECTOR
                                        -Not for USA, CDN, USA LIGHT- -Applicable up to engine No. 176320-
                                        from £19.86
                                        from £19.86
                                        # 012
                                        MPN: 274736
                                        CONNECTOR
                                        -Not for USA, CDN, USA LIGHT- -Applicable from engine No. 176321-
                                        # 013
                                        MPN: 198223
                                        CONNECTOR
                                        -Applicable until depletion-
                                        from £30.32
                                        from £30.32
                                        # 013
                                        MPN: 287234
                                        CONNECTOR
                                        -Applicable after depletion of 198223- -No longer supplied- -Replaced by 291079-
                                        Supersession
                                        Supersession
                                        # 013
                                        MPN: 291079
                                        CONNECTOR
                                        from £129.71
                                        from £129.71
                                        This part replaces part number 287234
                                        # 014
                                        MPN: 259328
                                        SCREW
                                        -M6 X 14 X 1- -No longer supplied- -Replaced by 287120-
                                        Supersession
                                        Supersession
                                        # 014
                                        MPN: 287120
                                        SCREW
                                        -M6 X 14 X 1-
                                        from £23.01
                                        from £23.01
                                        This part replaces part number 259328
                                        # 015
                                        MPN: 216292
                                        GASKET
                                        from £2.06
                                        from £2.06
                                        # 016
                                        MPN: 14300424
                                        SCREW
                                        -M6 X 95- -Fastening plenums in lower area- -No longer supplied- -Replaced by 14300434-
                                        Supersession
                                        Supersession
                                        # 016
                                        MPN: 14300434
                                        SCREW
                                        -M6 X 95- -Fastening plenums in lower area-
                                        from £1.39
                                        from £1.39
                                        This part replaces part number 14300424
                                        # 016
                                        MPN: 14300524
                                        SCREW
                                        -M6 X 75- -Lower rear fastening for LH plenum in area under pump- -No longer supplied- -Replaced by 14300534-
                                        from £0.92
                                        from £0.92
                                        # 016
                                        MPN: 14300534
                                        SCREW
                                        -M6 X 75- -Lower rear fastening for LH plenum in area under pump-
                                        from £1.60
                                        from £1.60
                                        This part replaces part number 14300524
                                        # 016
                                        MPN: 14303824
                                        SCREW
                                        -M6 X 60- -Fastening plenum in area under RH pump- -No longer supplied- -Replaced by 14303834-
                                        from £1.27
                                        from £1.27
                                        This part replaces part number 224997
                                        # 016
                                        MPN: 14303834
                                        SCREW
                                        -M6 X 60- -Fastening plenum in area under RH pump-
                                        from £0.90
                                        from £0.90
                                        # 016
                                        MPN: 155304
                                        SCREW
                                        -M6 X 85- -Fastening plenum in area under RH pump- -No longer supplied- -Replaced by 278351-
                                        from £0.70
                                        from £0.70
                                        # 016
                                        MPN: 270936
                                        SCREW
                                        -M6 X 40 X 1- -Fastening plenum to manifold- -Applicable until depletion-
                                        Supersession
                                        Supersession
                                        # 016
                                        MPN: 278351
                                        SCREW
                                        -M6 X 85- -Fastening plenum in area under RH pump-
                                        from £3.57
                                        from £3.57
                                        This part replaces part number 155304
                                        # 016
                                        MPN: 285568
                                        SCREW
                                        -M6 X 40 X 1- -Fastening plenum to manifold- -Applicable after depletion of 270936-
                                        from £0.47
                                        from £0.47
                                        This part replaces part number 270936
                                        # 017
                                        MPN: 262736
                                        BRACKET
                                        from £4.97
                                        from £4.97
                                        # 018
                                        MPN: 276166
                                        RH FLUSH PIPE
                                        from £88.27
                                        from £88.27
                                        # 019
                                        MPN: 276167
                                        LH FLUSH PIPE
                                        from £88.27
                                        from £88.27
                                        # 020
                                        MPN: 13434670
                                        COLLAR
                                        from £0.51
                                        from £0.51
                                        # 021
                                        MPN: 261374
                                        BRACKET
                                        from £120.09
                                        from £120.09
                                        # 022
                                        MPN: 247440
                                        CLIP
                                        from £0.54
                                        from £0.54
                                        # 023
                                        MPN: 233600
                                        SCREW
                                        -M6 X 12-
                                        from £0.53
                                        from £0.53
                                        # 024
                                        MPN: 245028

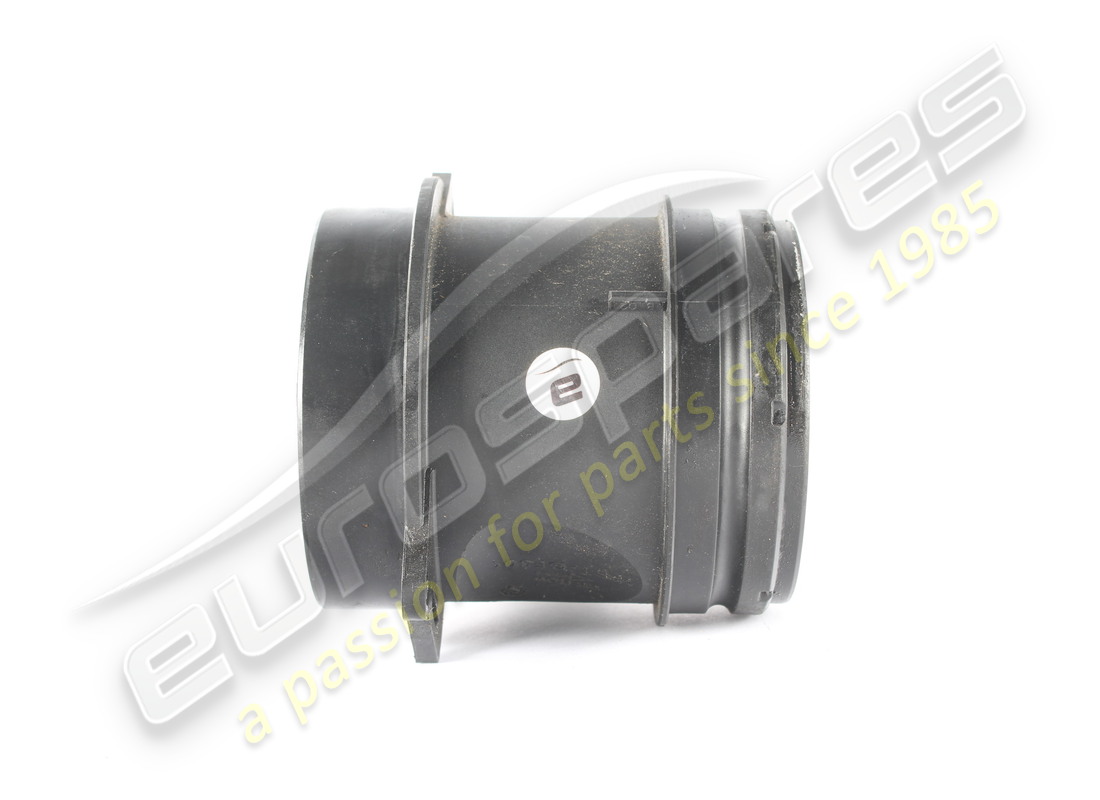

                                        AIR FLOW METER
                                        from £109.71
                                        from £109.71
                                        # 026
                                        MPN: 240262
                                        SHIM
                                        from £61.82
                                        from £61.82
                                        This part replaces part number 195206 which we have in stock
                                        # 027
                                        MPN: 150302
                                        GASKET
                                        -Applicable up to engine No. 186322-
                                        from £1.57
                                        from £1.57
                                        # 028
                                        MPN: 269864
                                        RH CONNECTOR PIPE
                                        -Applicable for USA, CDN, USA LIGHT- -Applicable up to engine No. 195647-
                                        from £104.49
                                        from £104.49
                                        # 028
                                        MPN: 269865
                                        LH CONNECTOR PIPE
                                        -Applicable for USA, CDN, USA LIGHT- -Applicable up to engine No. 195647-
                                        from £104.49
                                        from £104.49
                                        # 028
                                        MPN: 269866
                                        RH CONNECTOR PIPE
                                        -Not for USA, CDN, USA LIGHT-
                                        from £45.58
                                        from £45.58
                                        # 028
                                        MPN: 269867
                                        LH CONNECTOR PIPE
                                        -Not for USA, CDN, USA LIGHT-
                                        from £45.58
                                        from £45.58
                                        # 028
                                        MPN: 282233
                                        RH SLEEVE
                                        -Applicable for USA, CDN, USA LIGHT- -Applicable from engine No. 195648-
                                        from £67.15
                                        from £67.15
                                        # 028
                                        MPN: 282234
                                        LH SLEEVE
                                        -Applicable for USA, CDN, USA LIGHT- -Applicable from engine No. 195648-
                                        from £67.15
                                        from £67.15
                                        # 029
                                        MPN: 190151
                                        RING CLAMP
                                        from £1.99
                                        from £1.99
                                        This part replaces part number 204436
                                        # 030
                                        MPN: 180046
                                        RING CLAMP
                                        from £1.27
                                        from £1.27
                                        # 031
                                        MPN: 266404
                                        CONNECTOR PIPE
                                        from £32.23
                                        from £32.23
                                        # 032
                                        MPN: 268987
                                        CABLE RETAINER BRACKET
                                        from £9.88
                                        from £9.88
                                        # 033
                                        MPN: 14305924
                                        SCREW
                                        -M6 X 45- -No longer supplied- -Replaced by 231624-
                                        from £0.48
                                        from £0.48
                                        # 033
                                        MPN: 231624
                                        SCREW
                                        -M6 X 45-
                                        from £0.51
                                        from £0.51
                                        This part replaces part number 14305924
                                        # 034
                                        MPN: 219786
                                        THREADED PLUG
                                        -Applicable for USA, CDN, USA LIGHT-
                                        from £7.94
                                        from £7.94
                                        # 035
                                        MPN: 285240
                                        BRACKET
                                        -Applicable for USA, CDN, USA LIGHT- -Applicable from engine No. 195648-
                                        from £7.20
                                        from £7.20
