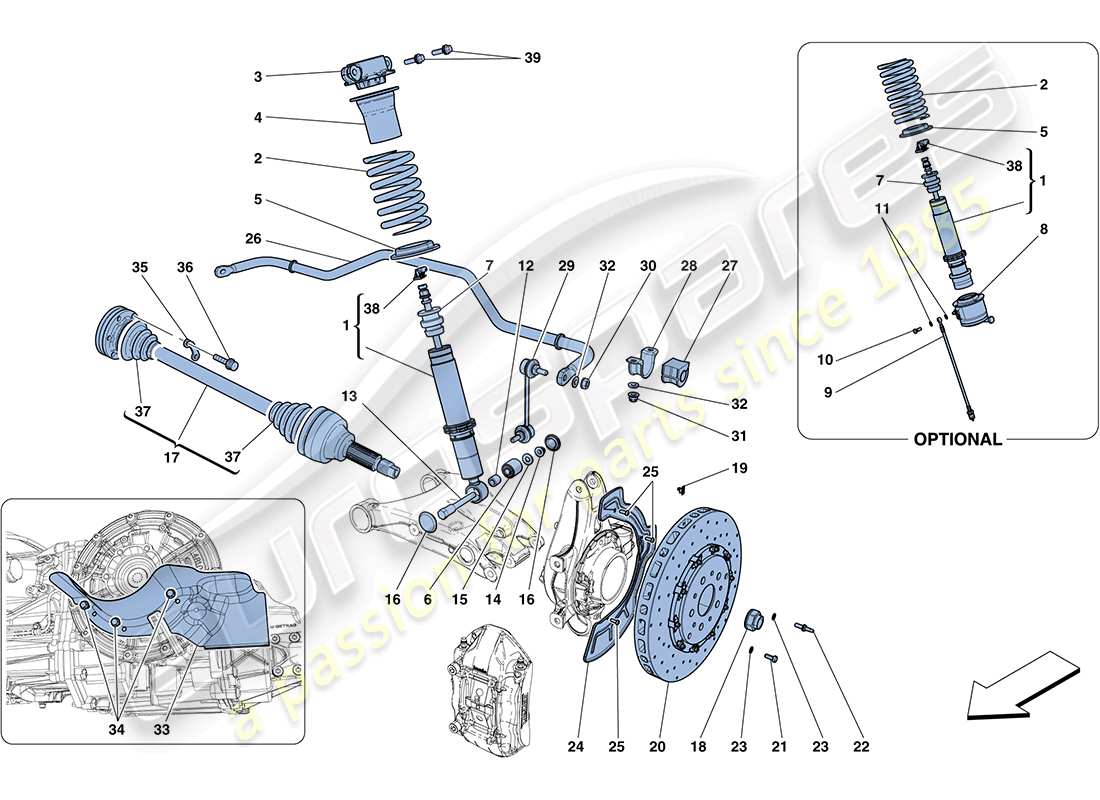

0038 - Rear Suspension - Shock Absorber and Brake Disc
Ferrari FF (Europe) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 264734
REAR SHOCK ABSORBER
from £890.35
from £890.35
# 001
MPN: 264736
REAR SHOCK ABSORBER
-Version with lifter-
from £1,574.64
from £1,574.64
# 002
MPN: 257757
SPRING
from £65.18
from £65.18
# 002
MPN: 269637
SPRING
-Version with lifter-
from £41.91
from £41.91
# 003
MPN: 274308
STOP CAP
from £68.23
from £68.23
# 004
MPN: 212517
UPPER SPACER
from £3.65
from £3.65
# 005
MPN: 211236
LOWER SPACER
from £8.83
from £8.83
# 006
MPN: 157630
BALL JOINT
from £48.50
from £48.50
This part replaces part number 159262
# 007
MPN: 267936
ENDSTOP BUSH
from £11.85
from £11.85
This part replaces part number 246490 which we have in stock - and 6 more. Click to view details
# 008
MPN: 262384
COMPL. ACTUATOR
-Version with lifter-
from £446.74
from £446.74
# 009
MPN: 260408
RUBBER PIPE
-Version with lifter-
from £17.66
from £17.66
# 010
MPN: 261587
CONNECTION FOR UNION
-Version with lifter-
from £16.65
from £16.65
# 011
MPN: 259638
GASKET
-Version with lifter-
from £7.75
from £7.75
# 012
MPN: 237821
BUSHING
from £2.78
from £2.78
# 013
MPN: 246962
SPECIAL SCREW
from £15.97
from £15.97
# 014
MPN: 255271
NUT
from £0.44
from £0.44
This part replaces part number 14058721 - and 1 more. Click to view details
# 015
MPN: 12646921
WASHER
from £0.30
from £0.30
This part replaces part number 12646901 which we have in stock - and 1 more. Click to view details
# 016
MPN: 14507987
CAP
from £1.16
from £1.16
# 017
MPN: 274635
AXLE SHAFT
from £363.63
from £363.63
# 018
MPN: 203780
NUT
from £14.27
from £14.27
This part replaces part number 187814
# 019
MPN: 204781
CLIP
-Fastening wear indicator cable-
from £0.47
from £0.47
This part replaces part number 12486580 - and 1 more. Click to view details
# 020
MPN: 274335
BRAKE DISC
-Applicable until depletion-
Supersession
Supersession
# 020
MPN: 296894
BRAKE DISC
-Applicable after depletion of 274335-
from £2,672.10
from £2,672.10
This part replaces part number 274335
# 021
MPN: 228131
SCREW
-M8 X 20-
from £0.53
from £0.53
# 022
MPN: 104370
SCREW
from £5.66
from £5.66
This part replaces part number 139981
# 023
MPN: 228132
WASHER
from £0.53
from £0.53
# 024
MPN: 257423
LH REAR DISC SHIELD
from £17.78
from £17.78
This part replaces part number 240968 which we have in stock - and 4 more. Click to view details
# 024
MPN: 257424
RH REAR DISC SHIELD
from £17.78
from £17.78
This part replaces part number 240969 which we have in stock - and 5 more. Click to view details
# 025
MPN: 250657
SCREW
-M6 X 14-
from £4.39
from £4.39
# 026
MPN: 262790
STABILISER BAR
from £119.49
from £119.49
# 027
MPN: 236242
PLUG
from £16.65
from £16.65
# 028
MPN: 244778
RETAINER BRACKET
from £6.62
from £6.62
# 029
MPN: 242391
SPHERICAL TIE-ROD
-On lower RH arm-
from £35.22
from £35.22
# 029
MPN: 242392
SPHERICAL TIE-ROD
-On lower LH arm-
from £35.26
from £35.26
# 030
MPN: 12164714
NUT
from £0.53
from £0.53
This part replaces part number 10791014
# 031
MPN: 12578321
NUT
from £0.53
from £0.53
# 032
MPN: 12601474
WASHER
from £0.53
from £0.53
This part replaces part number 12601471 which we have in stock - and 2 more. Click to view details
# 033
MPN: 248707
LH AXLE SHAFT HEAT SHIELD
from £21.27
from £21.27
# 033
MPN: 259461
RH AXLE SHAFT HEAT SHIELD
from £40.24
from £40.24
# 034
MPN: 16296924
SCREW
-M6 X 14-
from £0.50
from £0.50
This part replaces part number 289834
# 035
MPN: 220325
SHIM PLATE
from £2.54
from £2.54
# 036
MPN: 237590
SCREW
from £2.44
from £2.44
# 037
MPN: 70006023
GAITER REPLACEMENT KIT
-Wheel/gearbox side-
from £79.99
from £79.99
# 038
MPN: 234671
UPPER CONNECTOR
from £41.61
from £41.61
This part replaces part number 245841
# 039
MPN: 248790
SCREW
from £2.14
from £2.14
