0023 - COMPLETE PEDAL BOARD ASSEMBLY

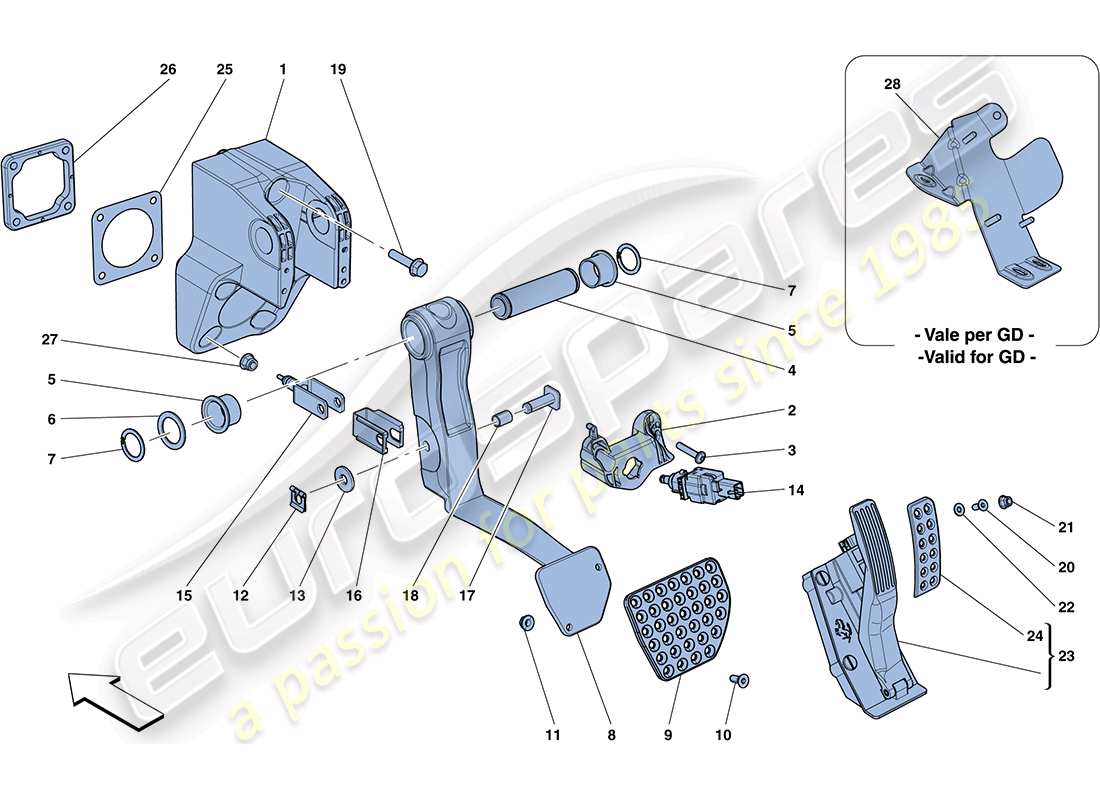

Ferrari FF (Europe) COMPLETE PEDAL BOARD ASSEMBLY Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 261612
PEDAL BOARD MOUNTING
from £138.78
from £138.78
# 002
MPN: 259123
F1 SWITCH BRACKET
from £15.86
from £15.86
# 003
MPN: 240931
SCREW
from £2.38
from £2.38
# 004
MPN: 240930
PIN
from £23.78
from £23.78
# 005
MPN: 240771
PIVOT BUSHING
from £25.82
from £25.82
# 006
MPN: 240929
RUBBER WASHER
from £2.84
from £2.84
# 007
MPN: 12700076
SEEGER RING FOR SHAFT
from £2.84
from £2.84
# 008
MPN: 261832
BRAKE PEDAL
-Not for GD-
from £441.00
from £441.00
# 008
MPN: 261846
BRAKE PEDAL
-Applicable for GD-
from £396.35
from £396.35
# 009
MPN: 240987
DRILLED PLATE
from £75.49
from £75.49
# 010
MPN: 14441324
SCREW
-M6 X 16-
from £0.53
from £0.53
# 011
MPN: 12578111
NUT
from £0.53
from £0.53
# 012
MPN: 11064176
SAFETY CLIP
from £0.89
from £0.89
# 013
MPN: 245181
RUBBER WASHER
from £2.18
from £2.18
# 014
MPN: 201957
PUSHBUTTON SWITCH
from £13.11
from £13.11
This part replaces part number 187869 - and 6 more. Click to view details
# 015
MPN: 245178
BRAKE SERVO LINKAGE YOKE
from £21.80
from £21.80
# 016
MPN: 245179
CAGE
from £5.46
from £5.46
# 017
MPN: 245180
PIN
from £23.11
from £23.11
# 018
MPN: 260639
BUSHING
from £6.88
from £6.88
# 019
MPN: 16287421
SCREW
-M8 X 35-
Supersession
Supersession
# 020
MPN: 69855300
PRESS-FIT BUTTON
from £0.53
from £0.53
# 021
MPN: 12575421
NUT
Supersession
Supersession
# 022
MPN: 12646624
WASHER
from £0.53
from £0.53
# 023
MPN: 243117
COMPLETE FLOOR-HINGED ACCELERATOR PEDAL
from £86.77
from £86.77
# 024
MPN: 243120
ACCELERATOR PEDAL PLATE
from £147.01
from £147.01
# 025
MPN: 190378
GASKET
from £0.67
from £0.67
# 026
MPN: 196080
SHIM
from £20.05
from £20.05
# 027
MPN: 12578211
NUT
from £0.53
from £0.53
# 028
MPN: 82467100
ACCELERATOR PEDAL BRACKET
-Applicable for GD-
from £9.48
from £9.48
