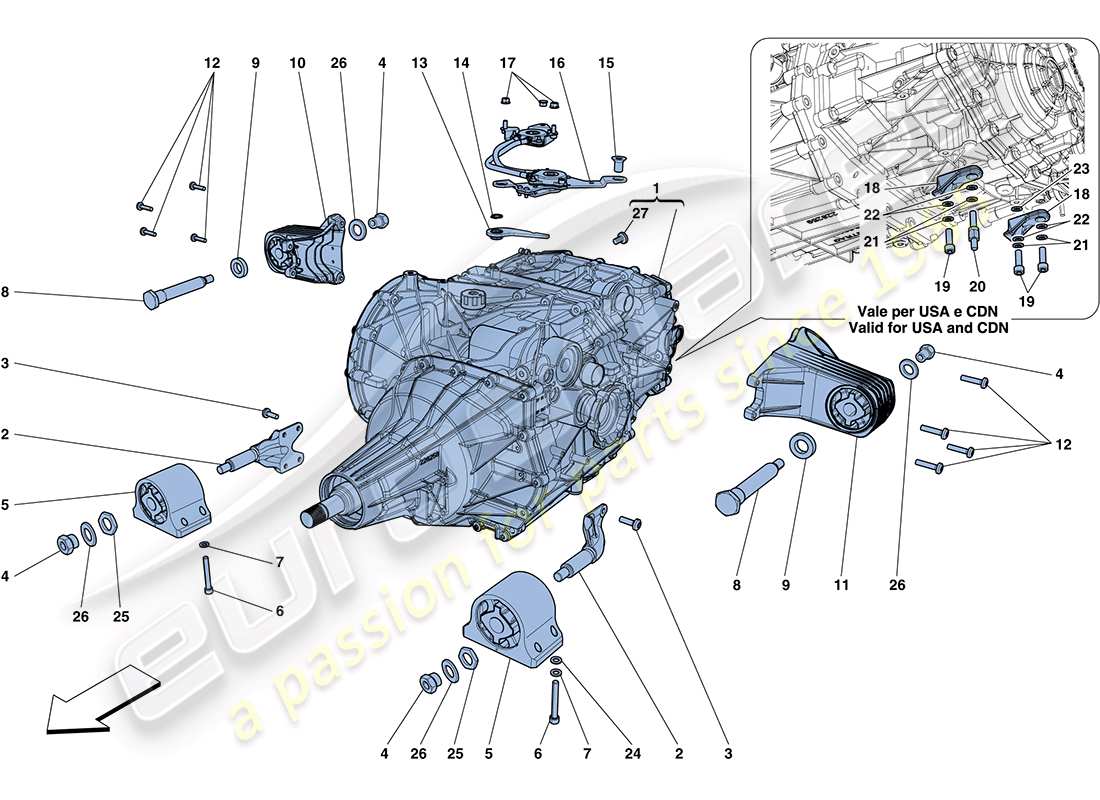

0024 - GEARBOX HOUSING
Ferrari FF (Europe) GEARBOX HOUSING Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 270501
COMPL. DCT GEARBOX
-Request ASM authorisation-
from £17,379.27
from £17,379.27
# 002
MPN: 235647
FRONT STRUT
-Applicable until depletion-
from £54.48
from £54.48
This part replaces part number 278063 - and 3 more. Click to view details
# 002
MPN: 295438
FRONT STRUT
-Applicable after depletion of 235647-
from £66.14
from £66.14
This part replaces part number 235647 which we have in stock - and 1 more. Click to view details
# 003
MPN: 247856
SCREW
-M8 X 1.25 X 25-
from £0.99
from £0.99
# 004
MPN: 260046
NUT
-No longer supplied- -Replaced by 287404-
Supersession
Supersession
# 004
MPN: 287404
NUT
from £3.86
from £3.86
This part replaces part number 260046 - and 3 more. Click to view details
# 005
MPN: 253004
COMPL. BUSHING MOUNTING
from £97.87
from £97.87
# 006
MPN: 14308924
SCREW
-M8 X 60-
from £2.12
from £2.12
# 007
MPN: 11198074
WASHER
from £0.47
from £0.47
This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
# 008
MPN: 243075
GEARBOX MOUNTING BUSH PIN
from £37.31
from £37.31
# 009
MPN: 243122
SHIM
from £1.71
from £1.71
# 010
MPN: 266362
COMPL. RH REAR STRUT
from £117.22
from £117.22
# 011
MPN: 266364
COMPL. LH REAR STRUT
from £119.67
from £119.67
# 012
MPN: 247857
SCREW
-M8 X 1.25 X 35-
from £1.05
from £1.05
# 013
MPN: 238370
COMPLETE RELEASE LEVER
from £35.94
from £35.94
# 014
MPN: 11066176
SEEGER RING
from £0.47
from £0.47
# 015
MPN: 243151
SCREW
-M12 X 1.25 X 20-
from £3.06
from £3.06
# 016
MPN: 268926
COMPL. PARK LOCK RELEASE
-Applicable until depletion-
from £168.15
from £168.15
# 016
MPN: 292667
COMPL. PARK LOCK RELEASE
-Applicable after depletion of 268926-
from £371.20
from £371.20
This part replaces part number 268926 which we have in stock
# 017
MPN: 14040611
NUT
from £0.53
from £0.53
# 018
MPN: 248689
RETENTION BRACKET
-Applicable for USA, CDN, USA LIGHT-
from £34.08
from £34.08
# 019
MPN: 14306474
SCREW
-Applicable for USA, CDN, USA LIGHT-
from £0.47
from £0.47
This part replaces part number 13028774
# 020
MPN: 266645
STUD BOLT
-Applicable for USA, CDN, USA LIGHT-
from £9.65
from £9.65
# 021
MPN: 12638524
WASHER
-Applicable for USA, CDN, USA LIGHT-
from £0.47
from £0.47
This part replaces part number 12638501 - and 2 more. Click to view details
# 022
MPN: 12601374
WASHER
-Applicable for USA, CDN, USA LIGHT-
from £0.47
from £0.47
This part replaces part number 10615474 - and 6 more. Click to view details
# 023
MPN: 10730514
WASHER
-Applicable for USA, CDN, USA LIGHT-
from £0.47
from £0.47
This part replaces part number 10730521
# 024
MPN: 12646724
WASHER
-No longer supplied-
from £0.47
from £0.47
This part replaces part number 12601571 - and 3 more. Click to view details
# 025
MPN: 287405
SHIM
from £3.17
from £3.17
# 026
MPN: 260051
WASHER
-No longer supplied-
from £4.37
from £4.37
# 027
MPN: 263679
FUEL LEVEL PLUG
from £57.52
from £57.52
