0025 - GEARBOX REPAIR KIT

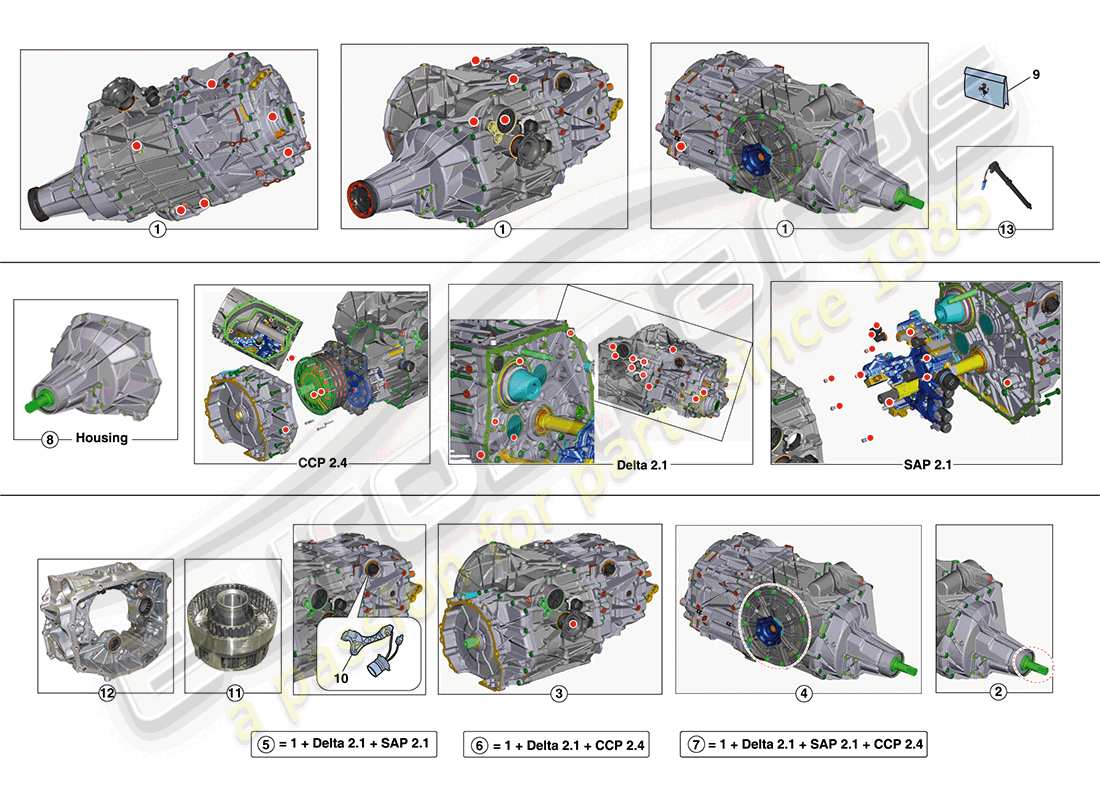

Ferrari FF (Europe) GEARBOX REPAIR KIT Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 70004184
LEVEL 1.1 GEARBOX OVERHAUL SERVICE KIT
-See technical note No. 2076-
from £214.42
from £214.42
# 002
MPN: 70004192
LEVEL 1.3 GEARBOX OVERHAUL SERVICE KIT
-See technical note No. 2076-
from £1,150.56
from £1,150.56
# 003
MPN: 70004185
LEVEL 1.4 GEARBOX OVERHAUL SERVICE KIT
-See technical note No. 2076-
from £622.86
from £622.86
# 004
MPN: 70004190
LEVEL 1.6 GEARBOX OVERHAUL SERVICE KIT
-See technical note No. 2076-
from £458.78
from £458.78
# 005
MPN: 70004180
SAP1 KIT
-See technical note No. 2330-
from £3,394.34
from £3,394.34
# 006
MPN: 70004198
CCP4 KIT
-See technical note No. 2330-
from £15,946.00
from £15,946.00
# 007
MPN: 70004197
SC4 KIT
-See technical note No. 2330-
from £10,690.08
from £10,690.08
# 008
MPN: 70004199
SL2 HOUSING KIT
-See technical note No. 2330-
from £904.45
from £904.45
# 009
MPN: 70002680
SCREW
-M8 X 38- -See technical note No. 2330-
from £2.25
from £2.25
This part replaces part number 70003093
# 010
MPN: 70004182
GEARBOX SPEED SENSOR KIT LEVEL 3
-See technical note No. 2153-
from £776.63
from £776.63
# 011
MPN: 70004092
DIFFERENTIAL KIT
-See technical note No. 2396-
from £2,049.99
from £2,049.99
This part replaces part number 70004254
# 012
MPN: 70004257
GEARBOX KIT
-See technical note No. 2399-
from £3,537.51
from £3,537.51
# 013
MPN: 70004255
TEMPERATURE SENSOR KIT
-See technical note No. 2406-
from £721.54
from £721.54
