0124 - DASHBOARD

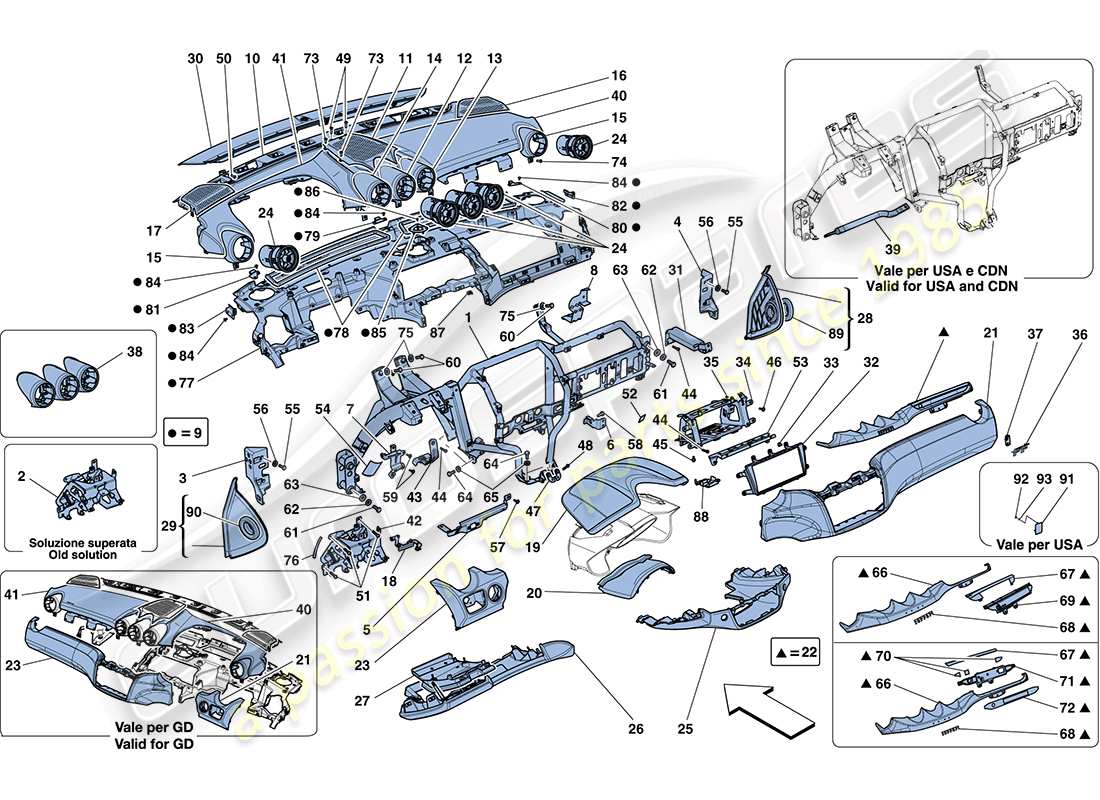

Ferrari FF (Europe) DASHBOARD Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 83144500
DASHBOARD CROSS MEMBER
-Not for Geneva version- -Not for GD-
from £361.73
from £361.73
# 001
MPN: 83920300
DASHBOARD CROSS MEMBER
-Not for Geneva version- -Applicable for GD-
from £380.34
from £380.34
# 001
MPN: 86472800
DASHBOARD CROSS MEMBER
-Applicable for Geneva version- -Not for GD-
from £657.69
from £657.69
# 001
MPN: 86518400
DASHBOARD CROSS MEMBER
-Applicable for Geneva version- -Applicable for GD-
from £691.52
from £691.52
# 002
MPN: 83723100
BODY COMPUTER BRACKET
-Replaced by 82403200 ref. 42, 83853400 ref. 43 and 64460500 ref. 44- -Not for USA, CDN, GD, USA LIGHT- -No longer supplied-
# 002
MPN: 84070700
BODY COMPUTER BRACKET
-Replaced by 82976200 ref. 42, 83853400 ref. 43 and 64460500 ref. 44- -Applicable for USA, CDN, USA LIGHT- -No longer supplied-
from £272.63
from £272.63
# 003
MPN: 80519100
LH LATERAL BODYSHELL BRACKET
from £24.90
from £24.90
# 004
MPN: 80637100
RH LATERAL BODYSHELL BRACKET
from £24.90
from £24.90
# 005
MPN: 83853600
LOWER UNDER DRIVER SEAT BRACKET
-Not for USA, CDN, GD, USA LIGHT-
from £100.21
from £100.21
# 005
MPN: 83921000
LOWER UNDER DRIVER SEAT BRACKET
-Applicable for GD-
from £58.00
from £58.00
# 005
MPN: 84070800
LOWER UNDER DRIVER SEAT BRACKET
-Applicable for USA, CDN, USA LIGHT-
from £111.37
from £111.37
# 006
MPN: 82190000
RH AC UNIT BRACKET
-Applicable until depletion-
Supersession
Supersession
# 006
MPN: 82190100
LH AC UNIT BRACKET
-Applicable until depletion-
Supersession
Supersession
# 006
MPN: 83853800
RH AC UNIT BRACKET
-Applicable after depletion of 82190000-
from £15.43
from £15.43
This part replaces part number 82190000
# 006
MPN: 83854000
LH AC UNIT BRACKET
-Applicable after depletion of 82190100-
from £15.43
from £15.43
This part replaces part number 82190100
# 007
MPN: 83854100
LH DASHBOARD BRACKET
-Not for USA, CDN, GD, USA LIGHT-
from £29.17
from £29.17
# 007
MPN: 83921200
RH DASHBOARD BRACKET
-Applicable for GD-
from £102.90
from £102.90
# 007
MPN: 84071000
LH DASHBOARD BRACKET
-Applicable for USA, CDN, USA LIGHT-
from £55.67
from £55.67
# 008
MPN: 82718500
FIREWALL BRACKET
-Not for GD-
from £23.07
from £23.07
# 008
MPN: 83921400
FIREWALL BRACKET
-Applicable for GD-
from £23.53
from £23.53
# 009
MPN: 81993900
WINDSCREEN DEFROSTER
-Not for GD- -No longer supplied-
from £780.92
from £780.92
# 009
MPN: 83925200
WINDSCREEN DEFROSTER
-Applicable for GD- -No longer supplied-
from £781.10
from £781.10
# 010
MPN: 836808..
UPPER PART OF DASHBOARD
-Leather-
Supersession
Supersession
# 011
MPN: 830478..
TWEETER GRILLE
-See colour grid for associating leather colour with paintwork colour-
Supersession
Supersession
# 012
MPN: 836766..
AIR VENT TUBE
-Leather-
Supersession
Supersession
# 013
MPN: 836768..
RH AIR VENT TUBE
-Leather-
Supersession
Supersession
# 014
MPN: 836770..
LH AIR VENT TUBE
-Leather-
Supersession
Supersession
# 015
MPN: 836772..
LATERAL AIR VENT TUBE
-Leather- -Not for GD-
Supersession
Supersession
# 015
MPN: 839281..
LATERAL AIR VENT TUBE
-Leather- -Applicable for GD-
Supersession
Supersession
# 015
MPN: 83935900
LATERAL AIR VENT TUBE
-Carbon- -Not for GD-
from £714.54
from £714.54
# 015
MPN: 84179000
LATERAL AIR VENT TUBE
-Carbon- -Applicable for GD-
from £1,221.21
from £1,221.21
# 015
MPN: 84758700
LATERAL AIR VENT TUBE
-Alutex- -Not for GD-
from £1,514.47
from £1,514.47
# 015
MPN: 84760100
LATERAL AIR VENT TUBE
-Alutex- -Applicable for GD-
from £1,514.47
from £1,514.47
# 016
MPN: 830474..
RH SPEAKER GRILLE
-See colour grid for associating leather colour with paintwork colour-
Supersession
Supersession
# 017
MPN: 830476..
LH SPEAKER GRILLE
-See colour grid for associating leather colour with paintwork colour-
Supersession
Supersession
# 018
MPN: 82314100
OBD BRACKET
-No longer supplied- -Replaced by 83854400-
Supersession
Supersession
# 018
MPN: 83854400
OBD BRACKET
from £40.40
from £40.40
This part replaces part number 82314100
# 019
MPN: 836810..
BINNACLE TRIM
-Leather- -STC1- -STC2- -Not for GD-
Supersession
Supersession
# 019
MPN: 836810..
BINNACLE TRIM
-Leather- -STC1- -STC2- -Applicable for Geneva version- -Not for J, GD-
Supersession
Supersession
# 019
MPN: 839287..
BINNACLE TRIM
-Leather- -STC1- -STC2- -Applicable for GD-
Supersession
Supersession
# 019
MPN: 865635..
BINNACLE TRIM
-Leather- -STC1- -STC2- -Applicable for Geneva version- -LHD version- -Applicable for J-
# 019
MPN: 869433..
BINNACLE TRIM
-Leather- -STC1- -STC2- -Applicable for Geneva version- -RHD version- -Applicable for J-
# 020
MPN: 823682..
BELLOW
-Leather-
Supersession
Supersession
# 021
MPN: 838003..
UPPER PART OF RH SIDE OF DASHBOARD
-Leather- -Not for Geneva version- -PIP3- -STC1- -STC2- -Not for GD-
Supersession
Supersession
# 021
MPN: 839306..
UPPER PART OF RH SIDE OF DASHBOARD
-Leather- -PIP3- -STC1- -STC2- -Applicable for GD-
Supersession
Supersession
# 021
MPN: 863560..
UPPER PART OF RH SIDE OF DASHBOARD
-Leather- -Applicable for Geneva version- -PIP3- -STC1- -STC2- -Not for GD-
# 021
MPN: 865193..
UPPER PART OF RH SIDE OF DASHBOARD
-Leather- -Applicable for Geneva version- -PIP3- -STC1- -STC2- -Applicable for USA-
Supersession
Supersession
# 022
MPN: 70002380

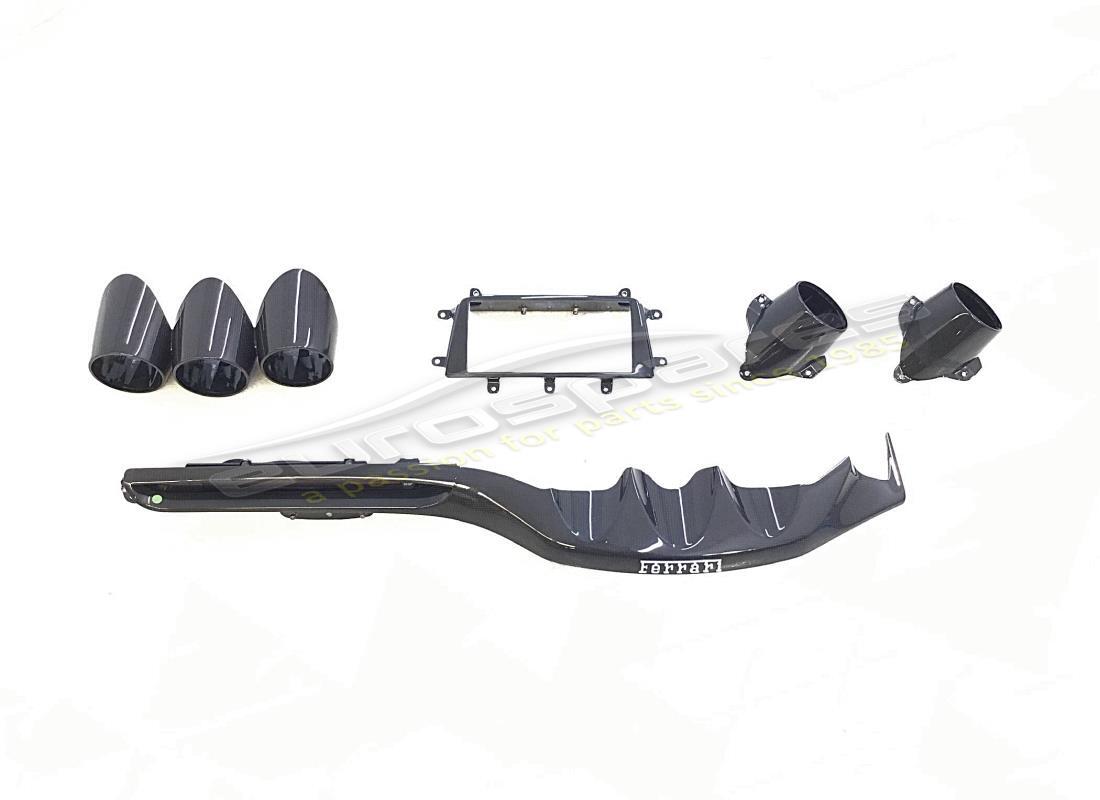

FF RHD CARBON DASHBOARD KIT
(included p/n : 83927100-83927600-84179000-84251400)
from £6,805.43
from £6,805.43
# 022
MPN: 83800800
'Ferrari' CENTRE INSERT
-Version with passenger display- -DAPN- -Not for Geneva version- -Not for GD-
from £2,425.12
from £2,425.12
# 022
MPN: 83804000
'Ferrari' CENTRE INSERT
-DAPN- -Standard- -Version with iPhone compatible dash- -Not for Geneva version- -Not for USA, CDN, GD, USA LIGHT-
from £582.77
from £582.77
# 022
MPN: 83929700
'Ferrari' CENTRE INSERT
-Version with passenger display- -DAPN- -Not for Geneva version- -Applicable for GD-
from £2,626.25
from £2,626.25
# 022
MPN: 83930000
'Ferrari' CENTRE INSERT
-DAPN- -Standard- -Version with iPhone compatible dash- -Not for Geneva version- -Applicable for GD-
from £887.60
from £887.60
# 022
MPN: 84059700
'Ferrari' CENTRE INSERT
-Version with iPhone compatible dash- -Carbon- -Not for USA, CDN, GD, USA LIGHT- -Applicable until depletion-
Supersession
Supersession
# 022
MPN: 84059800
'Ferrari' CENTRE INSERT
-Version with passenger display- -Carbon- -Not for Geneva version- -Not for GD-
from £4,109.70
from £4,109.70
# 022
MPN: 84250300
'Ferrari' CENTRE INSERT
-Version with iPhone compatible dash- -Carbon- -Applicable for GD- -Applicable until depletion-
Supersession
Supersession
# 022
MPN: 84251400
'Ferrari' CENTRE INSERT
-Version with passenger display- -Carbon- -Not for Geneva version- -Applicable for GD-
from £3,327.18
from £3,327.18
# 022
MPN: 84429400
'Ferrari' CENTRE INSERT
-DAPN- -Standard- -Version with iPhone compatible dash- -Not for Geneva version- -Applicable for USA, CDN, USA LIGHT-
from £866.88
from £866.88
# 022
MPN: 84471800
'Ferrari' CENTRE INSERT
-Version with iPhone compatible dash- -Carbon- -Not for Geneva version- -Applicable for USA, CDN, USA LIGHT-
from £3,729.35
from £3,729.35
# 022
MPN: 84759400
'Ferrari' CENTRE INSERT
-Version with iPhone compatible dash- -Alutex- -Not for Geneva version- -Applicable for USA, CDN, USA LIGHT-
from £3,604.45
from £3,604.45
# 022
MPN: 84770300
'Ferrari' CENTRE INSERT
-Version with passenger display- -Alutex- -Not for Geneva version- -Not for GD-
from £4,532.03
from £4,532.03
# 022
MPN: 84770700
'Ferrari' CENTRE INSERT
-Version with iPhone compatible dash- -Alutex- -Not for Geneva version- -Not for USA, CDN, GD, USA LIGHT-
from £3,604.45
from £3,604.45
# 022
MPN: 84772400
'Ferrari' CENTRE INSERT
-Version with passenger display- -Alutex- -Not for Geneva version- -Applicable for GD-
from £3,604.45
from £3,604.45
# 022
MPN: 84772600
'Ferrari' CENTRE INSERT
-Version with iPhone compatible dash- -Alutex- -Not for Geneva version- -Applicable for GD-
from £4,532.03
from £4,532.03
# 022
MPN: 85546300
'Ferrari' CENTRE INSERT
-Version with iPhone compatible dash- -Carbon- -Not for Geneva version- -Not for USA, CDN, GD, USA LIGHT- -Applicable after depletion of 84059700-
from £4,024.62
from £4,024.62
This part replaces part number 84059700
# 022
MPN: 85547300
'Ferrari' CENTRE INSERT
-Version with iPhone compatible dash- -Carbon- -Not for Geneva version- -Applicable for GD- -Applicable after depletion of 84250300-
from £2,986.53
from £2,986.53
This part replaces part number 84250300
# 022
MPN: 86424200
'Ferrari' CENTRE INSERT
-Version with passenger display- -Alutex- -Applicable for Geneva version- -Not for GD-
# 022
MPN: 86424700
'Ferrari' CENTRE INSERT
-Version with passenger display- -DAPN- -Applicable for Geneva version- -Not for GD-
from £2,425.12
from £2,425.12
# 022
MPN: 86425600
'Ferrari' CENTRE INSERT
-Version with iPhone compatible dash- -Carbon- -Applicable for Geneva version- -Not for USA, CDN, GD, USA LIGHT-
from £4,025.77
from £4,025.77
# 022
MPN: 86426000
'Ferrari' CENTRE INSERT
-Version with iPhone compatible dash- -Alutex- -Applicable for Geneva version- -Not for USA, CDN, GD, USA LIGHT-
# 022
MPN: 86426400
'Ferrari' CENTRE INSERT
-DAPN- -Standard- -Version with iPhone compatible dash- -Applicable for Geneva version- -Not for USA, CDN, GD, USA LIGHT-
from £582.77
from £582.77
# 022
MPN: 86427200
'Ferrari' CENTRE INSERT
-Version with passenger display- -Carbon- -Applicable for Geneva version- -Not for GD-
from £4,109.70
from £4,109.70
# 022
MPN: 86486400
'Ferrari' CENTRE INSERT
-Version with passenger display- -Carbon- -Applicable for Geneva version- -Applicable for GD-
from £3,327.18
from £3,327.18
# 022
MPN: 86486800
'Ferrari' CENTRE INSERT
-Version with passenger display- -Alutex- -Applicable for Geneva version- -Applicable for GD-
# 022
MPN: 86487200
'Ferrari' CENTRE INSERT
-Version with passenger display- -DAPN- -Applicable for Geneva version- -Applicable for GD-
from £2,626.25
from £2,626.25
# 022
MPN: 86487700
'Ferrari' CENTRE INSERT
-DAPN- -Standard- -Version with iPhone compatible dash- -Applicable for Geneva version- -Applicable for GD-
from £887.60
from £887.60
# 022
MPN: 86488900
'Ferrari' CENTRE INSERT
-Version with iPhone compatible dash- -Carbon- -Applicable for Geneva version- -Applicable for GD-
from £4,095.29
from £4,095.29
# 022
MPN: 86489400
'Ferrari' CENTRE INSERT
-Version with iPhone compatible dash- -Alutex- -Applicable for Geneva version- -Applicable for GD-
# 022
MPN: 86521400
'Ferrari' CENTRE INSERT
-Version with iPhone compatible dash- -Carbon- -Applicable for Geneva version- -Applicable for USA, CDN, USA LIGHT-
# 022
MPN: 86522000
'Ferrari' CENTRE INSERT
-Version with iPhone compatible dash- -Alutex- -Applicable for Geneva version- -Applicable for USA, CDN, USA LIGHT-
from £3,604.45
from £3,604.45
# 022
MPN: 86522500
'Ferrari' CENTRE INSERT
-DAPN- -Standard- -Version with iPhone compatible dash- -Applicable for Geneva version- -Applicable for USA, CDN, USA LIGHT-
from £397.27
from £397.27
# 023
MPN: 819963..
UPPER PART OF LH SIDE OF DASHBOARD
-Leather- -PIP3- -STC1- -STC2- -Not for GD-
Supersession
Supersession
# 023
MPN: 839293..
UPPER PART OF LH SIDE OF DASHBOARD.
-Leather- -Not for Geneva version- -PIP3- -STC1- -STC2- -Applicable for GD-
Supersession
Supersession
# 023
MPN: 864855..
UPPER PART OF LH SIDE OF DASHBOARD.
-Leather- -Applicable for Geneva version- -PIP3- -STC1- -STC2- -Applicable for GD-
# 024
MPN: 83345300
AIR VENT
from £65.32
from £65.32
# 025
MPN: 834249..
CENTRAL LOWER DASHBOARD TRIM
-Leather- -Version with front camera with dual view- -Not for Geneva version- -STC1- -STC2-
Supersession
Supersession
# 025
MPN: 834272..
CENTRAL LOWER DASHBOARD TRIM
-Leather- -STC1- -STC2- -Not for GD- -Applicable up to Ass. No. 108015-
Supersession
Supersession
# 025
MPN: 843705..
CENTRAL LOWER DASHBOARD TRIM
-Leather- -STC1- -STC2- -Applicable for GD- -Applicable up to Ass. No. 108015-
# 025
MPN: 864265..
CENTRAL LOWER DASHBOARD TRIM
-Leather- -Applicable for Geneva version- -STC1- -STC2-
Supersession
Supersession
# 025
MPN: 864999..
CENTRAL LOWER DASHBOARD TRIM
-Leather- -Standard- -Applicable for Geneva version- -STC1- -STC2- -Applicable for GD- -No longer supplied- -Replaced by 864265..-
# 025
MPN: 865003..
CENTRAL LOWER DASHBOARD TRIM
-Leather- -Standard- -Applicable for Geneva version- -STC1- -STC2- -Not for GD- -No longer supplied- -Replaced by 864265..-
# 026
MPN: 819958..
DRIVER SIDE UNDERDASHBOARD TRIM
-Leather- -STC1- -STC2- -Not for GD-
Supersession
Supersession
# 026
MPN: 833455..
DRIVER SIDE UNDERDASHBOARD TRIM
-Leather- -Version with shock absorber with lifter- -STC1- -STC2- -Not for GD-
Supersession
Supersession
# 026
MPN: 839370..
DRIVER SIDE UNDERDASHBOARD TRIM
-Leather- -Version with shock absorber with lifter- -STC1- -STC2- -Applicable for GD-
# 026
MPN: 839376..
DRIVER SIDE UNDERDASHBOARD TRIM
-Leather- -STC1- -STC2- -Applicable for GD-
# 027
MPN: 819955..
FUSE BOX COVER
-Leather- -Not for GD-
Supersession
Supersession
# 027
MPN: 839383..
FUSE BOX COVER
-Leather- -Applicable for GD-
Supersession
Supersession
# 028
MPN: 819953..
RH DASHBOARD END PANEL
-Leather-
Supersession
Supersession
# 029
MPN: 819951..
LH DASHBOARD END PANEL
-Leather-
Supersession
Supersession
# 030
MPN: 81993400
DEFROSTER CONTROL SURROUND
-Not for J-
from £133.61
from £133.61
# 030
MPN: 84328700
DEFROSTER CONTROL SURROUND
-Not for Geneva version- -Applicable for J-
from £170.27
from £170.27
# 030
MPN: 86564500
DEFROSTER CONTROL SURROUND
-Applicable for Geneva version- -Applicable for J-
from £183.75
from £183.75
# 031
MPN: 83853300
COMPL. RH LATERAL GLOVE COMPARTMENT BRACKET
-Not for GD-
from £38.09
from £38.09
# 031
MPN: 83920400
COMPL. LH LATERAL GLOVE COMPARTMENT BRACKET
-Applicable for GD-
from £57.17
from £57.17
# 032
MPN: 83800700

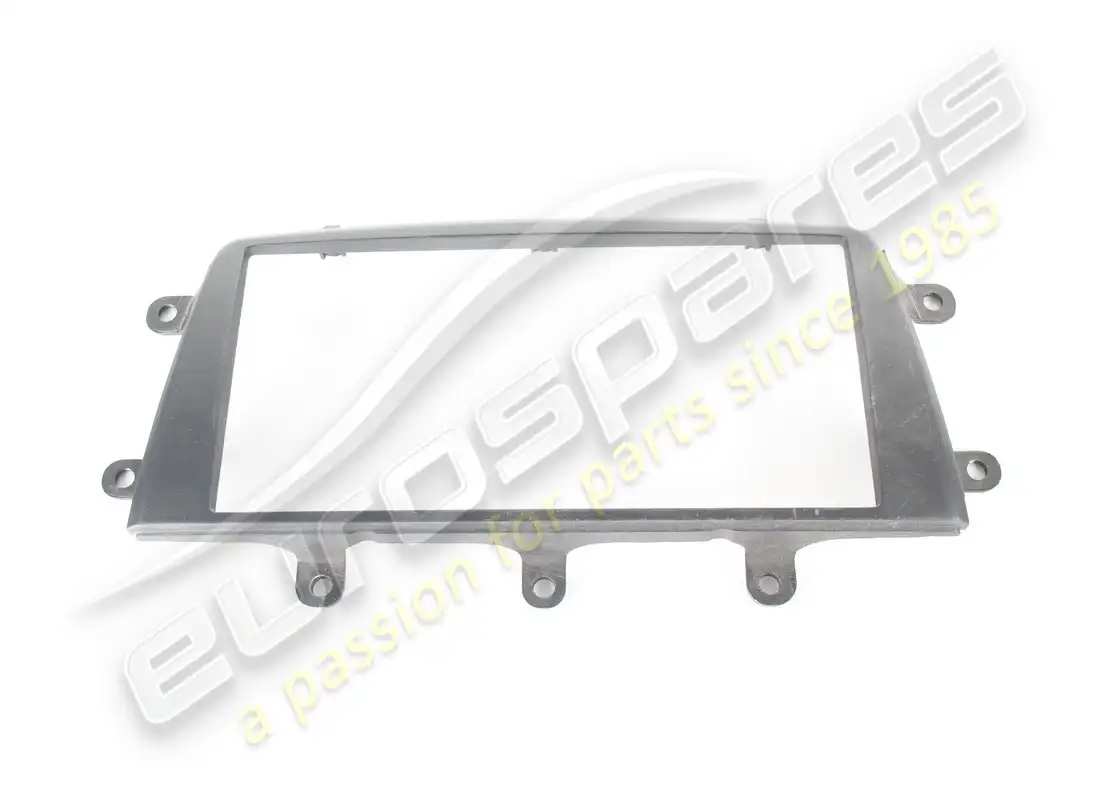

BECKER RADIO SURROUND
-Not for Geneva version-
from £229.28
from £229.28
# 032
MPN: 83927600
BECKER RADIO SURROUND
-Carbon- -Not for Geneva version-
from £2,494.39
from £2,494.39
# 032
MPN: 84758400
BECKER RADIO BEZEL
-Alutex- -Not for Geneva version-
from £2,491.47
from £2,491.47
# 032
MPN: 86345700
BECKER RADIO BEZEL
-Applicable for Geneva version-
from £416.88
from £416.88
# 032
MPN: 86425300
BECKER RADIO BEZEL
-Carbon- -Applicable for Geneva version-
from £1,919.04
from £1,919.04
# 032
MPN: 86426900
BECKER RADIO BEZEL
-Alutex- -Applicable for Geneva version-
from £2,486.97
from £2,486.97
# 033
MPN: 231621
SCREW
-M6 X 30-
from £0.47
from £0.47
This part replaces part number 216568
# 033
MPN: 64460500
SCREW
-M5 X 10- -No longer supplied- -Replaced by 231621-
from £0.61
from £0.61
# 034
MPN: 83855300
BECKER RADIO BRACKET
-Not for Geneva version-
from £92.97
from £92.97
# 034
MPN: 86427100
BECKER RADIO BRACKET
-Applicable for Geneva version-
from £159.60
from £159.60
# 035
MPN: 83996600
SCREW
from £0.47
from £0.47
# 036
MPN: 84235800
FF LOGO
from £66.68
from £66.68
# 037
MPN: 83890900
BRACKET
from £50.50
from £50.50
# 038
MPN: 83927100

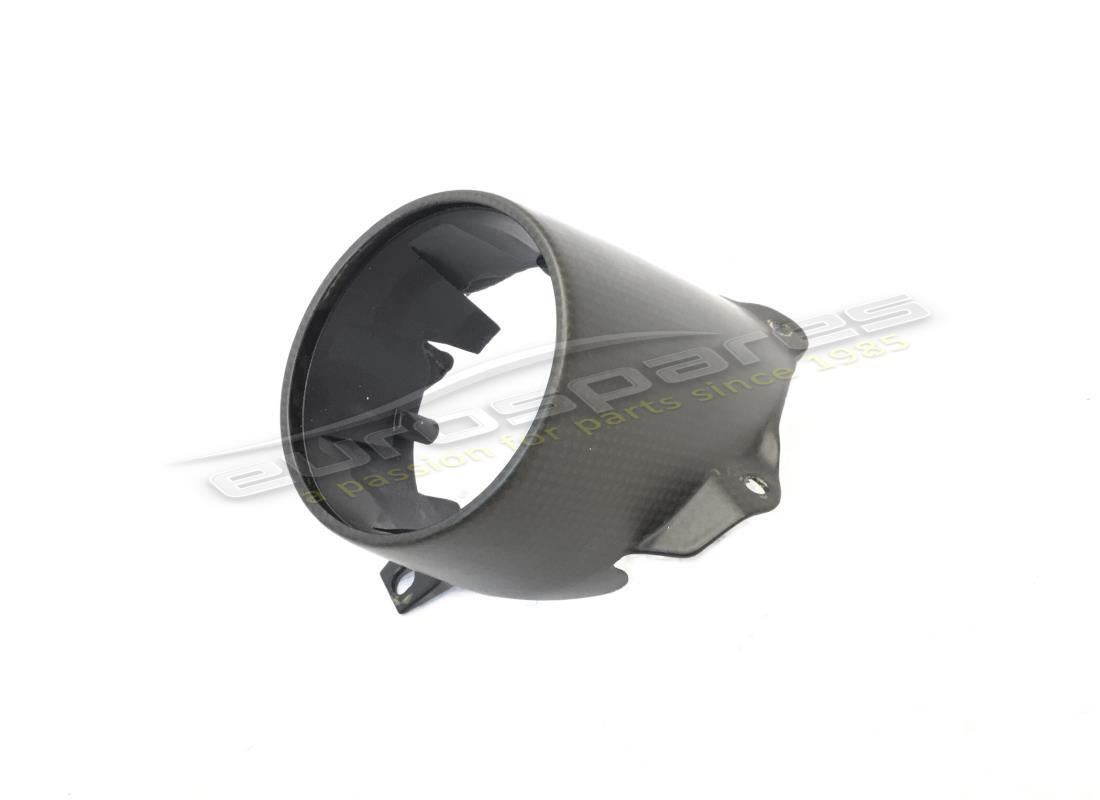

DASHBOARD AIR VENT TUBE
-Carbon-
from £1,502.57
from £1,502.57
# 038
MPN: 84758500
DASHBOARD AIR VENT TUBE
-Alutex-
from £1,414.05
from £1,414.05
# 039
MPN: 82976500
KNEE PIPE UNDER DRIVER
-Applicable for USA, CDN, USA LIGHT-
from £26.97
from £26.97
# 040
MPN: 837234..
UPPER PART OF RH SIDE OF DASHBOARD
-Leather- -STC1- -STC2- -Not for GD-
Supersession
Supersession
# 040
MPN: 839263..
UPPER PART OF RH SIDE OF DASHBOARD
-Leather- -STC1- -STC2- -Applicable for GD-
Supersession
Supersession
# 041
MPN: 837235..
UPPER PART OF LH SIDE OF DASHBOARD.
-Leather- -STC1- -STC2- -Not for GD-
Supersession
Supersession
# 041
MPN: 839265..
UPPER PART OF LH SIDE OF DASHBOARD.
-Leather- -STC1- -STC2- -Applicable for GD-
Supersession
Supersession
# 042
MPN: 82403200
BODY COMPUTER BRACKET
-Not for USA, CDN, GD, USA LIGHT-
from £73.08
from £73.08
# 042
MPN: 82976200
BODY COMPUTER BRACKET
-Applicable for USA, CDN, USA LIGHT-
from £104.29
from £104.29
# 042
MPN: 83920800
BODY COMPUTER BRACKET
-Applicable for GD-
from £87.38
from £87.38
# 043
MPN: 83853400
LH DASHBOARD SUBSTRUCTURE BRACKET
-Not for GD-
from £13.96
from £13.96
# 044
MPN: 64460500
SCREW
-M5 X 10- -No longer supplied- -Replaced by 85692000-
from £0.61
from £0.61
# 044
MPN: 85692000
SCREW
-M5 X 10-
from £0.52
from £0.52
# 045
MPN: 169815
SCREW
-M5 X 20- -No longer supplied- -Replaced by 85692300-
from £1.03
from £1.03
This part replaces part number 270024
# 045
MPN: 85692300
SCREW
-M5 X 20-
from £0.47
from £0.47
This part replaces part number 83914200
# 046
MPN: 169814
SCREW
-M5 X 14- -No longer supplied- -Replaced by 85833700-
from £0.71
from £0.71
This part replaces part number 13288119 - and 1 more. Click to view details
# 046
MPN: 85833700
SCREW
-M5 X 14-
from £0.47
from £0.47
# 047
MPN: 83419500
SHIM
from £3.62
from £3.62
# 048
MPN: 64214100
SCREW
from £0.47
from £0.47
# 049
MPN: 64460500
SCREW
-M5 X 10- -No longer supplied- -Replaced by 85692000-
from £0.61
from £0.61
# 049
MPN: 85692000
SCREW
-M5 X 10-
from £0.53
from £0.53
# 050
MPN: 65212000
SCREW
-M5 X 8-
from £0.56
from £0.56
# 051
MPN: 65366700
SCREW
-M5 X 12- -No longer supplied- -Replaced by 85692200-
from £0.50
from £0.50
# 051
MPN: 85692200
SCREW
-M5 X 12-
from £0.47
from £0.47
# 052
MPN: 159147
PLUG
-100 X 50 X 4 mm- -Applicable for GD-
from £0.47
from £0.47
# 053
MPN: 83855200
BRACKET
-Not for Geneva version-
from £40.50
from £40.50
# 053
MPN: 86427000
BRACKET
-Applicable for Geneva version-
from £24.50
from £24.50
# 054
MPN: 255515
VIBRATION DAMPER
from £1.26
from £1.26
This part replaces part number 84069800
# 054
MPN: 84069800
BODY BRACKET CONNECTION
-No longer supplied- -Replaced by 255515-
Supersession
Supersession
# 055
MPN: 16043634
SCREW
-M8 X 35-
from £0.47
from £0.47
# 056
MPN: 219344
WASHER
Supersession
Supersession
# 057
MPN: 169814
SCREW
-M5 X 14- -No longer supplied- -Replaced by 65366700-
from £0.71
from £0.71
This part replaces part number 13288119 - and 1 more. Click to view details
# 057
MPN: 65366700
SCREW
-M5 X 12- -No longer supplied- -Replaced by 85692200-
from £0.50
from £0.50
# 057
MPN: 85692200
SCREW
-M5 X 12-
from £0.47
from £0.47
# 058
MPN: 16286024
SCREW
-M6 X 16-
from £0.47
from £0.47
# 059
MPN: 169814
SCREW
-M5 X 14- -No longer supplied- -Replaced by 65366700-
from £0.71
from £0.71
This part replaces part number 13288119 - and 1 more. Click to view details
# 059
MPN: 65366700
SCREW
-M5 X 12- -No longer supplied- -Replaced by 85692200-
from £0.50
from £0.50
# 059
MPN: 85692200
SCREW
-M5 X 12-
from £0.47
from £0.47
# 060
MPN: 16286524
SCREW
-M6 X 40-
from £0.47
from £0.47
# 061
MPN: 14308574
SCREW
from £2.09
from £2.09
This part replaces part number 14308524 - and 2 more. Click to view details
# 062
MPN: 12646824
WASHER
from £0.51
from £0.51
# 063
MPN: 12601474
WASHER
from £0.53
from £0.53
This part replaces part number 12601471 which we have in stock - and 2 more. Click to view details
# 064
MPN: 16287624
SCREW
from £1.37
from £1.37
This part replaces part number 16287421
# 065
MPN: 10519624
WASHER
-No longer supplied- -Replaced by 12646724-
from £0.47
from £0.47
This part replaces part number 10519601 - and 3 more. Click to view details
# 065
MPN: 12646724
WASHER
from £0.47
from £0.47
This part replaces part number 12601571 - and 3 more. Click to view details
# 066
MPN: 83800900
CENTRE LIP
-Version with passenger display- -DAPN- -Not for Geneva version- -Not for GD-
from £208.95
from £208.95
# 066
MPN: 83804100
CENTRE LIP
-Matte aluminium- -DAPN- -Standard- -Version with iPhone compatible dash- -Not for Geneva version- -Not for GD-
from £371.20
from £371.20
# 066
MPN: 83834400
CENTRE LIP
-Matte aluminium- -DAPN- -Standard- -Version with iPhone compatible dash- -Not for Geneva version- -Applicable for GD-
from £482.56
from £482.56
# 066
MPN: 83930100
CENTRE LIP
-Version with passenger display- -DAPN- -Not for Geneva version- -Applicable for GD-
from £482.56
from £482.56
# 066
MPN: 83934000
CENTRE LIP
-Carbon- -Version with passenger display- -DAPN- -Not for Geneva version- -Not for GD-
from £1,258.09
from £1,258.09
# 066
MPN: 83935000
CENTRE LIP
-Carbon- -Version with iPhone compatible dash- -Not for Geneva version- -Not for USA, CDN, GD, USA LIGHT-
from £2,287.44
from £2,287.44
# 066
MPN: 84178200
CENTRE LIP
-Carbon- -Version with passenger display- -DAPN- -Not for Geneva version- -Applicable for GD-
from £2,287.44
from £2,287.44
# 066
MPN: 84178500
CENTRE LIP
-Carbon- -Version with iPhone compatible dash- -Not for Geneva version- -Applicable for GD-
from £2,287.44
from £2,287.44
# 066
MPN: 84470600
CENTRE LIP
-Carbon- -Version with iPhone compatible dash- -Not for Geneva version- -Applicable for USA, CDN, USA LIGHT-
from £2,287.44
from £2,287.44
# 066
MPN: 84759000
CENTRE LIP
-Alutex- -Version with passenger display- -DAPN- -Not for Geneva version- -Not for GD-
from £3,604.45
from £3,604.45
# 066
MPN: 84759200
CENTRE LIP
-Alutex- -Version with iPhone compatible dash- -Not for Geneva version- -Not for USA, CDN, GD, USA LIGHT-
from £3,604.45
from £3,604.45
# 066
MPN: 84759600
CENTRE LIP
-Alutex- -Version with passenger display- -DAPN- -Not for Geneva version- -Applicable for GD-
from £3,604.45
from £3,604.45
# 066
MPN: 84759800
CENTRE LIP
-Alutex- -Version with iPhone compatible dash- -Not for Geneva version- -Applicable for GD-
from £3,604.45
from £3,604.45
# 066
MPN: 84774600
CENTRE LIP
-Alutex- -Version with iPhone compatible dash- -Not for Geneva version- -Applicable for USA, CDN, USA LIGHT-
from £3,604.45
from £3,604.45
# 066
MPN: 86347300
CENTRE LIP
-Matte aluminium- -DAPN- -Standard- -Version with iPhone compatible dash- -Applicable for Geneva version- -Not for GD-
from £371.20
from £371.20
# 066
MPN: 86423900
CENTRE LIP
-Carbon- -Version with passenger display- -DAPN- -Applicable for Geneva version- -Not for GD-
# 066
MPN: 86424300
CENTRE LIP
-Alutex- -Version with passenger display- -DAPN- -Applicable for Geneva version- -Not for GD-
# 066
MPN: 86425000
CENTRE LIP
-Version with passenger display- -DAPN- -Applicable for Geneva version- -Not for GD-
# 066
MPN: 86425700
CENTRE LIP
-Carbon- -Version with iPhone compatible dash- -Applicable for Geneva version- -Not for USA, CDN, GD, USA LIGHT-
# 066
MPN: 86426200
CENTRE LIP
-Alutex- -Version with iPhone compatible dash- -Applicable for Geneva version- -Not for USA, CDN, GD, USA LIGHT-
# 066
MPN: 86486500
CENTRE LIP
-Carbon- -Version with passenger display- -DAPN- -Applicable for Geneva version- -Applicable for GD-
from £2,287.44
from £2,287.44
# 066
MPN: 86486900
CENTRE LIP
-Alutex- -Version with passenger display- -DAPN- -Applicable for Geneva version- -Applicable for GD-
# 066
MPN: 86487300
CENTRE LIP
-Version with passenger display- -DAPN- -Applicable for Geneva version- -Applicable for GD-
# 066
MPN: 86487800
CENTRE LIP
-Matte aluminium- -DAPN- -Standard- -Version with iPhone compatible dash- -Applicable for Geneva version- -Applicable for GD-
from £411.98
from £411.98
# 066
MPN: 86489000
CENTRE LIP
-Carbon- -Version with iPhone compatible dash- -Applicable for Geneva version- -Applicable for GD-
# 066
MPN: 86489500
CENTRE LIP
-Alutex- -Version with iPhone compatible dash- -Applicable for Geneva version- -Applicable for GD-
# 066
MPN: 86521500
CENTRE LIP
-Carbon- -Version with iPhone compatible dash- -Applicable for Geneva version- -Applicable for USA, CDN, USA LIGHT-
from £2,287.44
from £2,287.44
# 066
MPN: 86522100
CENTRE LIP
-Alutex- -Version with iPhone compatible dash- -Applicable for Geneva version- -Applicable for USA, CDN, USA LIGHT-
from £3,604.45
from £3,604.45
# 067
MPN: 83801000
CENTRE LIP END PIECE
-Version with passenger display- -Not for GD-
from £81.66
from £81.66
# 067
MPN: 83804300
CENTRE LIP END PIECE
-Version with iPhone compatible dash- -Not for USA, CDN, GD, USA LIGHT-
from £128.72
from £128.72
# 067
MPN: 83930200
CENTRE LIP END PIECE
-Version with passenger display- -Applicable for GD-
from £207.87
from £207.87
# 067
MPN: 83931100
CENTRE LIP END PIECE
-Version with iPhone compatible dash- -Applicable for GD-
from £1,234.79
from £1,234.79
# 067
MPN: 84428500
CENTRE LIP END PIECE
-Version with iPhone compatible dash- -Applicable for USA, CDN, USA LIGHT-
from £183.37
from £183.37
# 068
MPN: 69869100
Badge
from £66.82
from £66.82
# 069
MPN: 83944700
I-PHONE HOLDER
-Soft black paint- -Standard- -Version with iPhone compatible dash- -Not for Geneva version- -Not for USA, CDN, GD, USA LIGHT-
from £259.94
from £259.94
# 069
MPN: 83944800
I-PHONE HOLDER
-Soft black paint- -Standard- -Version with iPhone compatible dash- -Not for Geneva version- -Applicable for GD-
from £311.80
from £311.80
# 069
MPN: 84059600
I-PHONE HOLDER
-Carbon- -Version with iPhone compatible dash- -Not for USA, CDN, GD, USA LIGHT- -Applicable until depletion-
Supersession
Supersession
# 069
MPN: 84250900
I-PHONE HOLDER
-Carbon- -Version with iPhone compatible dash- -Applicable for GD- -Applicable until depletion-
Supersession
Supersession
# 069
MPN: 84428600
I-PHONE HOLDER
-Soft black paint- -Standard- -Version with iPhone compatible dash- -Not for Geneva version- -Applicable for USA, CDN, USA LIGHT-
from £334.50
from £334.50
# 069
MPN: 84471600
I-PHONE HOLDER
-Carbon- -Version with iPhone compatible dash- -Not for Geneva version- -Applicable for USA, CDN, USA LIGHT-
from £1,130.96
from £1,130.96
# 069
MPN: 84770800
I-PHONE HOLDER
-Alutex- -Version with iPhone compatible dash- -Not for Geneva version- -Not for USA, CDN, GD, USA LIGHT-
from £1,131.25
from £1,131.25
# 069
MPN: 84772700
I-PHONE HOLDER
-Alutex- -Version with iPhone compatible dash- -Not for Geneva version- -Applicable for GD-
from £1,131.25
from £1,131.25
# 069
MPN: 84774800
I-PHONE HOLDER
-Alutex- -Version with iPhone compatible dash- -Not for Geneva version- -Applicable for USA, CDN, USA LIGHT-
from £1,131.25
from £1,131.25
# 069
MPN: 85546600
I-PHONE HOLDER
-Carbon- -Version with iPhone compatible dash- -Not for Geneva version- -Not for USA, CDN, GD, USA LIGHT- -Applicable after depletion of 84059600-
from £1,130.96
from £1,130.96
This part replaces part number 84059600
# 069
MPN: 85547400
I-PHONE HOLDER
-Carbon- -Version with iPhone compatible dash- -Not for Geneva version- -Applicable for GD- -Applicable after depletion of 84250900-
from £2,634.95
from £2,634.95
This part replaces part number 84250900
# 069
MPN: 86463200
I-PHONE HOLDER
-Carbon- -Version with iPhone compatible dash- -Applicable for Geneva version- -Not for USA, CDN, GD, USA LIGHT-
# 069
MPN: 86463300
I-PHONE HOLDER
-Alutex- -Version with iPhone compatible dash- -Applicable for Geneva version- -Not for USA, CDN, GD, USA LIGHT-
# 069
MPN: 86463400
I-PHONE HOLDER
-Soft black paint- -Standard- -Version with iPhone compatible dash- -Applicable for Geneva version- -Not for USA, CDN, GD, USA LIGHT-
from £371.77
from £371.77
# 069
MPN: 86487900
I-PHONE HOLDER
-Soft black paint- -Standard- -Version with iPhone compatible dash- -Applicable for Geneva version- -Applicable for GD-
from £356.56
from £356.56
# 069
MPN: 86489200
I-PHONE HOLDER
-Carbon- -Version with iPhone compatible dash- -Applicable for Geneva version- -Applicable for GD-
# 069
MPN: 86489700
I-PHONE HOLDER
-Alutex- -Version with iPhone compatible dash- -Applicable for Geneva version- -Applicable for GD-
# 069
MPN: 86521700
I-PHONE HOLDER
-Carbon- -Version with iPhone compatible dash- -Applicable for Geneva version- -Applicable for USA, CDN, USA LIGHT-
from £1,130.96
from £1,130.96
# 069
MPN: 86521800
I-PHONE HOLDER
-Alutex- -Version with iPhone compatible dash- -Applicable for Geneva version- -Applicable for USA, CDN, USA LIGHT-
from £1,131.25
from £1,131.25
# 069
MPN: 86521900
I-PHONE HOLDER
-Soft black paint- -Standard- -Version with iPhone compatible dash- -Applicable for Geneva version- -Applicable for USA, CDN, USA LIGHT-
from £356.56
from £356.56
# 070
MPN: 84358300
ADHESIVE DECAL KIT
-Version with passenger display-
from £13.73
from £13.73
# 071
MPN: 83801400
DISPLAY COVER
-Version with passenger display- -Not for GD-
from £25.16
from £25.16
# 071
MPN: 83930300
DISPLAY COVER
-Version with passenger display- -Applicable for GD-
from £30.43
from £30.43
# 072
MPN: 83801500
DISPLAY GLASS
-Version with passenger display- -Not for GD-
from £48.24
from £48.24
# 072
MPN: 83930400
DISPLAY GLASS
-Version with passenger display- -Applicable for GD-
from £50.49
from £50.49
# 073
MPN: 85691900
SCREW
-M5 X 8-
from £0.53
from £0.53
# 074
MPN: 85691900
SCREW
-M5 X 8-
from £0.52
from £0.52
# 075
MPN: 12647624
WASHER
from £0.52
from £0.52
This part replaces part number 12647611
# 076
MPN: 67934100
GASKET
from £0.58
from £0.58
# 077
MPN: 81994100
WINDSCREEN DEFROSTER
-Not for Geneva version- -Not for GD-
from £554.21
from £554.21
# 077
MPN: 83925400
WINDSCREEN DEFROSTER
-Not for Geneva version- -Applicable for GD-
from £576.08
from £576.08
# 077
MPN: 86345500
WINDSCREEN DEFROSTER
-Applicable for Geneva version- -Not for GD-
from £554.21
from £554.21
# 077
MPN: 86483400
WINDSCREEN DEFROSTER
-Applicable for Geneva version- -Applicable for GD-
from £576.08
from £576.08
# 078
MPN: 81994000
WINDSCREEN DEFROSTER GASKET
from £7.47
from £7.47
# 079
MPN: 82526200
CENTRE DASHBOARD MOUNTING BRACKET
from £6.99
from £6.99
# 080
MPN: 82526400
RH DASHBOARD MOUNTING BRACKET
from £6.99
from £6.99
# 081
MPN: 82526500
LH DASHBOARD MOUNTING BRACKET
from £6.99
from £6.99
# 082
MPN: 83888200
RH BRACKET
from £8.82
from £8.82
# 083
MPN: 83888300
LH BRACKET
from £8.82
from £8.82
# 084
MPN: 85691900
SCREW
-M5 X 8-
from £0.51
from £0.51
# 085
MPN: 82539400
ADAPTOR FOR TWEETER
from £1.80
from £1.80
# 086
MPN: 83996600
SCREW
from £0.47
from £0.47
# 087
MPN: 68700200
CLIP
from £2.16
from £2.16
# 087
MPN: 68700800
CLIP
from £0.52
from £0.52
# 088
MPN: 86346700
CAN BOX FASTENER BRACKET
-Applicable for Geneva version-
from £11.14
from £11.14
# 089
MPN: 80613900
RH DOOR PANEL DEFROSTER CONNECTOR
Supersession
Supersession
# 090
MPN: 80614000
LH DOOR PANEL DEFROSTER CONNECTOR
Supersession
Supersession
# 091
MPN: 86458000
60 YEARS BADGE
-Applicable for USA- -Applicable up to Ass. No. 126228-
from £55.91
from £55.91
# 092
MPN: 16101711
NUT
-Applicable for USA- -Applicable up to Ass. No. 126228-
from £0.47
from £0.47
This part replaces part number 16101715
# 093
MPN: 12639401
WASHER
-Applicable for USA- -Applicable up to Ass. No. 126228-
from £0.54
from £0.54
-part-diagram-0125.webp "FERRARI FF (EUROPE) GLOVE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0126.webp "FERRARI FF (EUROPE) AIRBAGS PARTS DIAGRAM")
-part-diagram-0127.webp "FERRARI FF (EUROPE) DASHBOARD AND TUNNEL INSTRUMENTS PARTS DIAGRAM")
-part-diagram-0128.webp "FERRARI FF (EUROPE) HEADLIGHTS AND TAILLIGHTS PARTS DIAGRAM")
-part-diagram-0129.webp "FERRARI FF (EUROPE) SHIELDS - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0130.webp "FERRARI FF (EUROPE) WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-0131.webp "FERRARI FF (EUROPE) MAIN WIRING HARNESSES PARTS DIAGRAM")
-part-diagram-0132.webp "FERRARI FF (EUROPE) VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-0133.webp "FERRARI FF (EUROPE) ELECTRONIC MANAGEMENT (SUSPENSION) PARTS DIAGRAM")
-part-diagram-0134.webp "FERRARI FF (EUROPE) VEHICLE ECUS PARTS DIAGRAM")
-part-diagram-0135.webp "FERRARI FF (EUROPE) ANTITHEFT SYSTEM PARTS DIAGRAM")
-part-diagram-0136.webp "FERRARI FF (EUROPE) INFOTAINMENT SYSTEM PARTS DIAGRAM")
-part-diagram-0137.webp "FERRARI FF (EUROPE) INFOTAINMENT SYSTEM PARTS DIAGRAM")
-part-diagram-0138.webp "FERRARI FF (EUROPE) AUDIO SPEAKER SYSTEM PARTS DIAGRAM")
-part-diagram-0139.webp "FERRARI FF (EUROPE) ADHESIVE LABELS AND PLAQUES PARTS DIAGRAM")
-part-diagram-0999.webp "FERRARI FF (EUROPE) COLOUR CODES PARTS DIAGRAM")
-part-diagram-0000.webp "FERRARI FF (EUROPE) SPARE ASSEMBLY UNITS PARTS DIAGRAM")
-part-diagram-0001.webp "FERRARI FF (EUROPE) CRANKCASE PARTS DIAGRAM")
-part-diagram-0002.webp "FERRARI FF (EUROPE) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-0003.webp "FERRARI FF (EUROPE) RIGHT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0004.webp "FERRARI FF (EUROPE) LEFT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0005.webp "FERRARI FF (EUROPE) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")
-part-diagram-0006.webp "FERRARI FF (EUROPE) TIMING SYSTEM - DRIVE PARTS DIAGRAM")
-part-diagram-0007.webp "FERRARI FF (EUROPE) INJECTION - IGNITION SYSTEM PARTS DIAGRAM")
-part-diagram-0008.webp "FERRARI FF (EUROPE) SECONDARY AIR SYSTEM PARTS DIAGRAM")
-part-diagram-0009.webp "FERRARI FF (EUROPE) FUEL SYSTEM PUMPS AND PIPES PARTS DIAGRAM")
-part-diagram-0010.webp "FERRARI FF (EUROPE) FUEL TANKS AND FILLER NECK PARTS DIAGRAM")
-part-diagram-0011.webp "FERRARI FF (EUROPE) EVAPORATIVE EMISSIONS CONTROL SYSTEM PARTS DIAGRAM")
-part-diagram-0012.webp "FERRARI FF (EUROPE) INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-0013.webp "FERRARI FF (EUROPE) AIR INTAKE PARTS DIAGRAM")
-part-diagram-0014.webp "FERRARI FF (EUROPE) PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS PARTS DIAGRAM")
-part-diagram-0015.webp "FERRARI FF (EUROPE) SILENCERS PARTS DIAGRAM")
-part-diagram-0016.webp "FERRARI FF (EUROPE) GEARBOX OIL LUBRICATION AND COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-0017.webp "FERRARI FF (EUROPE) LUBRICATION SYSTEM: TANK PARTS DIAGRAM")
-part-diagram-0018.webp "FERRARI FF (EUROPE) COOLING - WATER / OIL PUMP PARTS DIAGRAM")
-part-diagram-0019.webp "FERRARI FF (EUROPE) COOLING - HEADER TANK AND PIPES PARTS DIAGRAM")
-part-diagram-0020.webp "FERRARI FF (EUROPE) COOLING - RADIATORS AND AIR DUCTS PARTS DIAGRAM")
-part-diagram-0021.webp "FERRARI FF (EUROPE) TRANSMISSION HOUSING PARTS DIAGRAM")
-part-diagram-0022.webp "FERRARI FF (EUROPE) TRANSMISSION PIPE PARTS DIAGRAM")
-part-diagram-0023.webp "FERRARI FF (EUROPE) COMPLETE PEDAL BOARD ASSEMBLY PARTS DIAGRAM")
-part-diagram-0024.webp "FERRARI FF (EUROPE) GEARBOX HOUSING PARTS DIAGRAM")
-part-diagram-0025.webp "FERRARI FF (EUROPE) GEARBOX REPAIR KIT PARTS DIAGRAM")
-part-diagram-0026.webp "FERRARI FF (EUROPE) PTU SYSTEM PARTS DIAGRAM")
-part-diagram-0027.webp "FERRARI FF (EUROPE) PTU REPAIR KIT PARTS DIAGRAM")
-part-diagram-0028.webp "FERRARI FF (EUROPE) POWER STEERING SYSTEM PARTS DIAGRAM")
-part-diagram-0029.webp "FERRARI FF (EUROPE) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0030.webp "FERRARI FF (EUROPE) FRONT BRAKE CALLIPERS PARTS DIAGRAM")
-part-diagram-0031.webp "FERRARI FF (EUROPE) REAR BRAKE CALLIPERS PARTS DIAGRAM")
-part-diagram-0032.webp "FERRARI FF (EUROPE) PARKING BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-0033.webp "FERRARI FF (EUROPE) HYDRAULIC POWER STEERING BOX PARTS DIAGRAM")
-part-diagram-0034.webp "FERRARI FF (EUROPE) STEERING CONTROL PARTS DIAGRAM")
-part-diagram-0035.webp "FERRARI FF (EUROPE) POWER STEERING PUMP AND RESERVOIR PARTS DIAGRAM")
-part-diagram-0036.webp "FERRARI FF (EUROPE) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0037.webp "FERRARI FF (EUROPE) FRONT SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0038.webp "FERRARI FF (EUROPE) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0039.webp "FERRARI FF (EUROPE) REAR SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0040.webp "FERRARI FF (EUROPE) WHEELS PARTS DIAGRAM")
-part-diagram-0041.webp "FERRARI FF (EUROPE) TYRE PRESSURE MONITORING SYSTEM PARTS DIAGRAM")
-part-diagram-0042.webp "FERRARI FF (EUROPE) VEHICLE LIFT SYSTEM PARTS DIAGRAM")
-part-diagram-0043.webp "FERRARI FF (EUROPE) BATTERY PARTS DIAGRAM")
-part-diagram-0044.webp "FERRARI FF (EUROPE) ALTERNATOR - STARTER MOTOR PARTS DIAGRAM")
-part-diagram-0045.webp "FERRARI FF (EUROPE) AC SYSTEM COMPRESSOR PARTS DIAGRAM")
-part-diagram-0046.webp "FERRARI FF (EUROPE) AC SYSTEM - WATER AND FREON PARTS DIAGRAM")
-part-diagram-0047.webp "FERRARI FF (EUROPE) EVAPORATOR UNIT PARTS DIAGRAM")
-part-diagram-0048.webp "FERRARI FF (EUROPE) DASHBOARD AIR DUCTS PARTS DIAGRAM")
-part-diagram-0049.webp "FERRARI FF (EUROPE) TOOLS AND ACCESSORIES PROVIDED WITH VEHICLE PARTS DIAGRAM")
-part-diagram-0100.webp "FERRARI FF (EUROPE) BODYSHELL - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0101.webp "FERRARI FF (EUROPE) GREENHOUSE PARTS DIAGRAM")
-part-diagram-0102.webp "FERRARI FF (EUROPE) STRUCTURES AND ELEMENTS, FRONT OF VEHICLE PARTS DIAGRAM")
-part-diagram-0103.webp "FERRARI FF (EUROPE) STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE PARTS DIAGRAM")
-part-diagram-0104.webp "FERRARI FF (EUROPE) STRUCTURES AND ELEMENTS, REAR OF VEHICLE PARTS DIAGRAM")
-part-diagram-0105.webp "FERRARI FF (EUROPE) CHASSIS COMPLETION PARTS DIAGRAM")
-part-diagram-0106.webp "FERRARI FF (EUROPE) FLAT UNDERTRAY AND WHEELHOUSES PARTS DIAGRAM")
-part-diagram-0107.webp "FERRARI FF (EUROPE) INSULATION PARTS DIAGRAM")
-part-diagram-0108.webp "FERRARI FF (EUROPE) PASSENGER COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0109.webp "FERRARI FF (EUROPE) LUGGAGE COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0110.webp "FERRARI FF (EUROPE) HEADLINER TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0111.webp "FERRARI FF (EUROPE) FRONT LID AND OPENING MECHANISM PARTS DIAGRAM")
-part-diagram-0112.webp "FERRARI FF (EUROPE) REAR LID AND OPENING MECHANISM PARTS DIAGRAM")
-part-diagram-0113.webp "FERRARI FF (EUROPE) FUEL FILLER FLAP AND CONTROLS PARTS DIAGRAM")
-part-diagram-0114.webp "FERRARI FF (EUROPE) DOORS - SUBSTRUCTURE AND TRIM PARTS DIAGRAM")
-part-diagram-0115.webp "FERRARI FF (EUROPE) DOORS - OPENING MECHANISM AND HINGES PARTS DIAGRAM")
-part-diagram-0116.webp "FERRARI FF (EUROPE) DOORS - POWER WINDOWS AND REAR-VIEW MIRROR PARTS DIAGRAM")
-part-diagram-0117.webp "FERRARI FF (EUROPE) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-0118.webp "FERRARI FF (EUROPE) REAR BUMPER PARTS DIAGRAM")
-part-diagram-0119.webp "FERRARI FF (EUROPE) SCREENS, WINDOWS AND SEALS PARTS DIAGRAM")
-part-diagram-0120.webp "FERRARI FF (EUROPE) FRONT SEAT - SEAT BELTS, GUIDES AND ADJUSTMENT PARTS DIAGRAM")
-part-diagram-0121.webp "FERRARI FF (EUROPE) FRONT SEAT - TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0122.webp "FERRARI FF (EUROPE) REAR SEAT - SEAT BELTS - INTERIOR TRIM PARTS DIAGRAM")
-part-diagram-0123.webp "FERRARI FF (EUROPE) TUNNEL - SUBSTRUCTURE AND ACCESSORIES PARTS DIAGRAM")
