0043 - Battery

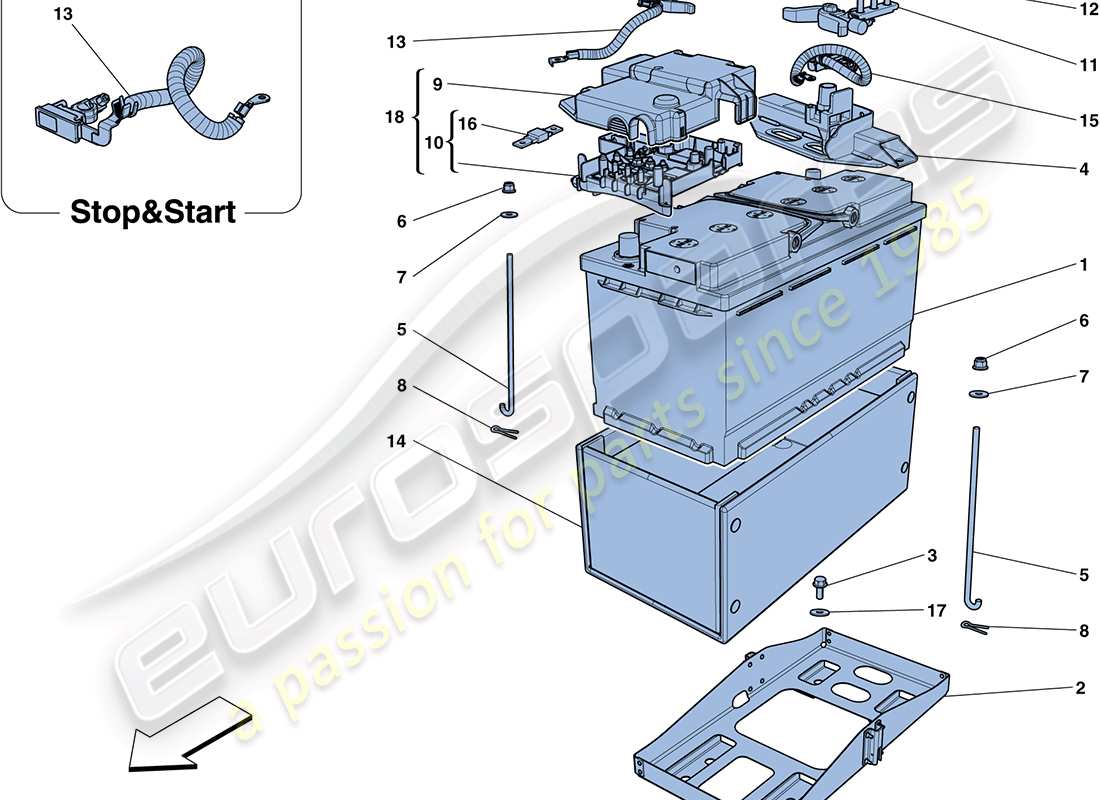

Ferrari FF (Europe) BATTERY Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 256381
Battery
-95 Ah- -Not for Brazil- -Applicable until depletion-
Supersession
Supersession
# 001
MPN: 312187
Battery
-95 Ah- -Applicable from start of production for Brazil- -Applicable after depletion of 256381-
Supersession
Supersession
This part replaces part number 256381
# 002

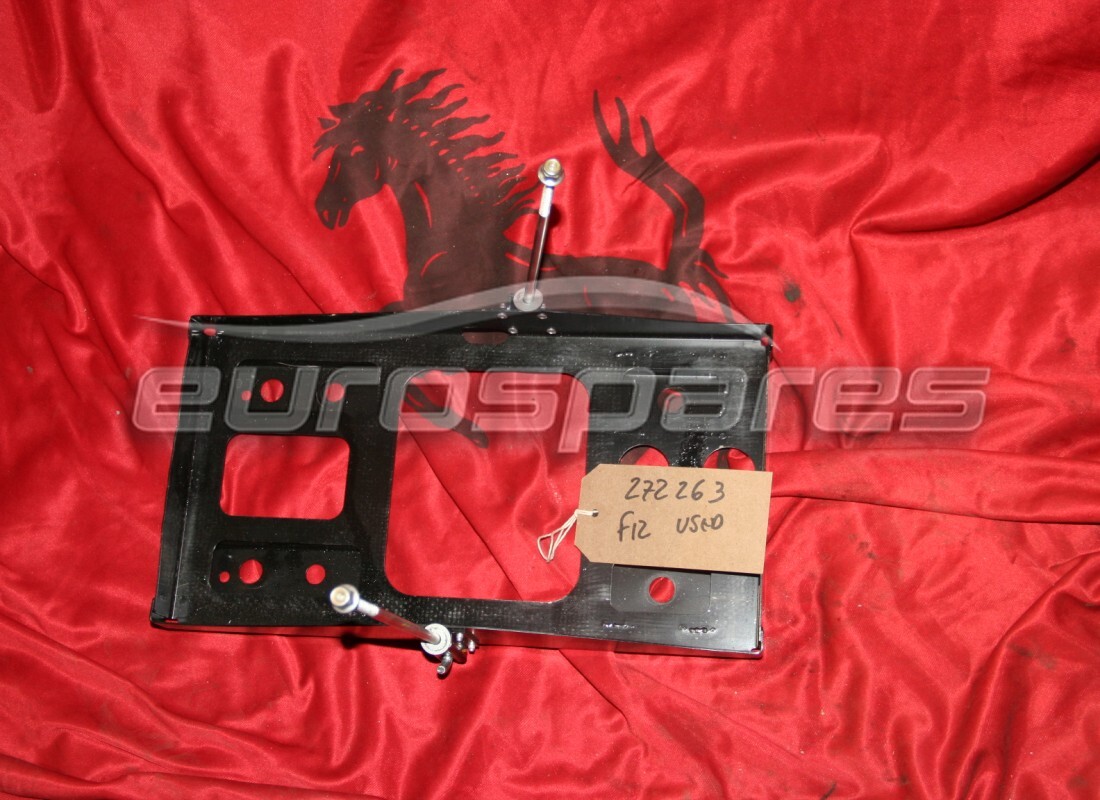

MPN: 272263
BATTERY MOUNTING
from £100.07
from £100.07
# 003
MPN: 16044321
SCREW
-M8 X 55-
from £0.30
from £0.30
# 003
MPN: 16287024
SCREW
-M8 X 16-
from £0.52
from £0.52
# 003
MPN: 16287127
SCREW
-M8 X 20- -No longer supplied, replaced by 16287024 and 16044321-
from £0.47
from £0.47
# 004
MPN: 272464
BATTERY RETAINER COMPLETE WITH NEGATIVE TERMINAL
from £60.21
from £60.21
# 005
MPN: 245743
TIE-ROD
-No longer supplied- -Replaced by 292882-
from £7.77
from £7.77
# 005
MPN: 292882
TIE-ROD
from £4.82
from £4.82
# 006
MPN: 228265
NUT
from £0.54
from £0.54
# 007
MPN: 12643724
WASHER
from £0.53
from £0.53
This part replaces part number 109684 - and 3 more. Click to view details
# 008
MPN: 10795206
SPLIT PIN
from £0.53
from £0.53
# 009
MPN: 251161
COVER
-After depletion, order compl. 291683 ref. 18- -Applicable until depletion-
from £28.94
from £28.94
# 010
MPN: 277359
BATTERY ECU
-No longer supplied- -Replaced by 291682-
from £31.95
from £31.95
# 010
MPN: 291682
BATTERY ECU
-After depletion, order compl. 291683 ref. 18- -Applicable until depletion-
from £31.95
from £31.95
This part replaces part number 277359 which we have in stock - and 1 more. Click to view details
# 011
MPN: 10816794
BATTERY DISCONNECTOR TERMINAL CLAMP WITH LEVER
from £14.52
from £14.52
# 012
MPN: 273382
GROUND CABLE
from £30.65
from £30.65
# 013
MPN: 254264
BATTERY SENSOR
-Applicable for Stop&Start-
from £177.25
from £177.25
# 013
MPN: 274256
BATTERY GROUND / FALSE TERMINAL CABLE
-Not for Stop&Start-
from £22.53
from £22.53
This part replaces part number 273388 - and 1 more. Click to view details
# 014
MPN: 251793

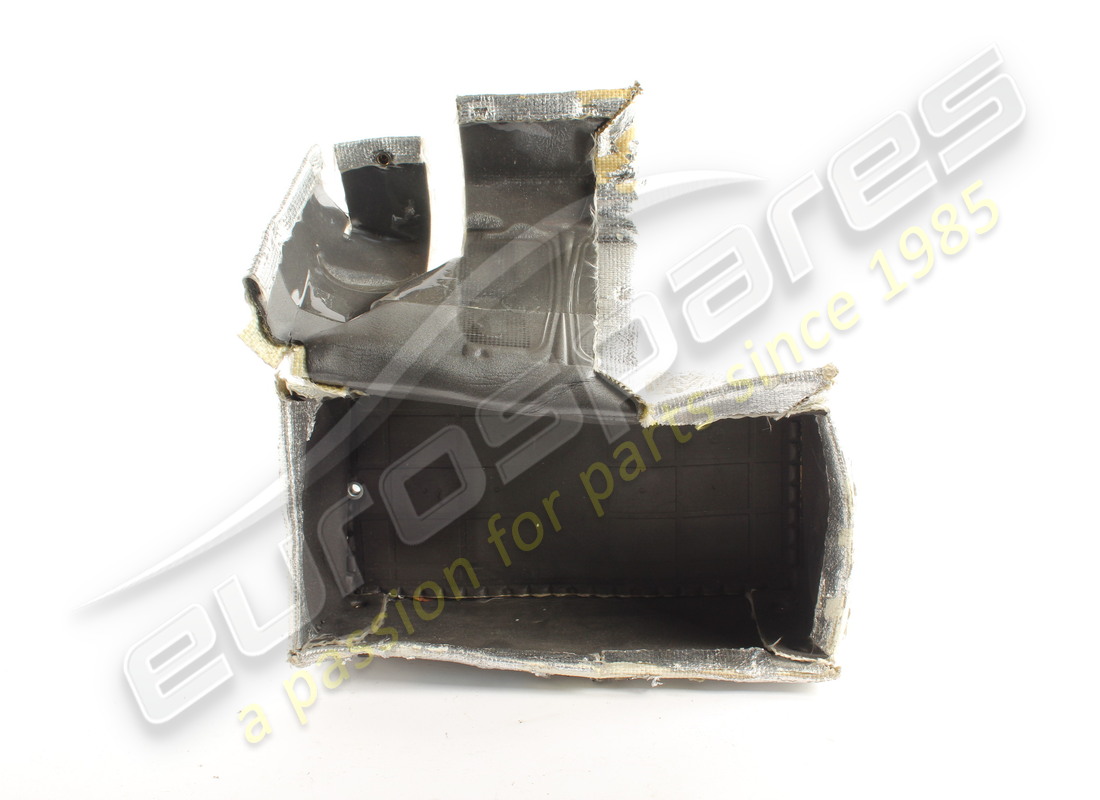

HEAT SHIELD
from £151.43
from £151.43
# 015
MPN: 273569
COMPL. BATTERY MASTER SWITCH
- CHASSIS GROUND CABLE -Applicable for GD-
from £24.60
from £24.60
# 015
MPN: 273942
COMPL. BATTERY MASTER SWITCH
- CHASSIS GROUND CABLE -Not for GD-
from £42.10
from £42.10
# 016
MPN: 278366
FUSE VALVE
-Powerval CAL5-
from £6.77
from £6.77
# 017
MPN: 12646778
WASHER
from £0.53
from £0.53
This part replaces part number 156093
# 018
MPN: 291683
COMPL. BATTERY ECU
from £69.33
from £69.33
This part replaces part number 291682 which we have in stock
